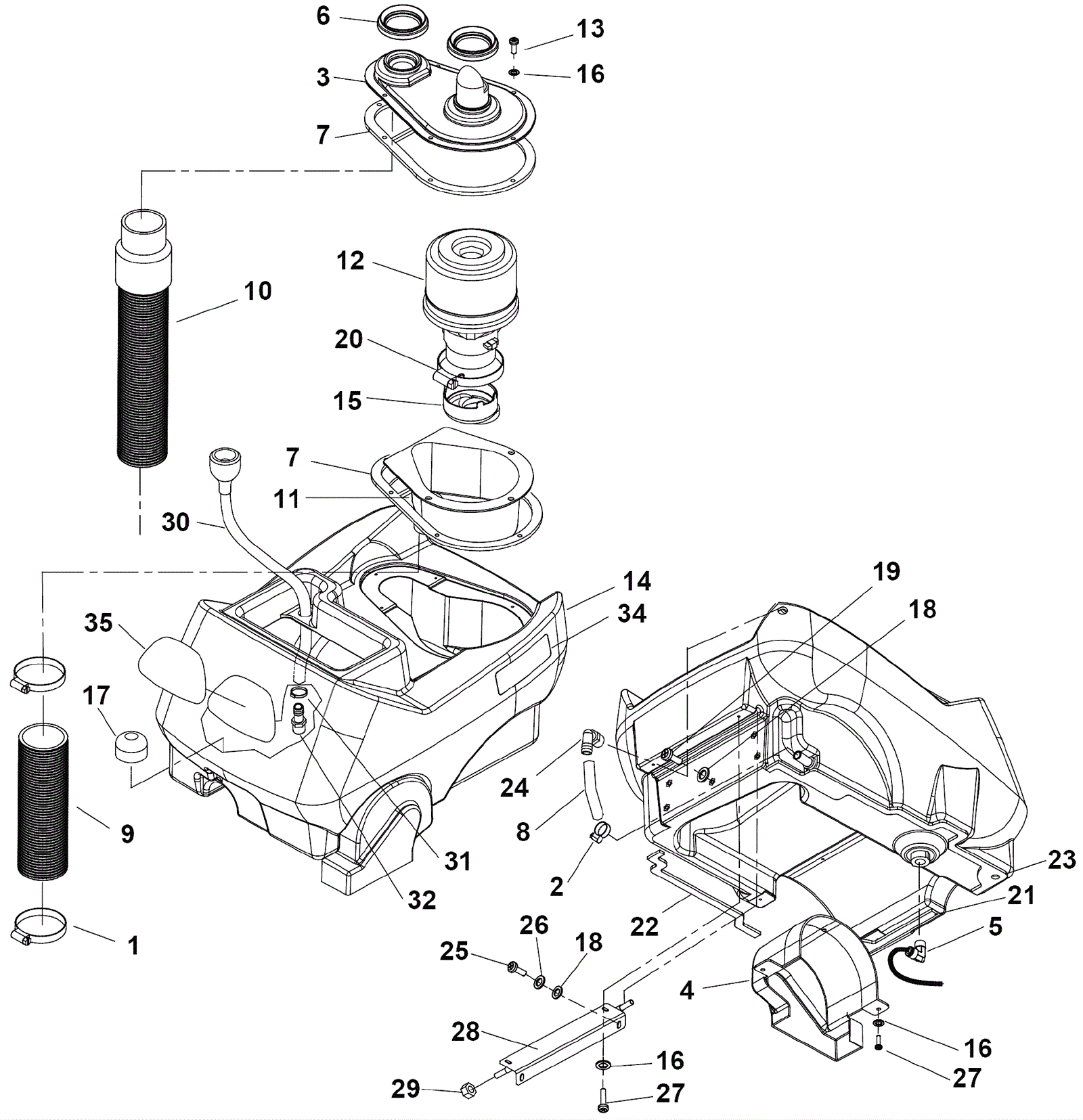

ADMIRAL (GRAY) Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-5693 Hose clamp $2.84 2 ships same day
2 173-1821 Hose clamp $6.39 1 ships same day
3 173-2230 Vacuum motor cover $78.11 1 usually ships 14-22 days
4 173-2231 Belt cover $41.47 1 usually ships 14-22 days
5 189-4166 Elbow 3/8 x 3/8 inch $42.68 1 usually ships 14-27 days
6 173-2233 Gasket $24.20 2 ships same day
7 173-2234 Gasket $48.51 2 ships same day
8 173-2235 Hose 1/2 x 12 inch (clear) $21.12 1 usually ships 14-22 days
9 173-0626 Hose 1 1/2 x 3 inch (black) $24.20 1 usually ships 14-22 days
10 189-4175 Vacuum hose 1 1/2 x 15 1/2 inch $148.92 1 usually ships 14-27 days
11 173-2238 Vacuum motor housing $25.41 1 usually ships 14-22 days
12a 173-2239 120V vacuum motor assembly $742.50 1 usually ships 14-22 days
12b 273-0093 Ametek brush set $60.20 1 usually ships 14-22 days
13 173-0627 Screw 10 x 1 pan head phillips self tapping type b $4.18 6 usually ships 14-22 days
14 173-0628 Solution tank $407.08 1 usually ships 14-22 days
15 173-0629 Cooling vent $50.71 1 usually ships 14-22 days
16 999-0998 Washer #10 flat stainless steel $0.99 10 ships same day
17 189-4181 3/8 inch mesh strainer $40.23 1 ships same day
18 999-0123 Washer 1/4 SAE flat zinc plated $0.99 5 ships same day
19 173-4640 Screw 1/4-20 x .59 pan head phillips stainless steel $2.66 3 usually ships 14-22 days
20 173-2242 Hose clamp $15.07 1 usually ships 14-22 days
21 173-2243 Front left tank gasket $7.32 1 usually ships 14-22 days
22 173-2244 Rear left tank gasket $9.35 1 usually ships 14-22 days
23 173-2245 Right tank gasket (OBSOLETE) $24.20 1 usually ships 14-22 days
24 173-1072 Hosebarb 3/8 x 1/2 inch $9.24 1 usually ships 14-22 days
25 999-0487 Screw 1/4-20 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
26 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
27 173-2454 Screw 10-3/4 polyfast $1.40 4 usually ships 14-22 days
28 273-4757 Pivot handle weldment $99.01 1 usually ships 14-22 days
29 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
30 173-2246 Fill hose assembly $133.10 1 usually ships 14-22 days
31 173-2741 Hose clamp $2.37 1 usually ships 14-22 days
32 173-2247 Hosebarb 1/2 x 3/8 inch $8.47 1 usually ships 14-22 days
34 173-0625 Admiral decal $47.52 1 usually ships 1-5 days
35 273-1167 Exhaust filter box $22.66 1 ships same day
KIT1 173-0631 Solution tank assembly $475.20 1 (includes 5, 7, 14, 17, 21-24) usually ships 14-22 days
