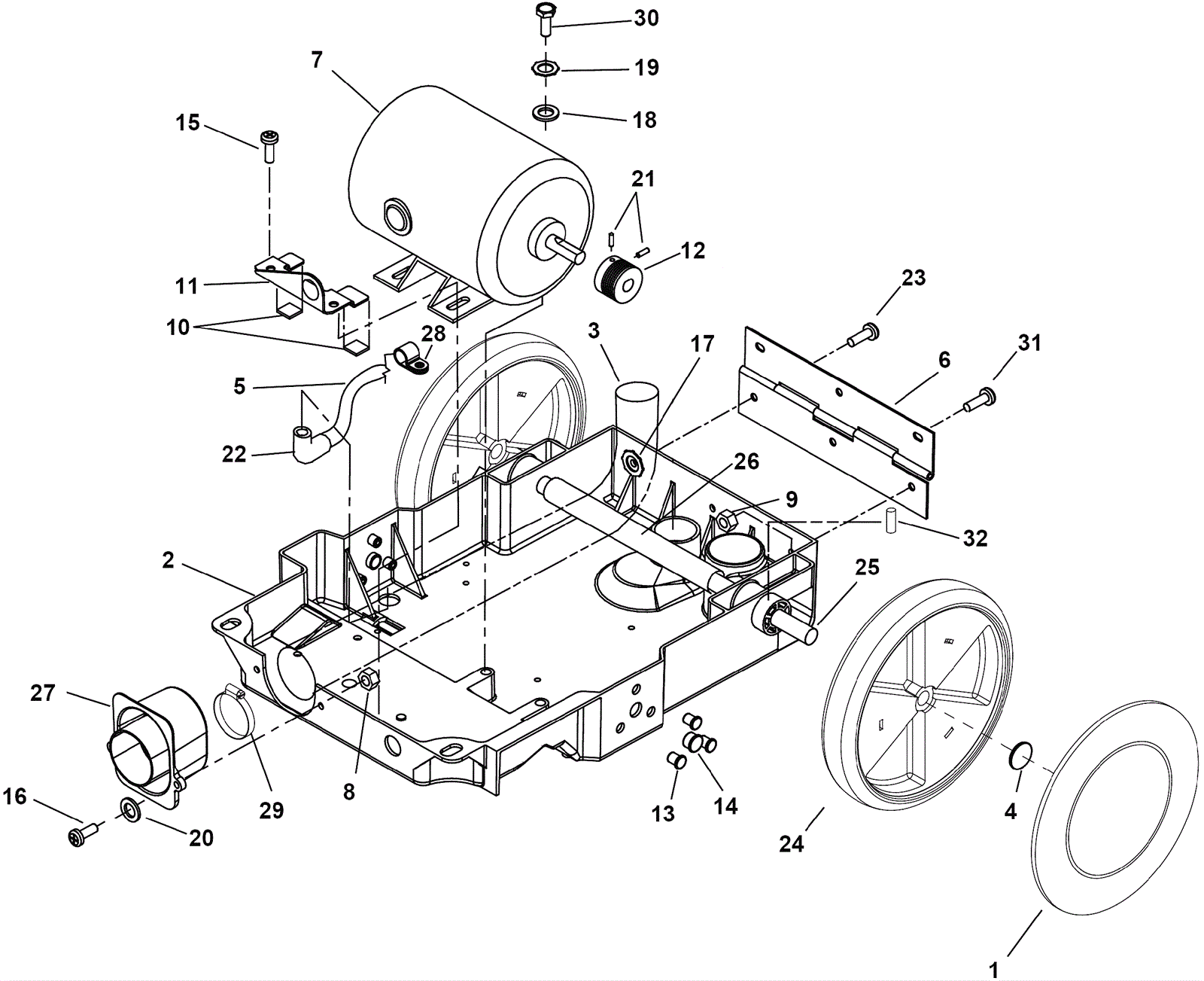

ADMIRAL (GRAY) Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-3529 Hubcap (black) $13.42 2 usually ships 14-22 days
2 173-0617 Frame $273.90 1 usually ships 14-22 days
3 189-4175 Vacuum hose 1 1/2 x 15 1/2 inch $148.92 1 usually ships 14-27 days
4 173-2064 Axle cap $4.95 2 ships same day
6 173-2192 Hinge $128.70 1 usually ships 14-22 days
7 189-4148 120V brush motor assembly $485.10 1 usually ships 14-22 days
8 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
9 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 3 ships same day
10 173-2194 Foam tape $3.96 1 foot usually ships 14-22 days
11 273-4748 Front roller link $4.42 1 usually ships 14-22 days
12 173-2196 Pulley $84.70 1 ships same day
13 173-0622 Plug $0.99 6 usually ships 1-5 days
14 173-2213 Nylon plug (OBSOLETE) $2.11 2 usually ships 14-22 days
15 173-4640 Screw 1/4-20 x .59 pan head phillips stainless steel $2.66 2 usually ships 14-22 days
16 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
17 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 3 ships same day
18 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
19 999-0017 Washer 1/4 external star lock $0.99 2 ships same day
20 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
21 999-1635 Screw 10-32 x 1/4 socket set $0.99 2 ships same day
22 173-2199 90 degree strain relief $1.54 1 usually ships 14-22 days
23 999-0625 Screw 1/4-20 x 1 1/4 pan head phillips stainless steel $1.07 1 ships same day
24 273-4000 10 inch gray wheel $132.02 2 usually ships 14-22 days
25 273-4749 Axle $16.61 1 usually ships 14-22 days
26 173-2201 Heat shrink $10.40 10 feet usually ships 1-5 days
27 189-4247 Frame and tank seal $189.23 1 usually ships 14-27 days
28 173-2094 P clamp $1.40 1 usually ships 1-5 days
29 273-5693 Hose clamp $2.84 1 ships same day
30 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
31 999-0342 Screw 1/4-20 x 1 pan head phillips stainless steel $0.99 2 ships same day
32 173-2206 Roll pin $1.57 1 usually ships 14-22 days
