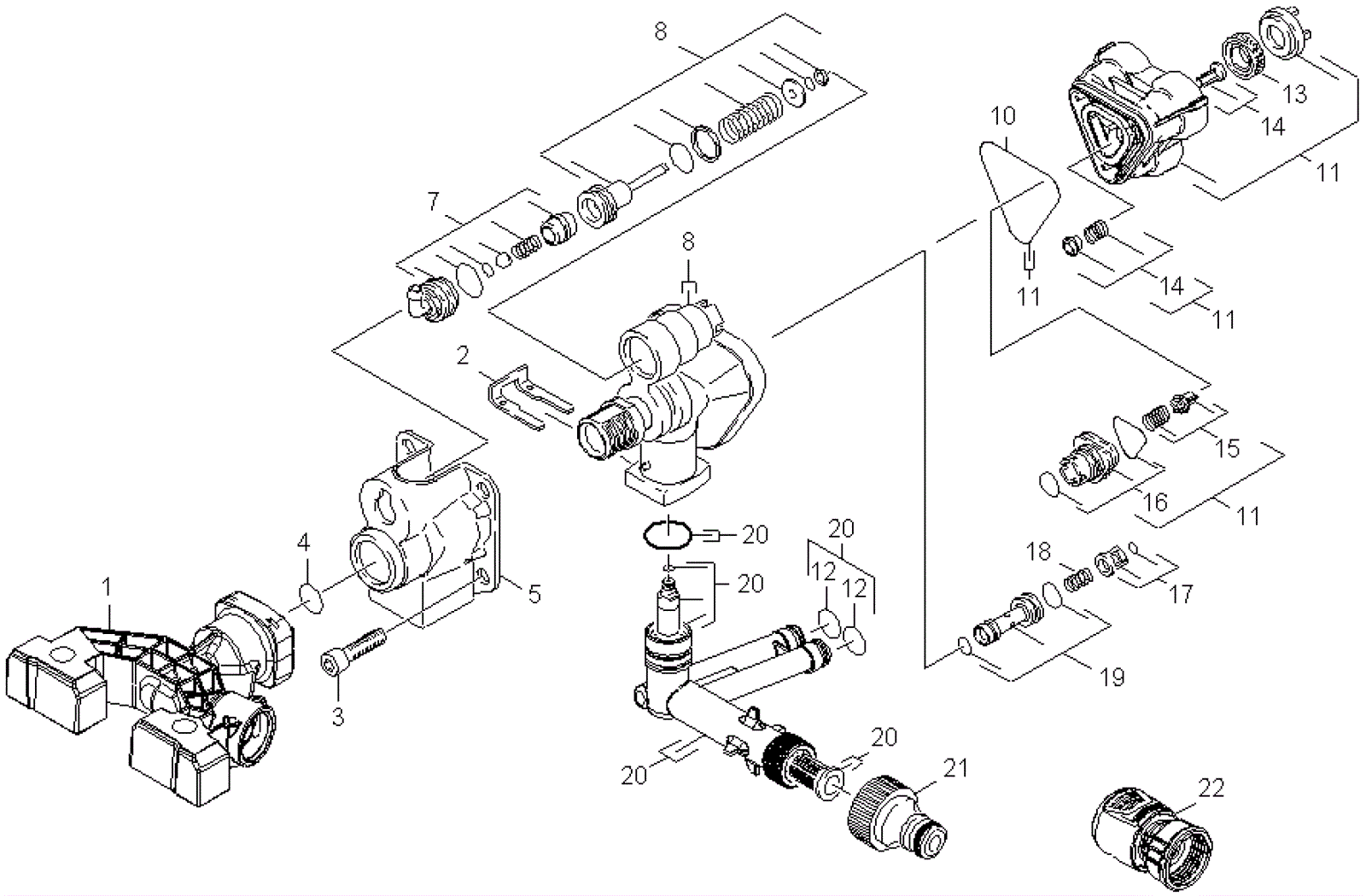

K5.540 Housing Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 273-9596 Delivery side connection Call for price 1 usually ships 7-19 days
2 173-7653 Metal fork $2.15 2 usually ships 7-19 days
3 173-7654 Screw M8 x 55mm class 8.8 $1.50 4 usually ships 7-19 days
4 273-2113 O ring $1.88 1 usually ships 7-19 days
5 173-7655 Cover $33.07 1 usually ships 7-19 days
7 173-7656 Cleaning agents aspiration $8.31 1 usually ships 7-19 days
8 273-9598 Housing and pressure controller $55.83 1 usually ships 7-19 days
10 173-7659 Foam seal $1.41 1 usually ships 7-19 days
11 273-9599 Spare parts set cylinder head $41.57 1 (includes 13-16) usually ships 7-19 days
12 273-2094 O ring seal $7.10 2 usually ships 7-19 days
13 273-9483 Grooved ring $0.99 3 usually ships 7-19 days
14 173-7662 Moulded part assembly $11.87 1 usually ships 7-19 days
15 173-7663 Valve spare part set $8.31 1 usually ships 7-19 days
16 173-7664 Joining piece $11.87 1 usually ships 7-19 days
17 173-7665 Cage assembly $7.12 1 usually ships 7-19 days
18 273-9668 Spring $2.35 1 usually ships 7-19 days
19 173-7667 Injector assembly $17.81 1 usually ships 7-19 days
20 273-9138 Suction set side $16.62 1 (includes 12) usually ships 7-19 days
21 273-8517 Connection $10.89 1 usually ships 7-19 days
22 273-9139 Coupler with aqua decal $8.31 1 usually ships 7-19 days
N/S 273-9597 Pin piece of tube $0.99 2 usually ships 7-19 days
