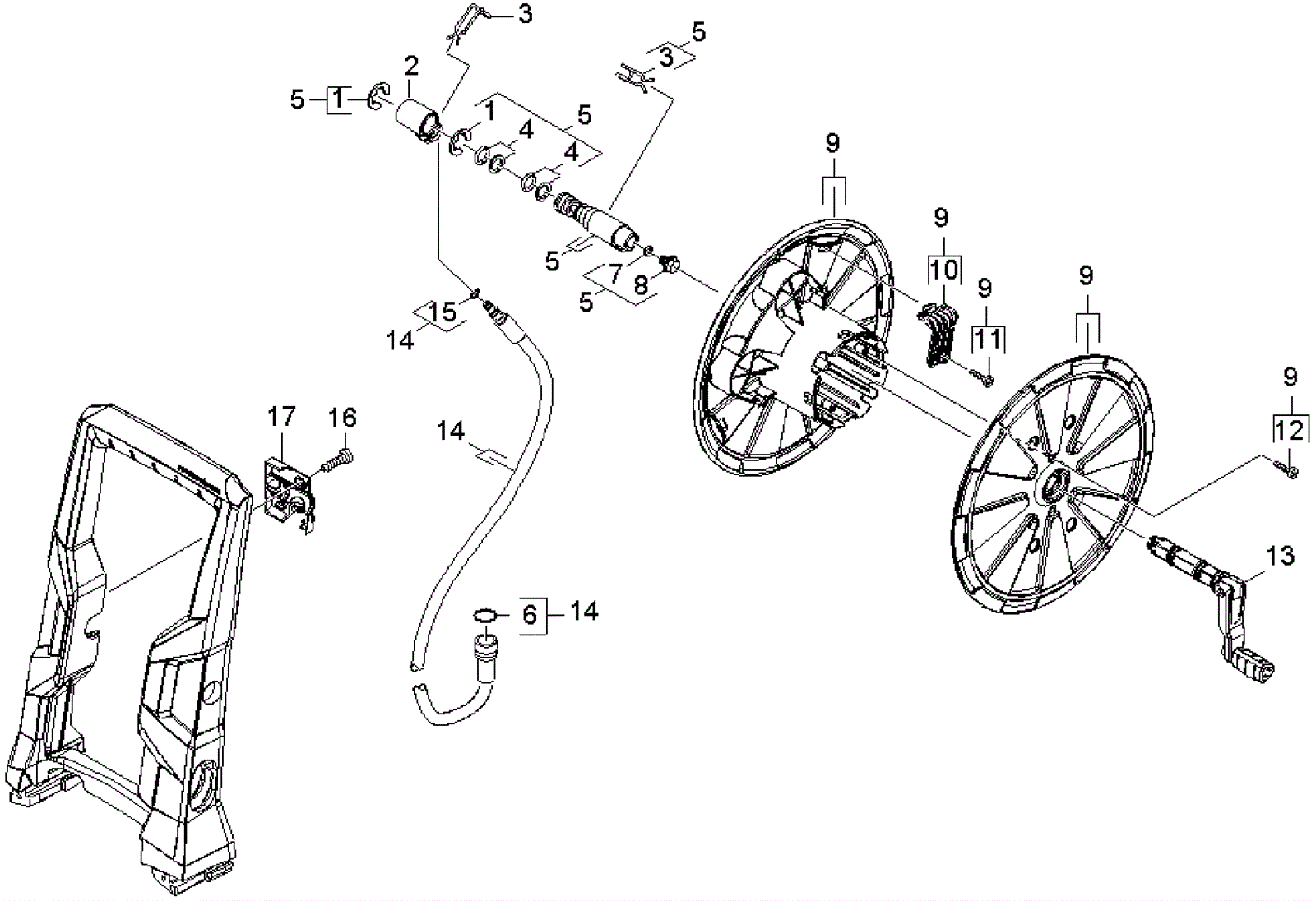

K5.540 Hose Reel Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-6334 Lock washer $1.94 2 usually ships 7-19 days
2 273-9584 Rotary bushing $10.68 1 usually ships 7-19 days
3 273-9585 Clamp $2.35 2 usually ships 7-19 days
4 273-2110 O ring seal $1.21 2 usually ships 7-19 days
5 273-9587 Spare parts set hollow shaft $54.64 1 (includes 1, 3-4, 7-8) usually ships 7-19 days
6 273-2113 O ring $1.88 1 usually ships 7-19 days
7 273-9588 O-ring seal 8 x 2 $2.85 1 usually ships 7-19 days
8 999-1415 Screw M8-1.25 x 12mm hex head stainless steel $1.52 1 ships same day
9 273-9590 Hose reel set $40.38 1 (includes 10-12) usually ships 7-19 days
10 273-9591 Hose clamp $2.18 1 usually ships 7-19 days
11 273-9566 Screw 4x22 $2.35 1 usually ships 7-19 days
12 173-6181 Screw M4 x 22mm $1.57 2 usually ships 1-5 days
13 273-9592 Complete crank $9.49 1 usually ships 7-19 days
14 273-9593 High pressure hose $42.61 1 (includes 6, 15) usually ships 7-19 days
15 273-2110 O ring seal $1.21 2 usually ships 7-19 days
16 273-9410 Screw 4 x 22 hi-lo $1.43 1 usually ships 7-19 days
17 273-9595 Bridge handhold hose reel $5.93 1 usually ships 7-19 days
