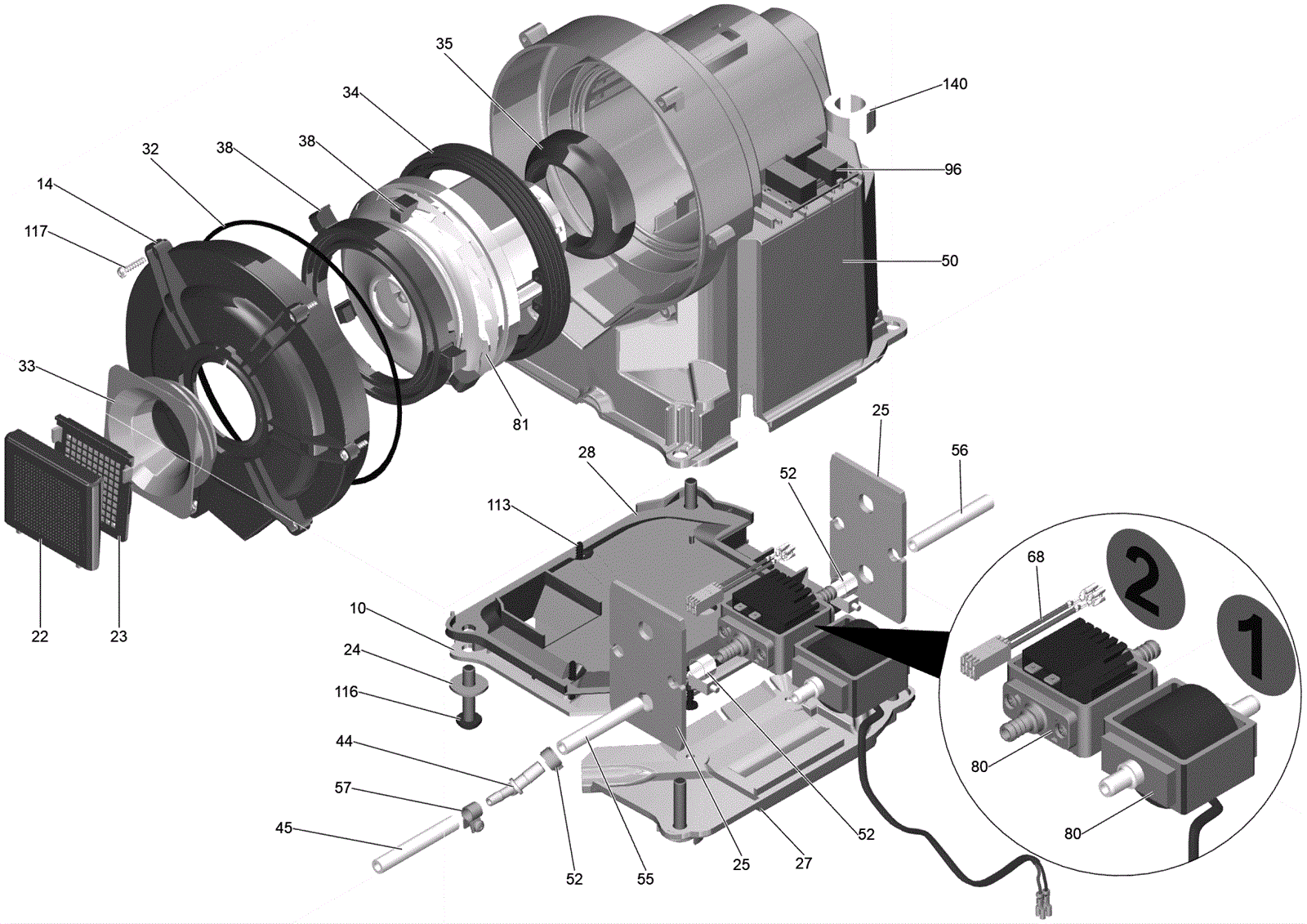

PUZZI 10/1 Internal Assembly

#PartDescriptionPriceReqNotesAvailability
10 273-0375 Covering cap $33.00 1 usually ships 14-22 days
14 173-5832 Turbine cover $20.79 1 usually ships 1-5 days
22 173-5806 Filter $6.24 1 usually ships 14-22 days
23 173-5804 Strainer $17.53 1 usually ships 1-5 days
24 173-5825 Washer M8 $6.89 4 usually ships 1-5 days
25a 173-5842 Pump bearing $21.78 2 (version 1) usually ships 14-22 days
25b 273-0376 Bearing (OBSOLETE) Call for price 2 (version 2) usually ships 14-22 days
27 273-0377 Covering cap (OBSOLETE) Call for price 1 usually ships 14-22 days
28 173-5838 Cover plate $24.13 1 usually ships 14-22 days
32 173-5831 O-ring $7.01 1 usually ships 1-5 days
33 173-5833 Seal $21.78 1 usually ships 1-5 days
34a 173-5829 Seal $22.59 1 (version 1) usually ships 14-22 days
34b 273-0378 Seal (OBSOLETE) Call for price 1 (version 2) usually ships 14-22 days
35a 173-5828 Seal $17.30 1 (version 1) usually ships 14-22 days
35b 273-0379 Vacuum motor seal Call for price 1 (version 2) usually ships 14-22 days
38a 173-5834 Seal $1.65 1 (version 1) usually ships 1-5 days
38b 273-0380 Bearing seal Call for price 1 (version 2) usually ships 14-22 days
44 173-5840 Nipple $10.77 1 usually ships 1-5 days
45 173-5817 Hose $25.89 1 usually ships 14-22 days
50a 173-5827 Turbine housing $176.55 1 (version 1) usually ships 1-5 days
50b 273-0381 Turbine housing (OBSOLETE) Call for price 1 (version 2) usually ships 14-22 days
52 173-5835 Hose clamp $15.07 3 usually ships 14-22 days
55 173-5847 1 inch hose $14.48 1 usually ships 14-22 days
56 173-5809 Hose $16.60 1 usually ships 14-22 days
57 173-5839 Hose clip $6.89 1 usually ships 14-22 days
68 273-0382 Cable (OBSOLETE) Call for price 1 usually ships 14-22 days
80a 173-5371 Pump $457.85 1 (version 1) usually ships 14-22 days
80b 273-0383 115V pump $471.98 1 (version 2) usually ships 14-22 days
81a 173-5370 Vacuum motor $426.07 1 (version 1) usually ships 14-22 days
81b 273-0384 120V motor blower $173.02 1 (version 2) usually ships 14-22 days
96 173-5845 Circuit Board $33.19 1 usually ships 1-5 days
113 273-0977 Screw M5-10.9 x 30mm $3.96 8 usually ships 14-22 days
116 173-5824 Screw M8-1.25 x 40mm $5.53 4 usually ships 1-5 days
117 273-0962 Screw M4-10.9 x 25mm phillips head $3.25 13 usually ships 14-22 days
140 273-0385 Ferrite ring $14.08 1 usually ships 14-22 days
N/S 273-0386 Pump conversion kit (OBSOLETE) Call for price 1 usually ships 14-22 days
