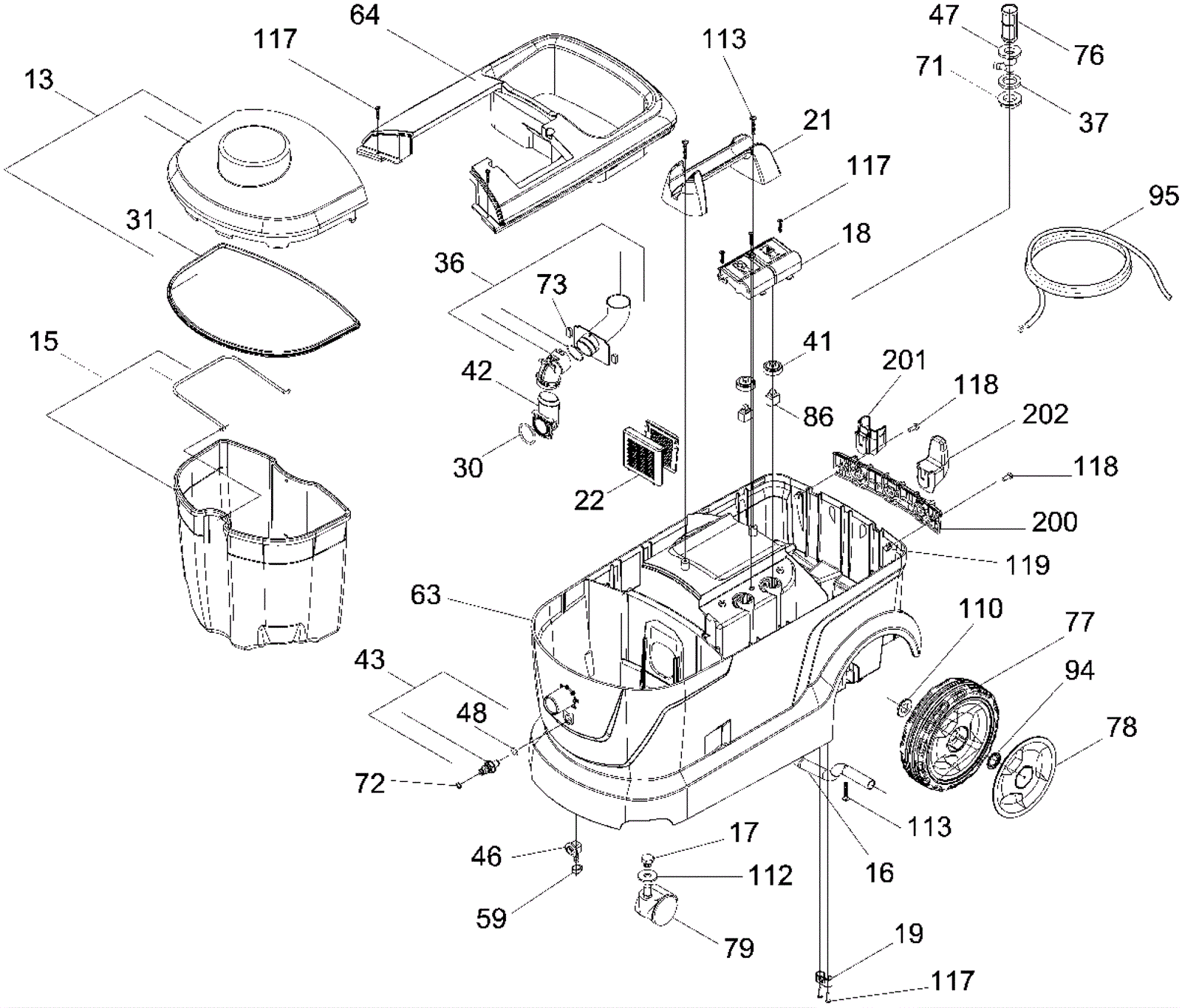

PUZZI 10/1 Body Assembly

#PartDescriptionPriceReqNotesAvailability
13 173-5368 Recovery tank lid $144.77 1 (includes 31) usually ships 14-22 days
15 173-5800 Complete tank assembly $120.05 1 usually ships 14-22 days
16 173-5820 Axle $7.98 1 usually ships 1-5 days
17 173-5823 Bushing $9.54 2 usually ships 14-22 days
18 273-0363 Pushbutton (OBSOLETE) $20.35 1 usually ships 14-22 days
19 273-0364 Retaining bracket cable $1.32 1 usually ships 14-22 days
21 173-5796 Handle $29.15 1 usually ships 14-22 days
22 173-5806 Filter $6.24 1 usually ships 14-22 days
30 273-0365 O-ring $6.94 1 usually ships 14-22 days
31 173-5369 Recovery lid gasket $20.13 1 usually ships 14-22 days
36 173-5798 Elbow assembly $86.52 1 (includes 73) usually ships 14-22 days
37 173-5808 Joint ring $14.36 1 usually ships 14-22 days
41 173-5805 Switch cover $12.24 2 usually ships 14-22 days
42 173-5802 Connector $6.53 1 usually ships 14-22 days
43 173-5814 Nipple $28.37 1 (includes 48) usually ships 14-22 days
46 173-5812 Hose stem $14.36 1 usually ships 14-22 days
47 173-5807 Hose stem $17.53 1 usually ships 1-5 days
48 173-5813 Gasket $1.63 1 usually ships 14-22 days
59 173-5816 Hose band clip $7.12 1 usually ships 14-22 days
63 273-0366 Tank $269.53 1 usually ships 14-22 days
64 273-0367 Funnel (OBSOLETE) Call for price 1 usually ships 14-22 days
71 173-5810 Nut 1/2 hex $5.43 1 usually ships 14-22 days
72 273-0368 O-ring $2.11 1 usually ships 14-22 days
73 173-5799 Fastener $6.24 2 usually ships 14-22 days
76 173-5372 Filter $13.77 1 usually ships 14-22 days
77 273-0369 Wheel $15.62 2 usually ships 14-22 days
78 273-0370 Wheel cap $20.96 2 usually ships 14-22 days
79 173-5819 Castor wheel $35.90 2 usually ships 14-22 days
86 273-4107 Switch $26.84 2 usually ships 14-22 days
94 273-0976 Hub clip $5.50 2 usually ships 14-22 days
95 273-0371 Power cable $147.40 1 usually ships 14-22 days
110 173-5821 Washer M16 $0.99 2 usually ships 14-22 days
112 173-5818 Washer M10 $1.41 2 ships same day
113 273-0977 Screw M5-10.9 x 30mm $3.96 8 usually ships 14-22 days
117 273-0962 Screw M4-10.9 x 25mm phillips head $3.25 13 usually ships 14-22 days
118 273-0372 Screw M5 x 14mm $1.84 2 usually ships 14-22 days
119 173-5438 Nut M5-50 acorn $1.98 2 usually ships 14-22 days
200 273-0373 Accessories holder (OBSOLETE) Call for price 1 usually ships 14-22 days
201 273-0374 Clip $13.18 1 usually ships 14-22 days
202 273-4227 Hook $16.60 1 usually ships 14-22 days
N/S 173-5804 Strainer $17.53 1 usually ships 1-5 days
