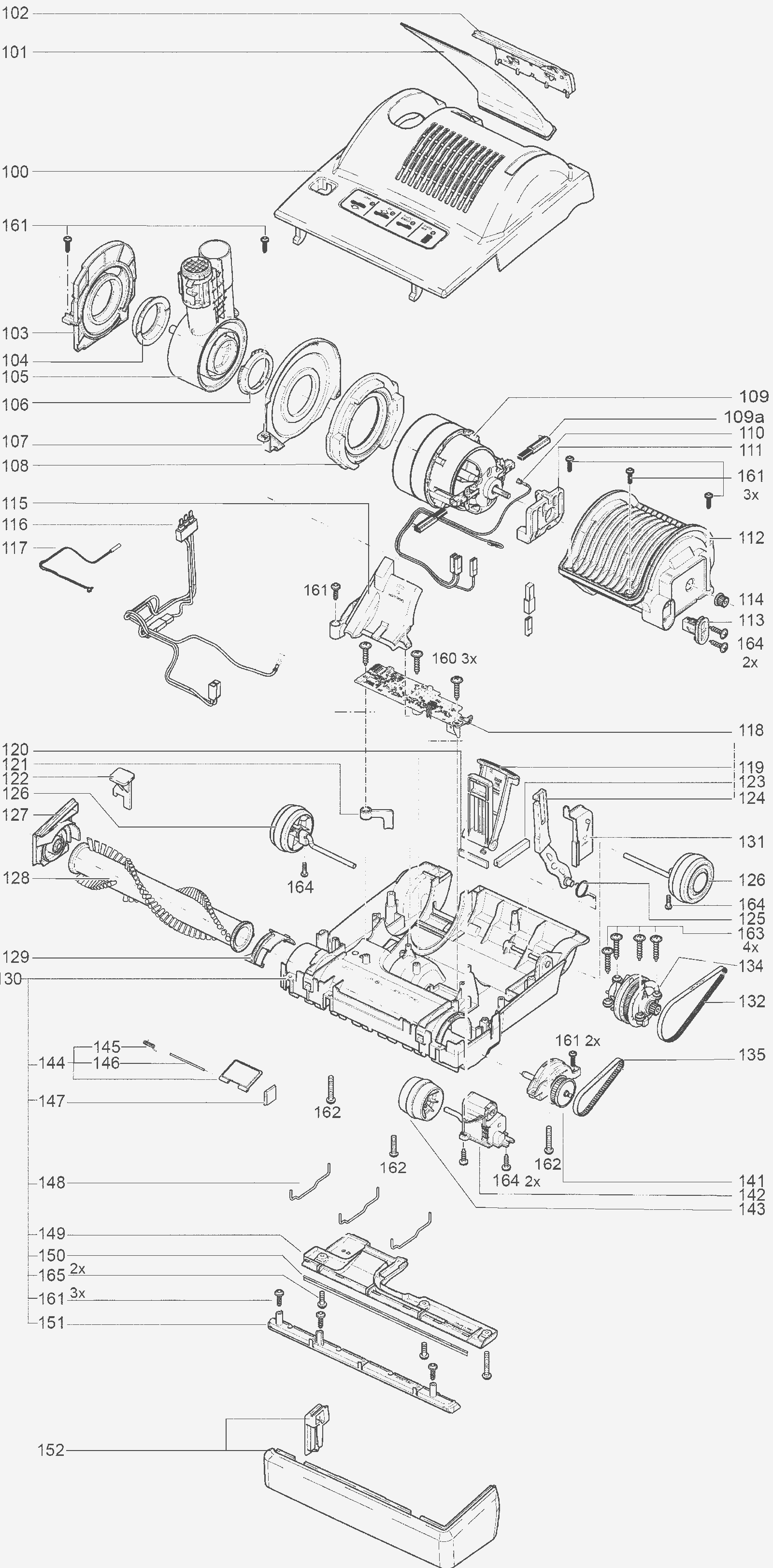

| # | Part | Description |
Req | Notes | Availability |
|---|
100 |
273-3716
|
Power head cover SR XP12 complete (grey) |
1 |
|
|
101 |
273-3699
|
Exhaust filter |
1 |
|
|
102 |
273-3700
|
Exhaust filter cover SR XP gray |
1 |
|
|
103 |
273-3717
|
Swivel neck bearing right hand |
1 |
|
|
104 |
173-2392
|
Sleeve |
1 |
|
|
105 |
273-3718
|
Swivel neck assembly |
1 |
|
|
106 |
173-5248
|
Left side swivel neck bearing |
1 |
|
|
107 |
273-3719
|
Swivel neck support left hand |
1 |
|
|
108 |
273-3720
|
Motor support gasket |
1 |
|
|
109a |
273-3721
|
Vacuum motor 1000 W/120V with cable |
1 |
|
|
109b |
173-4726
|
Carbon brush (pkg of 2) |
1 |
|
|
110 |
273-3722
|
3 wire motor cable |
1 |
|
|
111 |
173-2415
|
Rubber mount |
1 |
|
|
112 |
273-3744
|
Motor housing 3-wire UL-version |
1 |
|
|
113 |
273-3723
|
Belt tightener |
1 |
|
|
114 |
173-5272
|
Motor pulley |
1 |
|
|
115 |
273-3724
|
Cover for air channel |
1 |
|
|
116 |
273-3725
|
3 wire UL swivel neck cable |
1 |
|
|
117 |
273-3726
|
Swivel neck reed switch |
1 |
|
|
118 |
273-3727
|
100-120V PCB power supply / controller |
1 |
|
|
119 |
273-3728
|
Foot pedal SR XP complete (yellow) |
1 |
|
|
120 |
273-3729
|
Felt strip |
1 |
|
|
121 |
273-3730
|
Cable guide |
1 |
|
|
122 |
273-3731
|
Brush roller release button SR XP 12/15 |
1 |
|
|
123 |
273-3732
|
Support motor housing |
1 |
|
|
124 |
273-3733
|
Support lever SR XPN |
1 |
|
|
125 |
173-2418
|
Support spring |
1 |
|
|
126 |
273-3734
|
Axle assembly (black) |
1 |
|
|
127 |
273-9129
|
Right hand bearing block |
1 |
|
|
128a |
173-2403
|
12 inch brush roller |
1 |
|
|
128b |
991-2406
|
12 inch brush roll |
1 |
(NON-OEM) |
|
129 |
273-3735
|
Brush roller right hand release ring with spring |
1 |
|
|
130 |
273-3736
|
Chassis SRXP12 UL-version without bumper |
1 |
(includes 144-151, 161 and 165) |
|
131 |
173-2419
|
Motor pulley cover |
1 |
|
|
132 |
173-8443
|
Belt |
1 |
|
|
134 |
273-3737
|
Motor pulley |
1 |
|
|
135 |
173-2424
|
Belt |
1 |
|
|
141 |
273-3738
|
Bearing block SR XP left hand complete |
1 |
|
|
142 |
173-2411
|
Drive motor with gear box |
1 |
|
|
143 |
173-7619
|
Pile adjustment knob (black) |
1 |
|
|
144 |
273-8776
|
Access door (zinc yellow) |
1 |
|
|
145 |
173-2408
|
Access door spring |
1 |
|
|
146 |
173-2407
|
Access door axle |
1 |
|
|
147 |
273-8775
|
Rubbing plate black |
1 |
|
|
148 |
173-5270
|
Wire tie |
1 |
|
|
149 |
273-3740
|
Rear bottom plate SRXP12 complete (grey black) |
1 |
|
|
150 |
273-0929
|
12 inch sealing strip |
1 |
|
|
151 |
273-1182
|
Front bottom plate |
1 |
|
|
152 |
273-3742
|
Bumper SR XP 12 2 pieces (black) |
1 |
|
|
160 |
273-3743
|
SCREW C 2.9 X 13 |
3 |
|
|
161 |
173-4203
|
Screw M4 x 16mm self-tapping torx |
11 |
|
|
162 |
999-1518
|
Screw M4-.7 x 30mm pan head phillips zinc plated |
3 |
|
|
163 |
273-1151
|
Screw |
4 |
|
|
164 |
173-0007
|
Screw M3-.5 x 13mm |
6 |
|
|
N/S |
273-0939
|
Screw M4-.7 x 12mm with washer |
4 |
|
|
