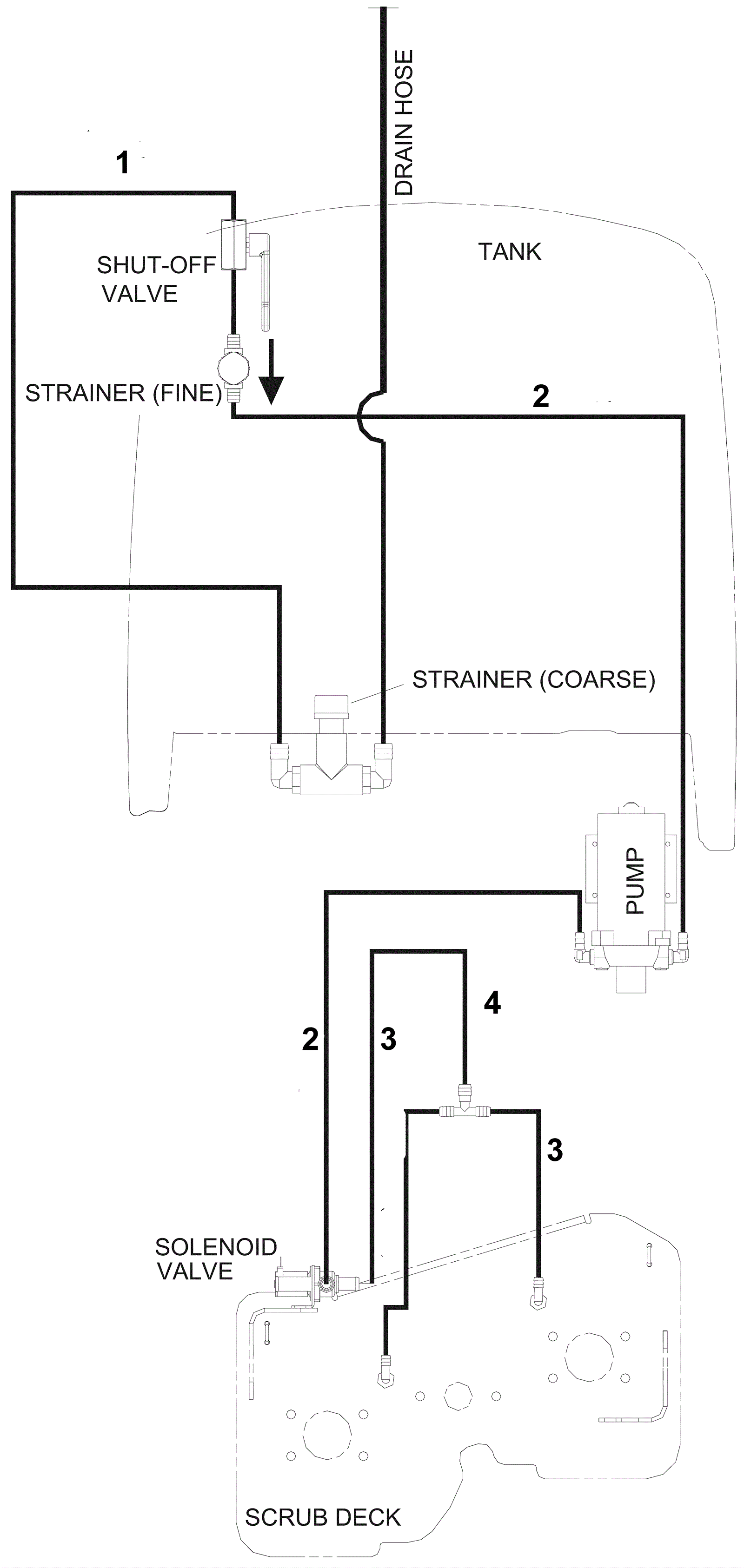

CHARIOT ISCRUB SERIES 2 Solution Hose Connection Diagram - 24 inch Disk - After 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-8322 Wire bound hose 1/2 x 12 inch $10.68 1 ships same day
2 173-9037 Wire bound hose 1/2 x 32 inch $40.30 1 usually ships 7-19 days
3 173-2713 Wire bound hose 3/8 x 8 inch $22.80 1 usually ships 7-19 days
4 173-8326 Wire bound hose 1/2 x 8 inch $29.90 1 ships same day
