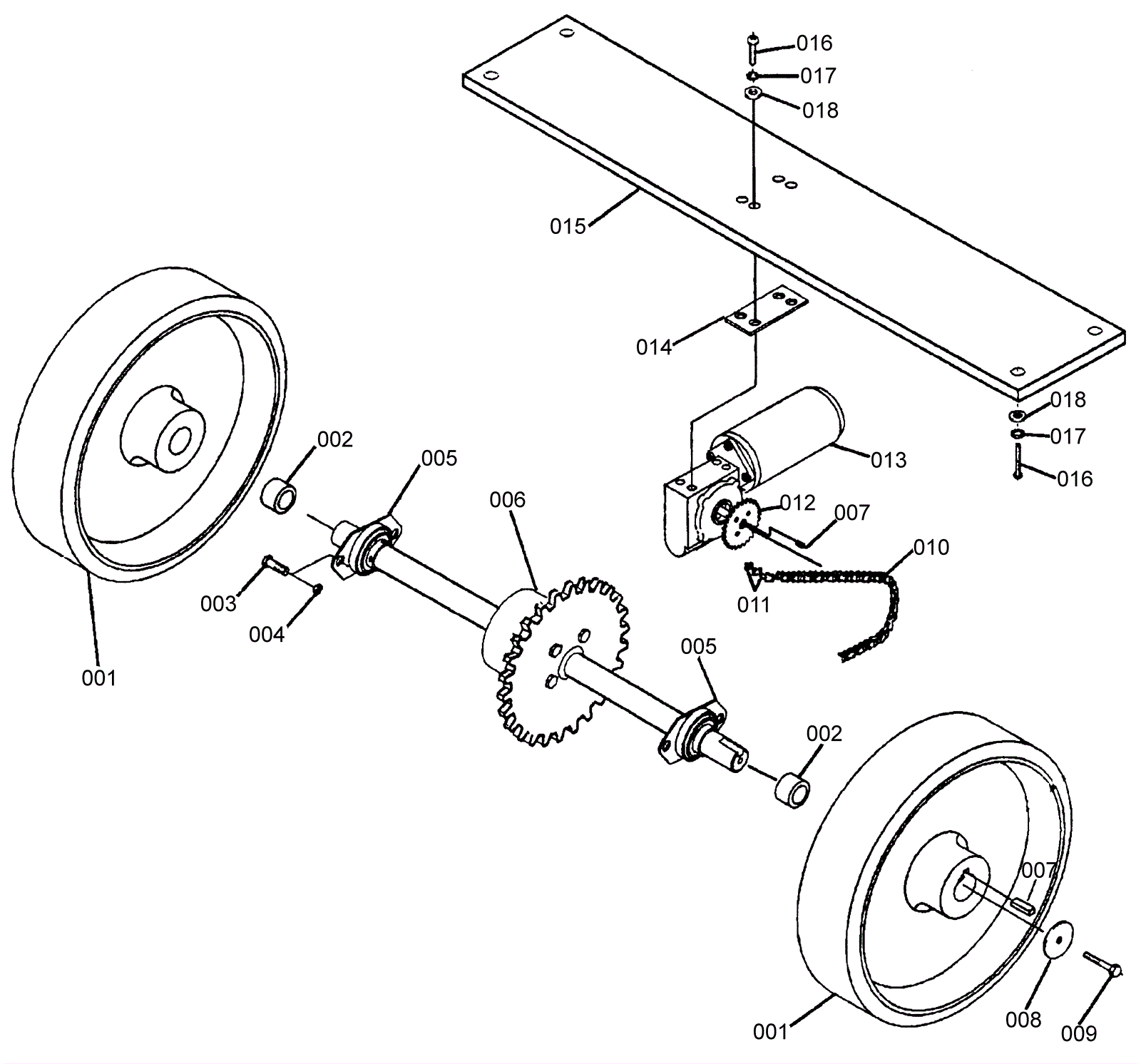

Drive Assembly

#PartDescriptionPriceReqNotesAvailability
001 173-0396 Wheel 10 x 2 1/2 bore $272.80 usually ships 1-5 days
002 173-9818 Axle spacer (OBSOLETE) Call for price usually ships 1-5 days
003 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 ships same day
004 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 ships same day
005 173-9117 Bearing assembly (OBSOLETE) $111.79 usually ships 1-5 days
006 173-9819 Differential (OBSOLETE) $297.48 usually ships 1-5 days
007 173-0225 Squeegee blade 27 inch maize (OBSOLETE) $66.36 usually ships 1-5 days
008 999-0016 Washer 1/4 flat plain finish $0.99 ships same day
009 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 ships same day
010 189-2128 Chain #40 1/2 in pitch x 40 $20.98 usually ships 1-5 days
011 173-1065 Master link #40 1/2 chain $6.55 usually ships 1-5 days
012 173-9119 Sprocket (OBSOLETE) $41.99 usually ships 1-5 days
013 173-9120 Motor (OBSOLETE) $1,304.07 usually ships 1-5 days
014 173-9820 Motor spacer plate (OBSOLETE) Call for price usually ships 1-5 days
015 173-9821 Propel motor plate (OBSOLETE) Call for price usually ships 1-5 days
016 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 ships same day
017 999-0017 Washer 1/4 external star lock $0.99 ships same day
018 999-0123 Washer 1/4 SAE flat zinc plated $0.99 ships same day
