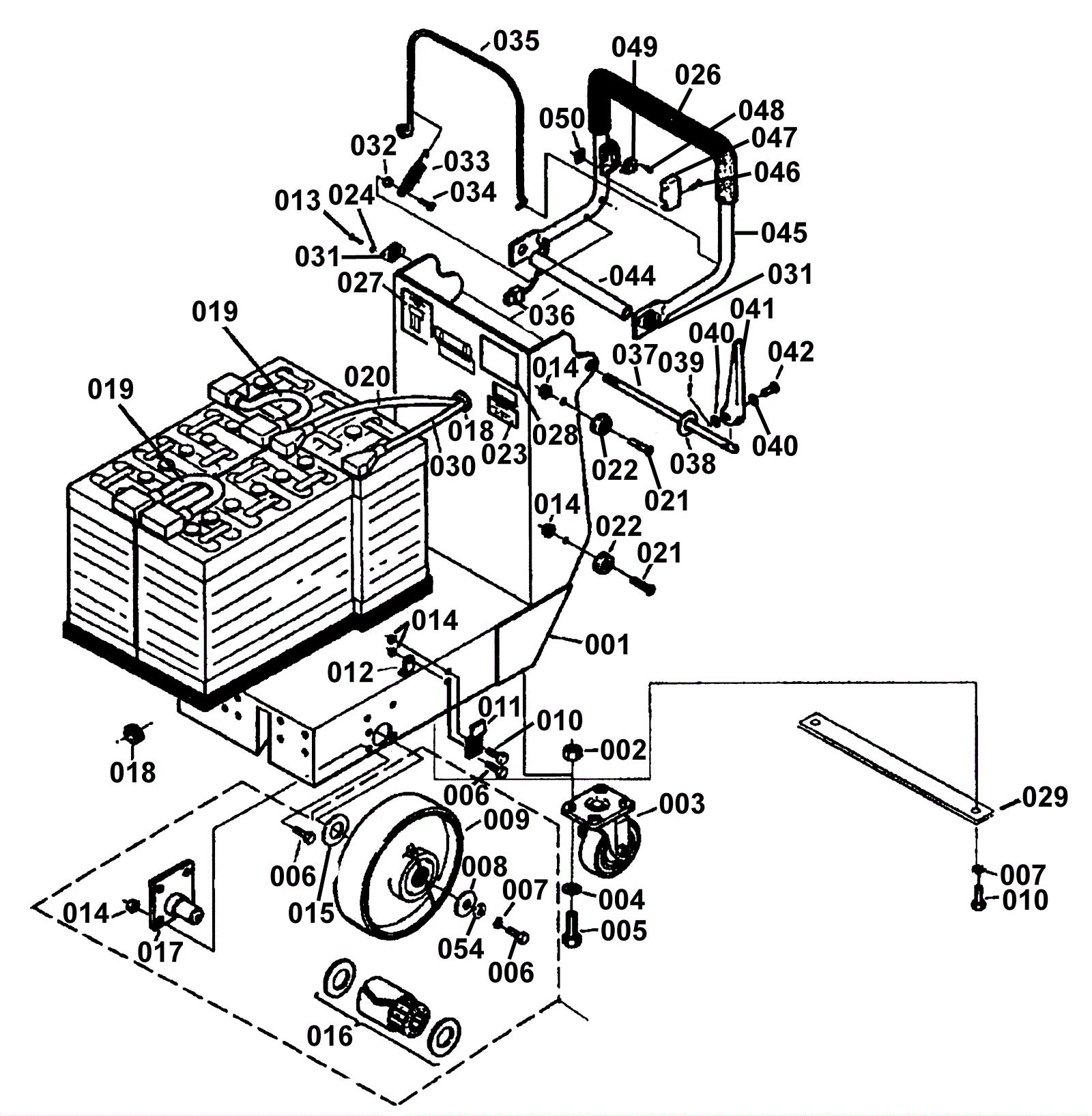

FILTRONIC F22 Chassis

#PartDescriptionPriceReqNotesAvailability
001 173-9801 Frame assmebly (OBSOLETE) Call for price usually ships 1-5 days
002 173-3869 Nut 3/8-16 hex nylock (OBSOLETE) $1.03 usually ships 7-19 days
003 173-0422 4 inch swivel caster wheel $172.70 ships same day
004 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 ships same day
005 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 ships same day
006 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 ships same day
007 999-0017 Washer 1/4 external star lock $0.99 ships same day
008 173-9110 10 inch wheel $248.00 usually ships 1-5 days
008 173-9802 Wheel lock washer (OBSOLETE) $9.31 usually ships 1-5 days
010 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 ships same day
011 173-0424 Battery retainer bracket $41.15 usually ships 1-5 days
012 173-2099 P clamp (OBSOLETE) $1.39 usually ships 7-19 days
013 999-1060 Screw 10-32 x 1/4 pan head phillips stainless steel $0.99 usually ships 1-5 days
014 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 ships same day
015 173-9115 Washer 1 1/4 x 2 1/2 (OBSOLETE) $5.43 usually ships 1-5 days
016 173-9113 Wheel bearing $69.85 usually ships 1-5 days
017 173-9114 Axle $258.50 usually ships 1-5 days
018 173-1891 Grommet $5.50 usually ships 1-5 days
019 189-2105 Clamp style jumper cable (black) $110.06 usually ships 11-24 days
020 189-2110 Cable 4GA (black) x 27 in $79.99 usually ships 1-5 days
021 999-0694 Screw 1/4-20 x 1/2 flat head phillips zinc plated $0.99 ships same day
022 173-0421 Main cover spacer $25.36 usually ships 1-5 days
023 173-9803 Charger warning label (OBSOLETE) Call for price usually ships 1-5 days
024 173-4807 Washer #10 flat pleated (OBSOLETE) $0.99 usually ships 7-19 days
025 999-0123 Washer 1/4 SAE flat zinc plated $0.99 ships same day
026 173-1966 Handle grip (OBSOLETE) $21.32 usually ships 1-5 days
027 173-9804 Battery warning label (OBSOLETE) Call for price usually ships 1-5 days
028a 173-9805 Wiring diagram label (OBSOLETE) Call for price usually ships 1-5 days
028b 173-9806 Wiring diagram label (OBSOLETE) Call for price usually ships 1-5 days
028c 173-9807 Wiring diagram label (OBSOLETE) Call for price usually ships 1-5 days
029 173-9817 Frame brace (OBSOLETE) Call for price usually ships 1-5 days
030 173-1892 Red cable (OBSOLETE) $30.68 usually ships 1-5 days
031 173-5097 Handle adjustment lock $96.80 usually ships 7-19 days
032 173-3412 Cord 1/8 x 12 inch $13.09 usually ships 7-19 days
033 173-0465 Safety switch spring $22.66 usually ships 1-5 days
034 173-0466 Screw 10-32 x 3/4 phillips truss head $3.04 usually ships 1-5 days
035 173-9808 Safety switch handle (OBSOLETE) $88.21 usually ships 1-5 days
036a 173-9116 2 pin connector $5.06 usually ships 1-5 days
036b 173-9125 Female pin (OBSOLETE) $21.04 usually ships 1-5 days
037 173-9810 Handle adjsutment rod (OBSOLETE) $53.41 usually ships 1-5 days
038 999-0187 Washer 1/2 flat plain finish $0.99 ships same day
039 173-1039 Cotter Pin 1/16 x 3/4 $0.99 usually ships 1-5 days
040 999-0998 Washer #10 flat stainless steel $0.99 ships same day
041 173-0418 Handle locking lever $31.90 usually ships 7-19 days
042 173-0419 Clevis pin $8.47 usually ships 7-19 days
043a 173-9811 Instructions card (OBSOLETE) Call for price usually ships 1-5 days
043b 173-9812 Made in USA card (OBSOLETE) Call for price usually ships 1-5 days
044 173-9813 Handle adjustment tube (OBSOLETE) $24.01 usually ships 1-5 days
045a 173-4572 Main handle assembly (OBSOLETE) $236.07 usually ships 1-5 days
045b 173-9814 Propel handle (OBSOLETE) $143.29 usually ships 1-5 days
045c 173-9815 Old style handle assmebly (OBSOLETE) $197.41 usually ships 1-5 days
046 173-0460 Screw 6-32 x 1/4 hex head flat $3.30 usually ships 1-5 days
047 173-0458 Switch cover (OBSOLETE) $242.00 usually ships 7-19 days
048 999-1330 Screw 4-40 x 1/2 pan head stainless steel $0.99 ships same day
049 189-0305 Microswitch $123.95 usually ships 7-19 days
050 173-9816 Switch mount nut plate (OBSOLETE) Call for price usually ships 1-5 days
