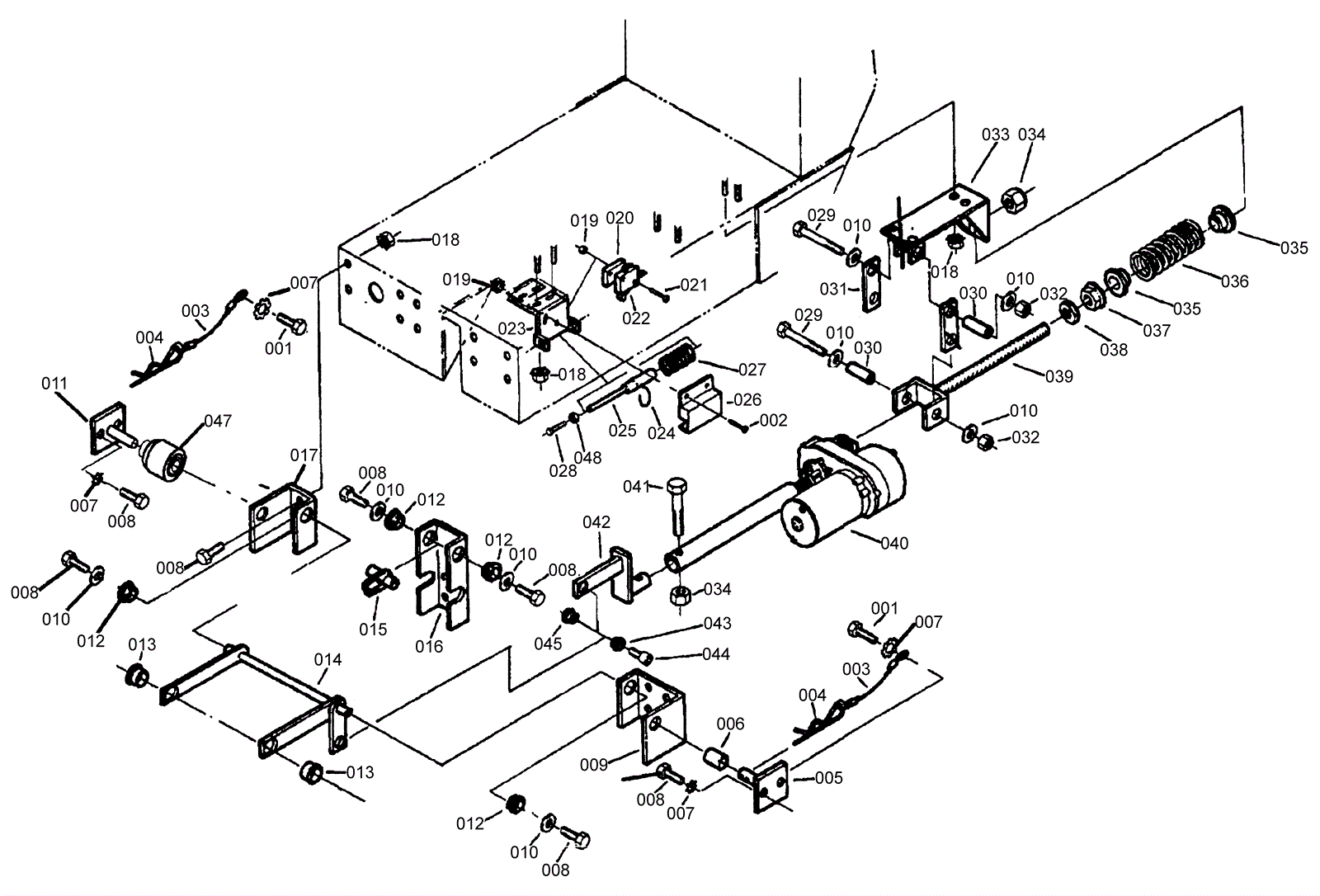

FILTRONIC F22 Lift Linkage

#PartDescriptionPriceReqNotesAvailability
001 999-0020 Bolt 1/4-20 x 3/4 hex head grade 5 zinc plated $0.99 ships same day
002 173-2014 Screw 4-40 x 1/4 $0.99 usually ships 1-5 days
003 173-0490 Cover pin cord $44.33 usually ships 1-5 days
004 173-0489 Cotter pin $0.99 usually ships 1-5 days
005 173-0506 Cover pivot assembly $73.70 usually ships 1-5 days
006 173-0507 Cover pivot bushing $15.73 usually ships 1-5 days
007 999-0017 Washer 1/4 external star lock $0.99 ships same day
008 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 ships same day
009 173-0508 Scrub deck link bracket $49.83 usually ships 1-5 days
010 999-0123 Washer 1/4 SAE flat zinc plated $0.99 ships same day
011 173-0488 Right cover pivot assembly $85.25 usually ships 1-5 days
013 173-1987 Deck bushing $13.64 usually ships 7-19 days
014 173-9779 Deck lift linkage (OBSOLETE) $226.48 usually ships 1-5 days
015 173-0510 Deck guide adjustment linkage assembly $166.10 usually ships 1-5 days
016 173-0509 Scrub deck link bracket $64.90 usually ships 1-5 days
017 173-0486 Scrub deck link bracket $50.49 usually ships 1-5 days
018 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 ships same day
019 173-2576 Nut 10-24 tinnerman (OBSOLETE) $5.35 usually ships 7-19 days
020 173-0492 Spacer $6.01 usually ships 1-5 days
021 999-1059 Screw 4-40 x 3/4 pan head phillips zinc plated $0.99 ships same day
022 173-1902 SPST switch $54.89 usually ships 1-5 days
023 173-9780 External microswitch mounting bracket (OBSOLETE) Call for price usually ships 1-5 days
024 173-9781 Snap ring (OBSOLETE) Call for price usually ships 1-5 days
025 173-9782 Saftety switch plunger (OBSOLETE) Call for price usually ships 1-5 days
026 173-9783 External micro switch bracket cover (OBSOLETE) Call for price usually ships 1-5 days
027 173-9784 Compression spring (OBSOLETE) Call for price usually ships 1-5 days
028 173-3997 Bolt 8-32 x 5/8 hex head (OBSOLETE) $0.99 usually ships 1-5 days
029 173-5054 Bolt 1/4-1-3/4 hex head $2.37 usually ships 7-19 days
030 173-9785 Bushing (OBSOLETE) $10.27 usually ships 1-5 days
031 173-0501 Actuator pivot link $24.53 usually ships 1-5 days
032 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 ships same day
033 173-9786 Actuator spring mount (OBSOLETE) Call for price usually ships 1-5 days
034 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 ships same day
035 173-9787 Spring hand (OBSOLETE) Call for price usually ships 1-5 days
036 173-9106 Spring $45.43 usually ships 7-19 days
037 999-0488 Nut 3/8-16 flange lock serrated zinc plated $0.99 ships same day
038 999-0247 Nut 3/8-16 hex jam plain finish $0.99 ships same day
039 173-9788 Actuator spring pivot (OBSOLETE) Call for price usually ships 1-5 days
040 173-1128 36 VDC 4 inch stroke actuator $507.01 usually ships 1-5 days
041 999-0550 Bolt 3/8-16 x 2 hex head stainless steel $2.95 ships same day
042 173-9789 Actuator connecting linkage (OBSOLETE) Call for price usually ships 1-5 days
043 173-1939 Bushing $67.65 usually ships 1-5 days
044 173-9107 Screw 1/4-20 x 3/8 socket cap $1.21 usually ships 1-5 days
045 173-1958 Flange bushing $2.42 usually ships 1-5 days
046 189-2162 Plate microswitch plunger Call for price usually ships 1-5 days
047 N/A Not available Call for price Bushing collar assembly usually ships 3-26 days
048 999-0308 Nut 8-32 plain $0.99 ships same day
