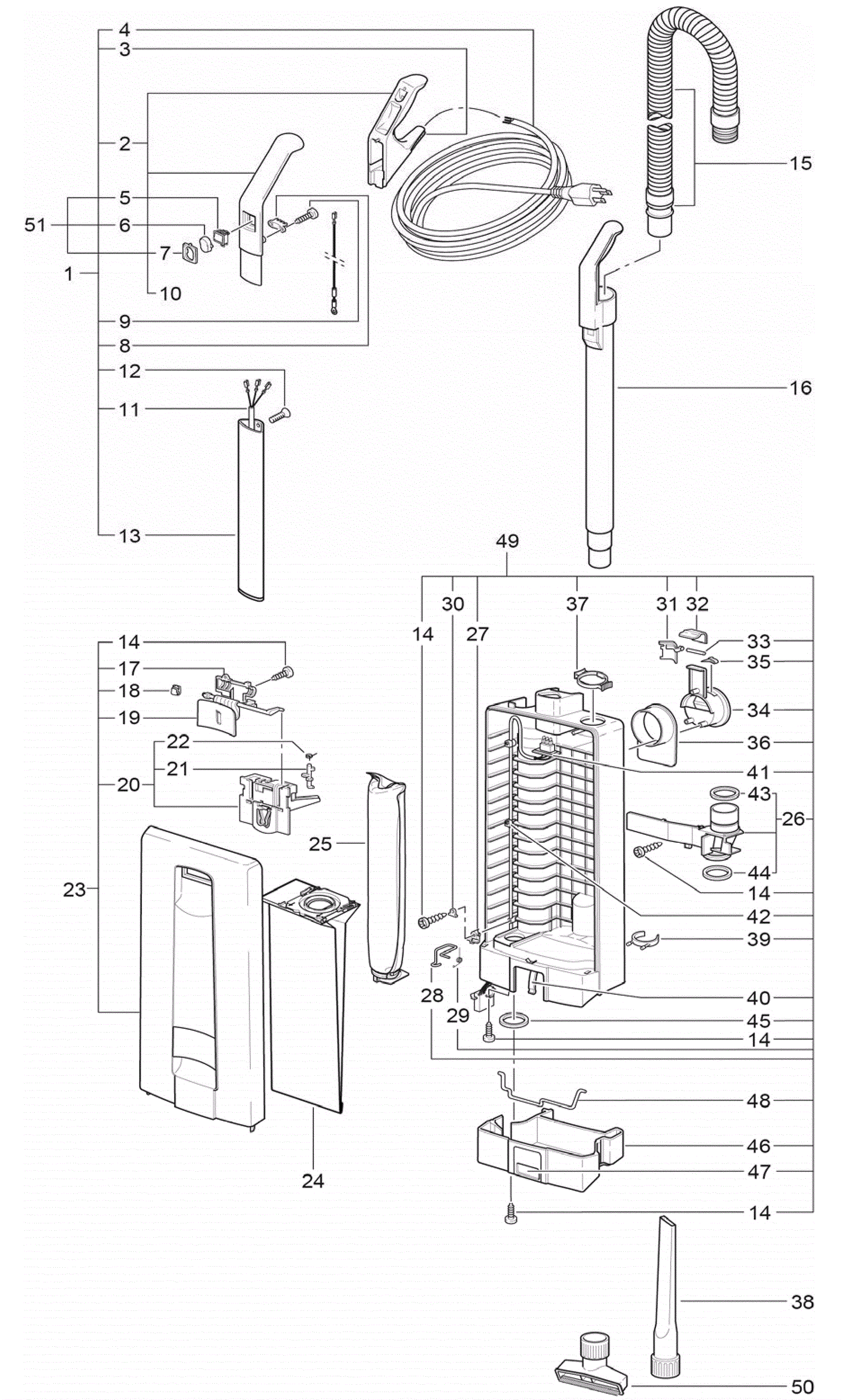

SENSOR S12 (Gray) Handle and Body Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-7619 Complete handle (black/yellow) $218.93 (includes 2-13) ships same day
2 273-7618 Handle grip (black) $94.60 usually ships 7-19 days
3 173-6339 Grommet (black) $7.37 ships same day
4 273-3554 18/3 power cord 40 foot (yellow) $41.67 ships same day
5 273-3549 Switch $99.55 ships same day
6 173-6340 Switch cap (yellow) $9.63 usually ships 7-19 days
7 173-6341 Switch cap holder (black) $11.33 usually ships 7-19 days
8 173-2354 Cable clamp $3.03 ships same day
9 173-0135 Screw M3-.5 x 16mm $0.99 ships same day
10 173-2355 Antistatic wire $19.58 usually ships 7-19 days
11 173-2356 Interconnect cord $40.37 ships same day
12 173-2457 Screw M4 x 12mm $1.64 usually ships 7-19 days
13 173-2357 Handle tube weldment $53.79 ships same day
14 173-0007 Screw M3-.5 x 13mm $1.91 ships same day
15 173-0205 Hose $94.05 ships same day
16 173-6342 Extension tube (black) $84.71 ships same day
17 173-6343 Cover (gray) $20.35 usually ships 7-19 days
18 173-2359 Bag holder spring $4.07 ships same day
19 173-6344 Cover release (yellow) $23.54 ships same day
20 173-2362 Bag holder $30.58 (includes 21 and 22) ships same day
21 173-2361 Safety catch $4.66 usually ships 7-19 days
22 173-0202 Safety catch spring $6.80 usually ships 7-19 days
23 173-6345 Front cover (gray) $151.80 (includes 14, 17, 18, 19, 20) ships same day
24a 173-0096 Versamatic Plus/Sensor paper bags (pkg of 10) $42.79 ships same day
24b 991-9005 Paper vacuum bags (pkg of 10) Versamatic Plus/Sensor $12.25 (NON-OEM) ships same day
25a 173-0102 HEPA filter $23.56 ships same day
25b 991-9006 HEPA filter $5.88 (NON-OEM) ships same day
26 173-6346 Internal cover (gray) $35.97 (includes 43 and 44) usually ships 7-19 days
27 173-2367 Cable clamp $7.32 usually ships 7-19 days
28 173-2365 Filter safety catch $12.21 usually ships 7-19 days
29 173-2366 Torsion spring $5.39 ships same day
30 173-0048 Clamp $3.39 usually ships 7-19 days
31 173-2370 Handle locking plate $12.21 ships same day
32 173-6347 Lock catch $12.54 ships same day
33 173-2371 Locking pin $2.66 ships same day
34 173-6348 Carrying handle $21.89 ships same day
35 173-0170 Spring stop $4.48 usually ships 7-19 days
36 173-6349 Cable hook $21.12 ships same day
37 173-6350 Retaining ring (10 pack) $30.47 ships same day
38 173-7532 Crevice tool (black) $44.55 usually ships 7-19 days
39 173-6351 Dust bag clip $14.19 usually ships 7-19 days
40 173-2379 Locking rod spring $5.39 ships same day
41 173-2375 Internal cable $44.42 ships same day
42 173-2376 Cord clamp $4.11 usually ships 7-19 days
43 173-6352 Seal $12.54 usually ships 7-19 days
44 173-0162 Seal $12.87 usually ships 7-19 days
45 173-2381 Seal $6.44 usually ships 7-19 days
46 173-6353 Dust bag bumper base $35.64 usually ships 7-19 days
47 173-6354 Locking latch $13.20 usually ships 7-19 days
48 173-5234 Locking rod $20.90 usually ships 7-19 days
49 173-6355 Dust bag housing $214.93 (includes 14, 28-36, 40-42, 45-48) usually ships 7-19 days
50 173-6357 Upholstery nozzle (black) $10.73 usually ships 7-19 days
51 173-6356 Switch $72.60 (includes 5, 6, 7) ships same day
