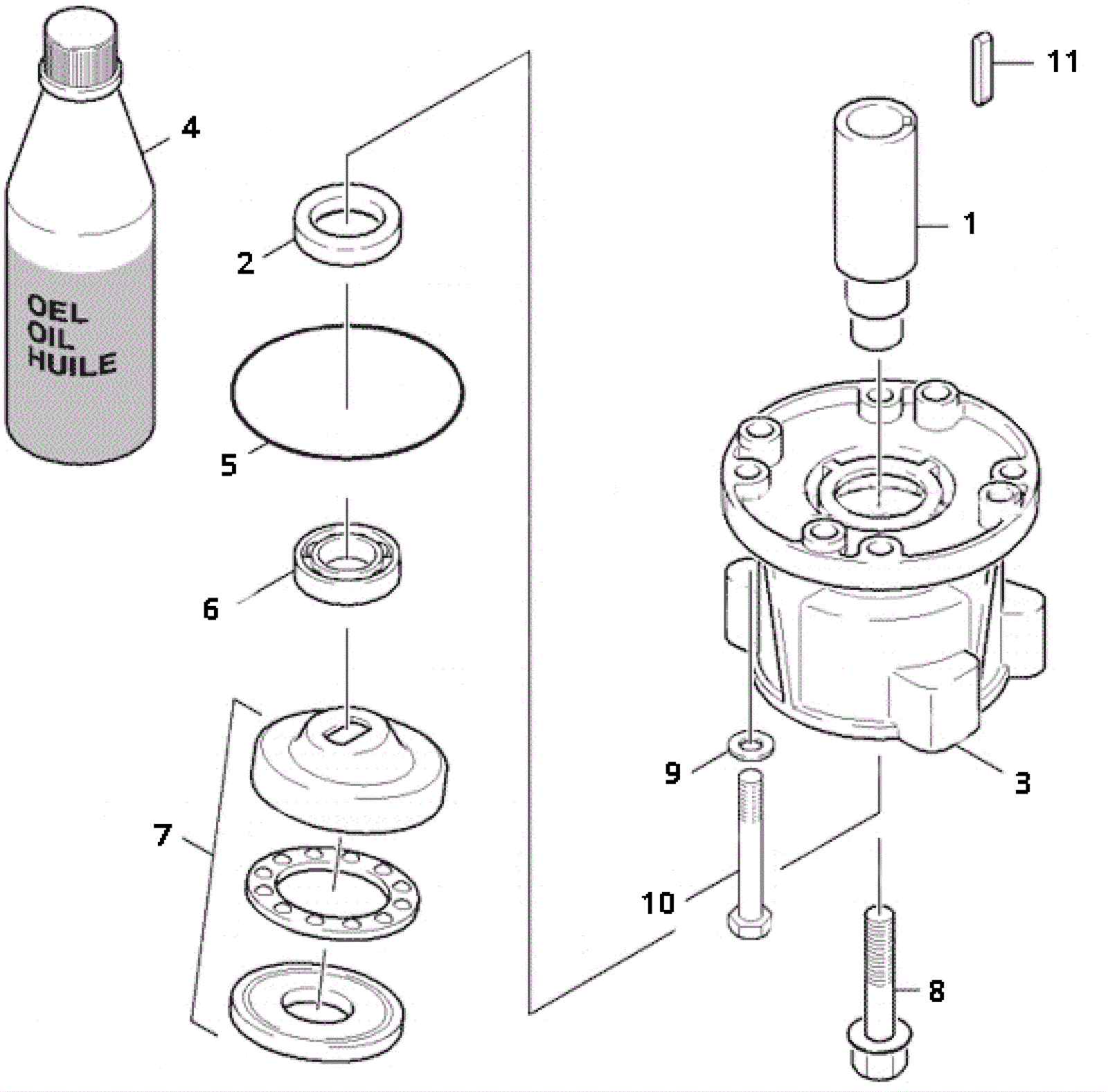

G2500 VH Pump Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-9451 Vertical pump shaft (OBSOLETE) $28.82 1 usually ships 7-19 days
2 273-8018 Radial shaft seal ring $4.74 1 usually ships 7-19 days
3 273-9452 Vertical housing (OBSOLETE) Call for price 1 usually ships 7-19 days
4 273-8010 Engine oil 1L $19.14 1 usually ships 7-19 days
5 273-8020 Gasket $5.17 1 usually ships 7-19 days
6 273-9453 Ball bearing $5.23 1 usually ships 7-19 days
7 273-9454 Swash plate $96.25 1 usually ships 7-19 days
8 273-2117 Screw M6 x 19mm cylinder head $1.50 1 usually ships 7-19 days
9 273-9455 Washer $0.99 1 usually ships 7-19 days
10 273-9456 Screw 5/16 socket head $0.99 1 usually ships 7-19 days
11 273-9635 Shaft key $8.47 1 usually ships 7-19 days
N/S 273-9524 3000psi vertical pump assembly $294.80 1 (Model 1.194-402.0, 1194-4020, 11944020) usually ships 7-19 days
