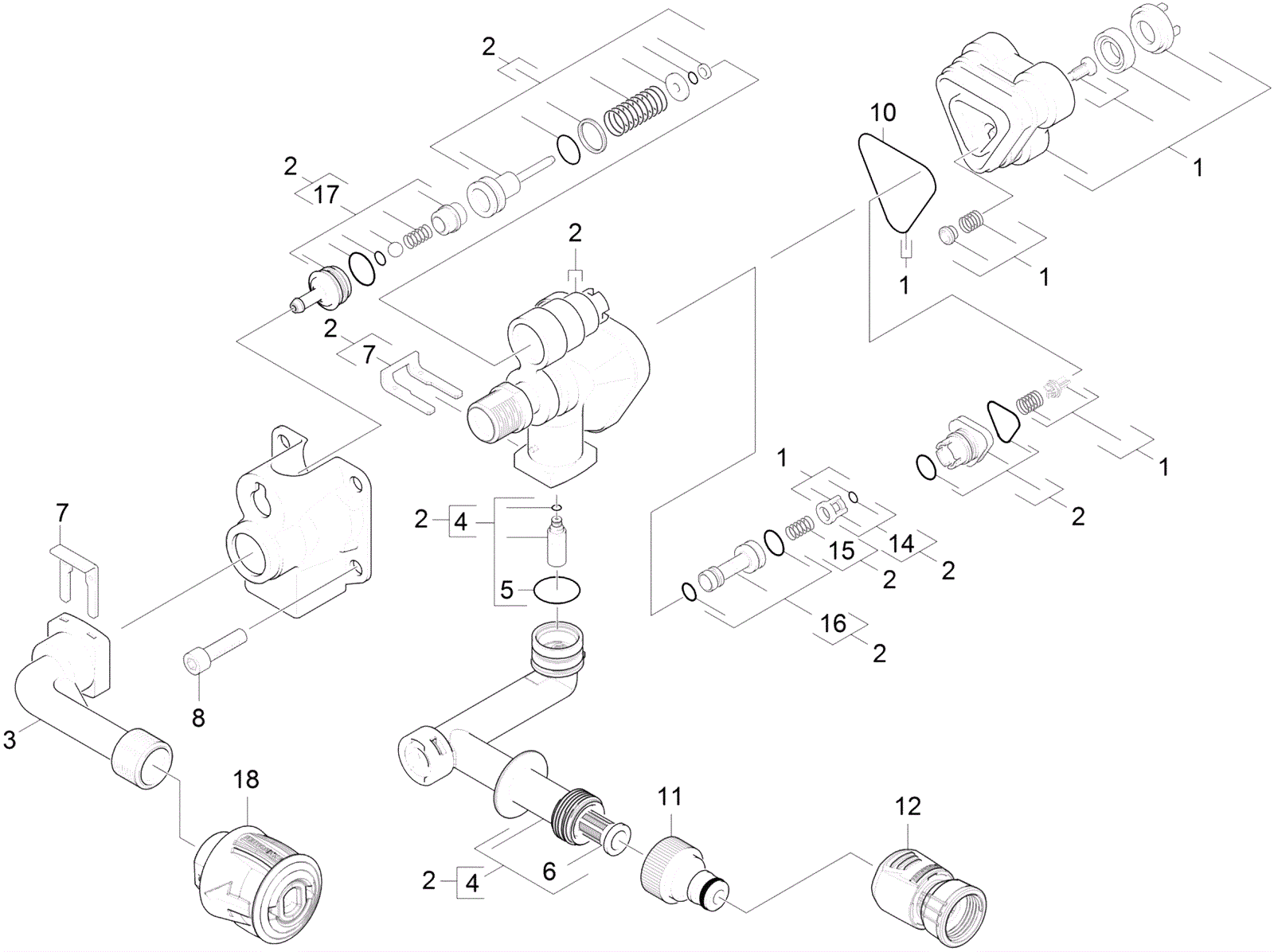

K3.450 Motor Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-9416 H.P head complete $77.40 1 usually ships 7-19 days
2 273-9417 Complete housing replacement $81.99 1 (includes 4-7, 14-17) usually ships 7-19 days
3 173-7652 Delivery side connection $9.67 1 usually ships 7-19 days
4 273-9418 Suction connection replacement $22.24 1 usually ships 7-19 days
5 273-9419 O-ring seal $4.73 1 usually ships 7-19 days
6 273-9420 Fine filter $21.10 1 usually ships 7-19 days
7 173-7653 Metal fork $2.15 2 usually ships 7-19 days
8 173-7654 Screw M8 x 55mm class 8.8 $1.36 4 usually ships 7-19 days
10 173-7659 Foam seal $1.28 1 usually ships 7-19 days
11 273-8517 Connection $9.90 1 usually ships 7-19 days
12 273-9421 Coupler with decal $9.71 1 usually ships 7-19 days
14 173-7665 Cage assembly $6.47 1 usually ships 7-19 days
15 173-7666 Spring $2.14 1 usually ships 7-19 days
16 173-7667 Injector assembly $16.19 1 usually ships 7-19 days
17 273-9422 Nipple chemistry $12.95 1 usually ships 7-19 days
18 273-9423 High pressure quick fitting pipe union $16.19 1 usually ships 7-19 days
