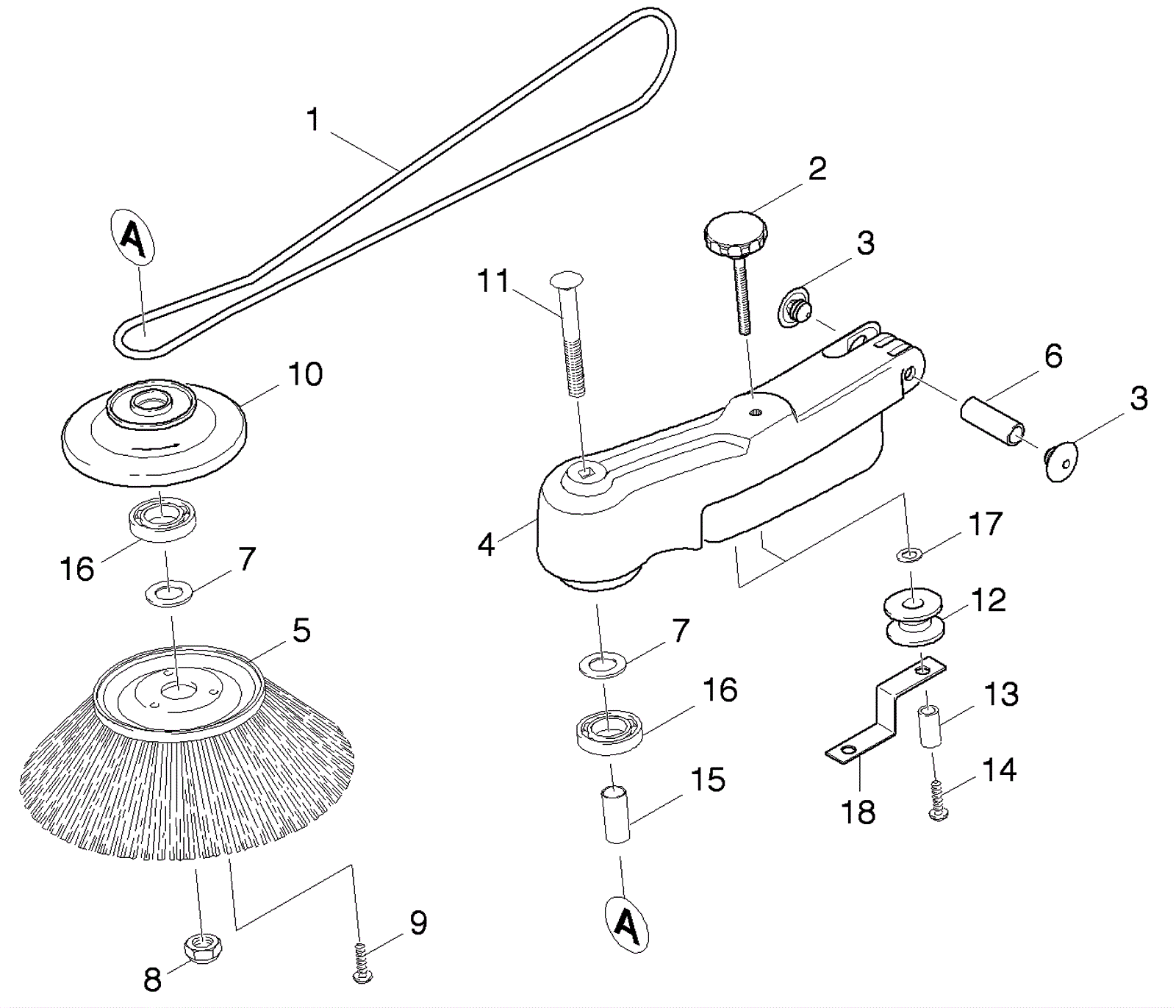

RADIUS280DELUXE Side Broom Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6083 Belt $38.02 1 usually ships 14-22 days
2 273-6084 Knob $26.72 1 usually ships 14-22 days
3 273-6085 Plug $5.43 2 usually ships 14-22 days
4 273-6086 Arm $50.26 1 usually ships 14-22 days
5 173-5380 Side brush $84.16 1 usually ships 14-22 days
6 273-6087 Sleeve $12.12 1 usually ships 14-22 days
7 273-6088 Washer $2.19 2 usually ships 14-22 days
8 273-6031 Nut M10-8 hex $3.25 1 usually ships 14-22 days
9 273-6089 Screw 6-10.9 x 20mm $2.26 3 usually ships 14-22 days
10 273-6090 Side brush hub $56.38 1 usually ships 14-22 days
11 273-6091 Screw M10 x 30mm saucer head $7.77 1 ships same day
12 173-6336 Deflection pulley $2.68 2 usually ships 14-22 days
13 273-6093 Sleeve $20.36 2 ships same day
14 273-6094 Screw 6-10.9 x 35mm $1.41 2 ships same day
15 273-6095 Spacer $22.13 1 usually ships 14-22 days
16 273-6041 Ball bearing $27.78 2 usually ships 14-22 days
17 173-6337 Washer $1.41 2 usually ships 14-22 days
18 273-6096 Bracket $58.73 1 usually ships 14-22 days
