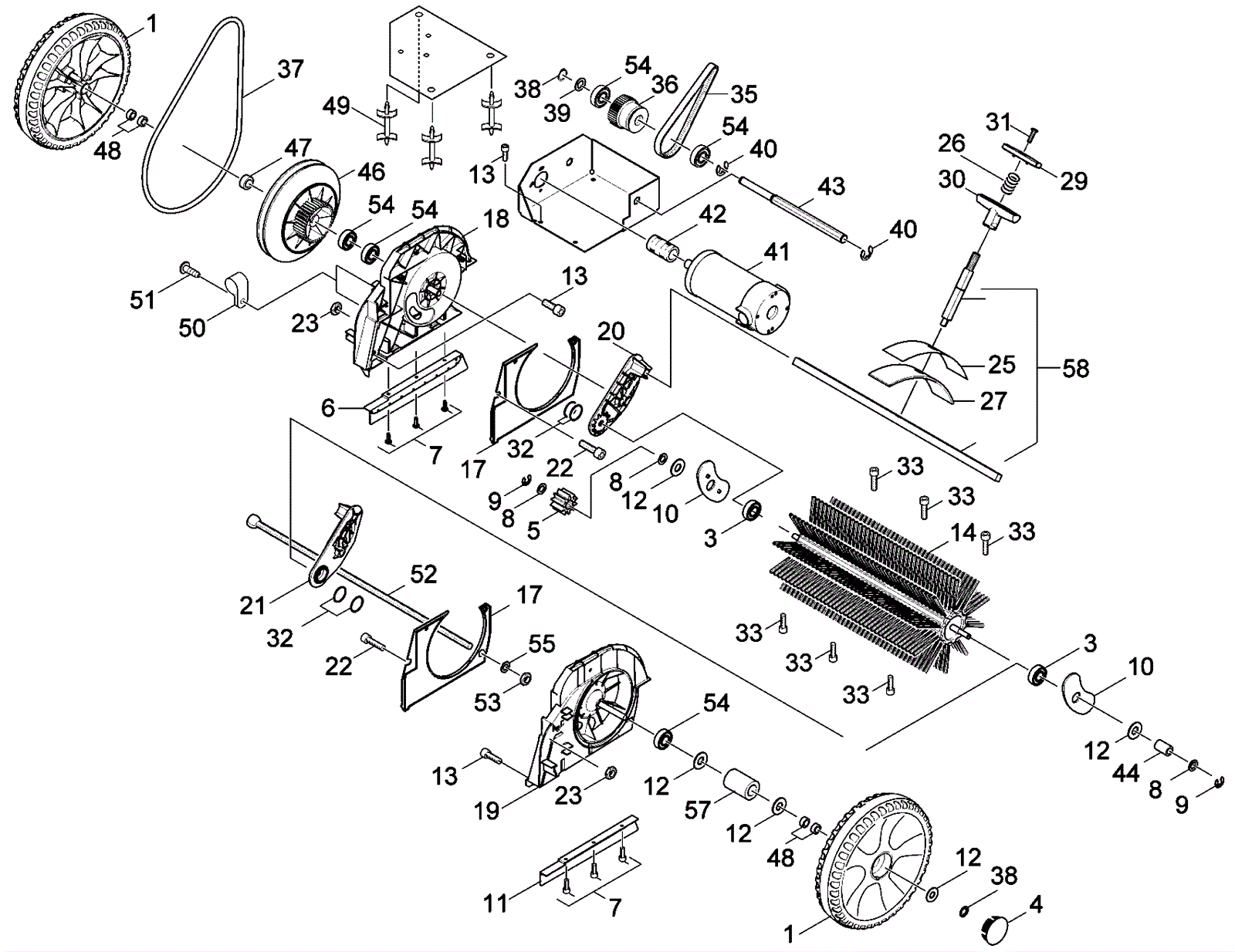

RADIUS280DELUXE Transmission Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6040 Wheel $215.39 2 usually ships 14-22 days
3 273-6041 Ball bearing $27.78 2 usually ships 14-22 days
4 273-6042 Hub cap $15.42 2 usually ships 14-22 days
5 273-6043 Pinion with clutch $193.03 1 usually ships 14-22 days
6 273-6044 Right skirt $22.22 1 usually ships 1-5 days
7 183-0075 Screw 5-16 x 10.9mm $4.62 14 ships same day
8 273-6045 Shim ring $2.82 4 usually ships 14-22 days
9 173-6324 Lock washer $6.18 2 usually ships 14-22 days
10 273-6046 Gasket $13.18 2 usually ships 14-22 days
11 273-6047 Left skirt $25.89 1 usually ships 1-5 days
12 273-6048 Washer $18.48 4 usually ships 14-22 days
13 273-6049 Screw 6-10.9 x 25mm $3.96 6 usually ships 1-5 days
14a 173-5383 Center brush - CYLINDRICAL $275.42 1 usually ships 14-22 days
14b 173-6331 Antistatic center brush - CYLINDRICAL $587.32 1 usually ships 14-22 days
16 273-6070 Locking ring $1.63 1 usually ships 14-22 days
17 273-6052 Cap $14.00 2 usually ships 1-5 days
18 273-6053 Right axle drum $154.19 1 usually ships 14-22 days
19 273-6054 Left axle drum $154.19 1 usually ships 14-22 days
20 273-6055 Right axle stub $30.95 1 usually ships 14-22 days
21 273-6056 Left axle stub $30.83 1 usually ships 14-22 days
22 273-6057 Screw M6-8.8 x 35mm (OBSOLETE) $1.69 4 usually ships 1-5 days
23 273-6058 Nut M6-1 hex $1.41 4 usually ships 1-5 days
25 273-6059 Plate stainless steel $7.24 1 usually ships 1-5 days
26 273-6060 Spring $5.02 1 usually ships 14-22 days
27 273-6061 Seal $13.18 1 usually ships 1-5 days
30 273-6063 Tee handle $9.06 1 usually ships 1-5 days
31 273-6064 Screw M5-.8 x 20mm $1.84 1 usually ships 14-22 days
32 273-6065 O-ring $4.51 4 usually ships 1-5 days
33 273-6066 Screw 5-10.9 x 30mm $5.50 6 usually ships 1-5 days
35 273-6067 Toothed belt $50.73 1 usually ships 14-22 days
36 273-6068 Belt pulley $170.93 1 usually ships 1-5 days
37 273-6069 Belt $95.34 1 ships same day
38 273-6070 Locking ring $1.63 1 usually ships 14-22 days
39 173-6333 Washer $2.68 1 usually ships 1-5 days
40 173-6334 Lock washer $2.26 2 usually ships 14-22 days
41 273-6071 12V brush motor $810.95 1 usually ships 14-22 days
42 273-6072 Toothed belt pulley $225.98 1 usually ships 14-22 days
43 273-6073 Hexagon shaft $101.82 1 usually ships 1-5 days
44 273-6074 Sleeve $39.90 1 usually ships 14-22 days
46 273-6075 Belt pulley $83.57 1 usually ships 14-22 days
47 273-6076 Sleeve $61.80 1 usually ships 1-5 days
48 273-6077 Bearing $28.37 4 usually ships 1-5 days
49 273-6078 Hopper $1.69 3 usually ships 1-5 days
50 273-6079 Cable clip $3.67 2 usually ships 1-5 days
51 173-4378 Screw $1.13 2 usually ships 14-22 days
52 273-6080 Axle $66.51 1 usually ships 14-22 days
53 273-6081 Nut M6-4 hex $2.40 1 usually ships 14-22 days
54 173-6280 Ball bearing $12.36 5 usually ships 14-22 days
55 173-6297 Washer $2.26 1 usually ships 1-5 days
57 273-6082 Sleeve $70.62 1 usually ships 1-5 days
58 173-6335 Angle assembly $193.60 1 usually ships 1-5 days
