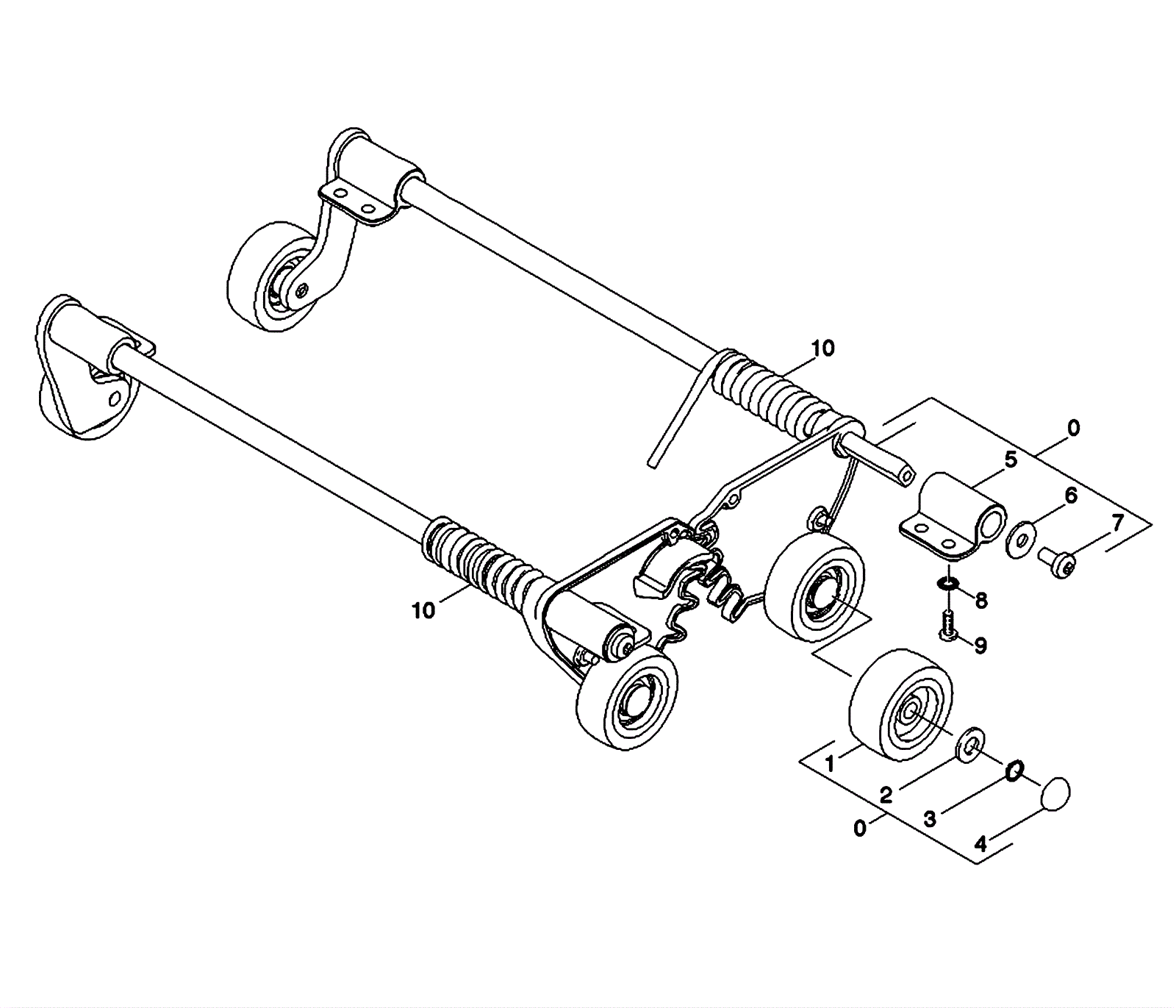

SABER BLADE 16 Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
0 173-6301 Chassis assembly $1,138.16 1 usually ships 1-5 days
1 173-6302 Wheel (gray) $25.77 4 usually ships 14-22 days
2 173-6303 Joint ring (OBSOLETE) $3.21 4 usually ships 14-22 days
3 173-6304 Locking ring $6.01 4 usually ships 14-22 days
4 173-6305 Lock washer $7.01 4 usually ships 14-22 days
5 173-6306 Bearing flange carriage $8.12 4 usually ships 14-22 days
6 173-5899 Washer $0.99 4 usually ships 14-22 days
7 173-6286 Screw M6 x 12mm $2.09 4 usually ships 1-5 days
8 173-6307 Serrated lock washer (OBSOLETE) $8.25 8 usually ships 14-22 days
9 173-6139 Screw 5 x 20 $4.30 8 usually ships 14-22 days
10 N/A Not available Call for price 1 (Leg spring set) usually ships 3-26 days
