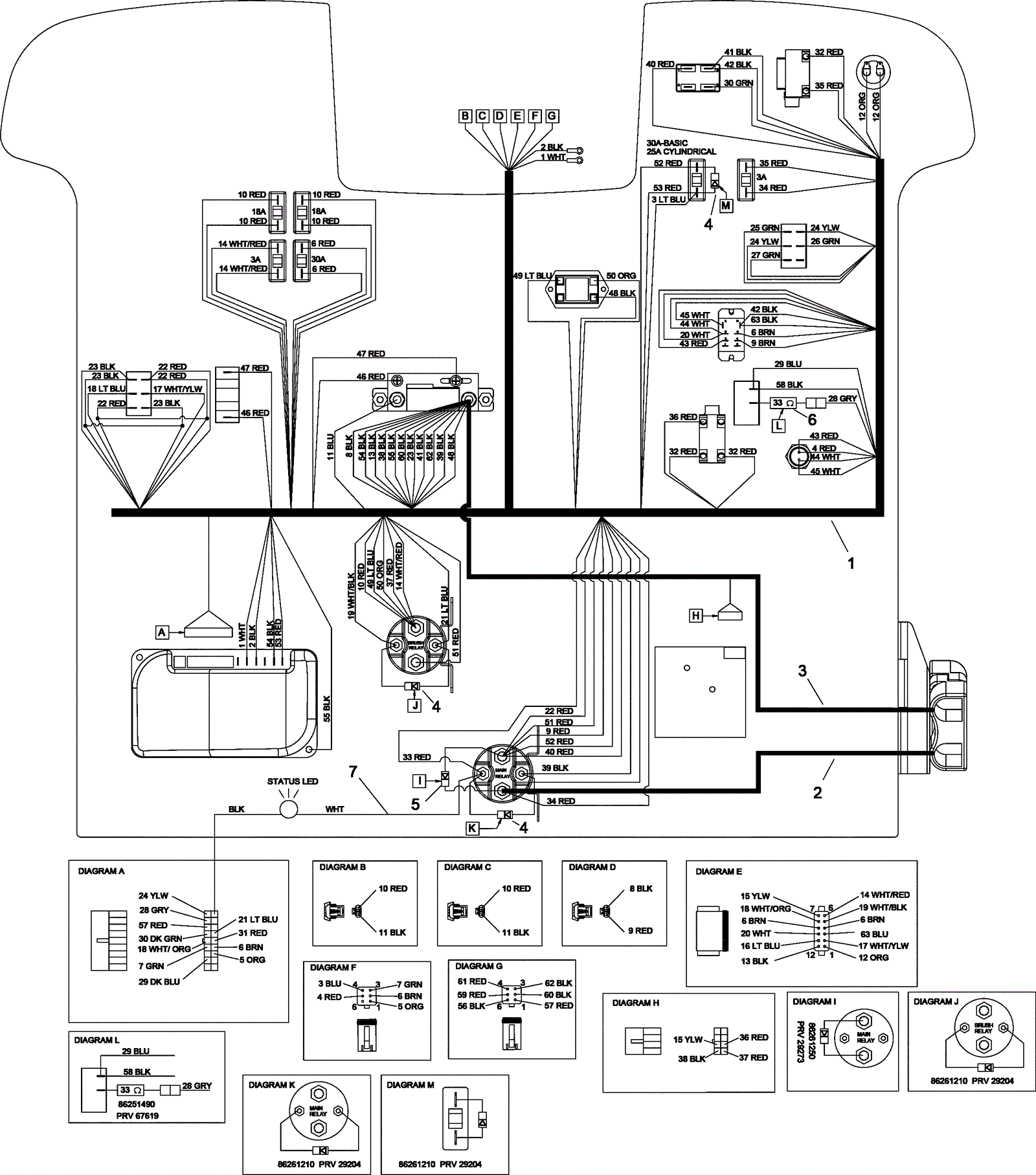

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
173-6112
|
Control panel harness |
$644.60
|
1 |
|
usually ships 1-5 days |
2 |
173-6113
|
Wire (red) |
$59.40
|
1 |
|
usually ships 1-5 days |
3 |
173-8350
|
Wire from battery to charger plug (black) |
$64.15
|
1 |
(battery to charger plug) |
usually ships 11-16 days |
4 |
173-1716
|
Diode assembly |
$57.55
|
3 |
|
usually ships 11-16 days |
5 |
173-5604
|
Recovery diode assembly |
$39.44
|
1 |
(after SN 1000150255) |
usually ships 11-16 days |
6 |
173-5331
|
Resistor assembly |
$68.27
|
1 |
(after SN 1000159163) |
usually ships 11-16 days |
7 |
273-6237
|
Indicator code light assembly |
$24.86
|
1 |
|
usually ships 1-5 days |
