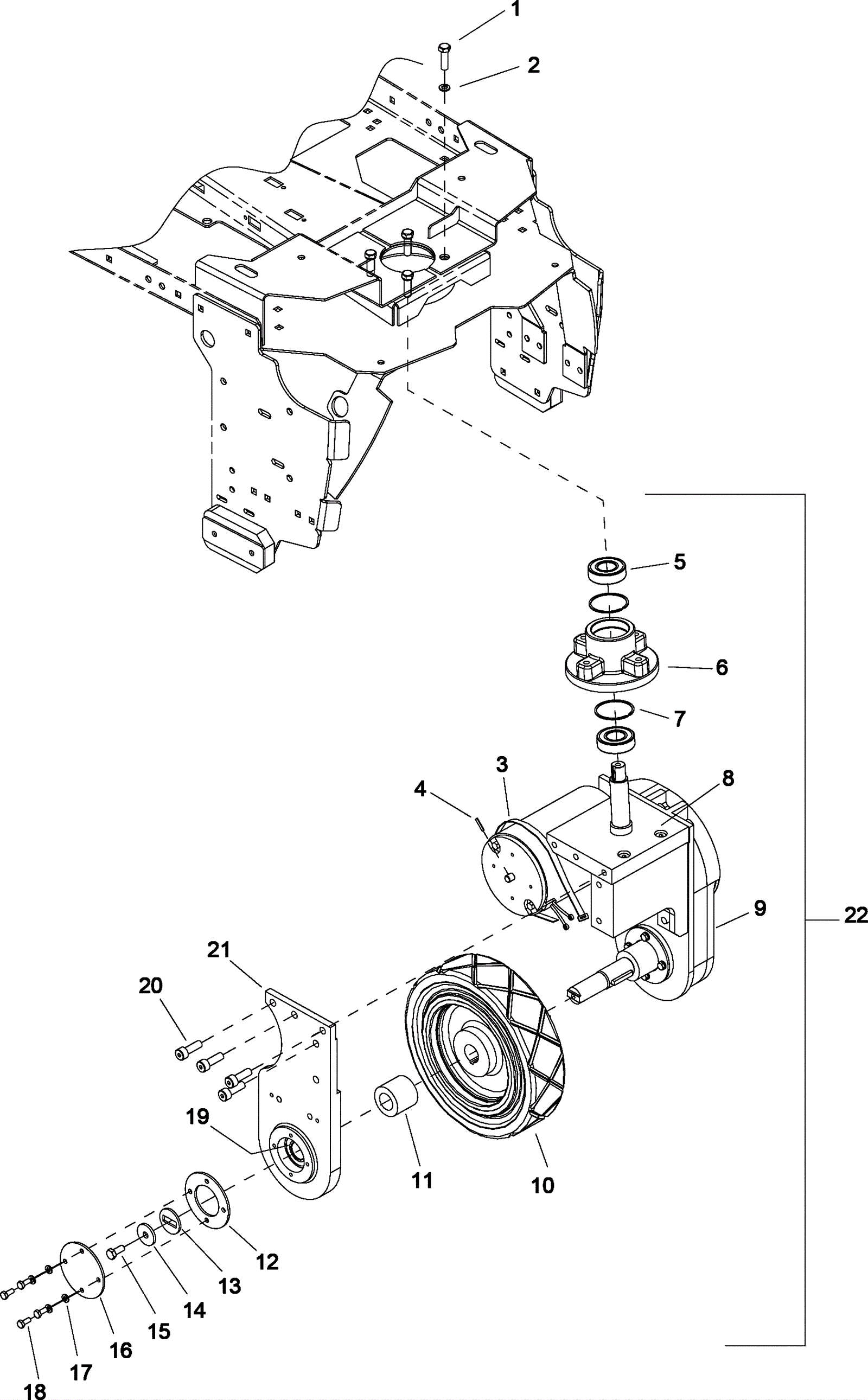

CHARIOT ISCRUB SERIES 1 Front Drive Wheel Assembly - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
2 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
3 173-3305 Cable tie $11.66 1 usually ships 1-5 days
4 173-2019 Roll pin $0.99 1 usually ships 1-5 days
5 173-4756 Bearing $42.90 3 usually ships 7-19 days
6 173-5567 Steering hub $210.10 1 usually ships 7-19 days
7 173-4746 Internal snap ring $11.11 2 usually ships 7-19 days
8 173-5591 Pivot shaft assembly $605.00 1 usually ships 7-19 days
9 273-5987 Drive gear box $1,628.00 1 usually ships 7-19 days
10a 173-6125 Wheel 10 x 2 inch $828.30 1 usually ships 7-19 days
10b 173-5589 Wheel with keyway and iron hub (gray) $641.30 1 (optional) usually ships 7-19 days
11 173-5592 Spacer $31.13 1 usually ships 7-19 days
12 173-5579 Bearing retainer plate $33.66 1 usually ships 1-5 days
13 173-5590 Anti-rotation washer $9.19 1 usually ships 1-5 days
14 999-1267 Washer M8 flat zinc $0.99 1 ships same day
15 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 1 ships same day
16 173-5582 Bearing cover plate $34.43 1 usually ships 1-5 days
17 999-0876 Washer M6 split lock plain finish $0.99 4 ships same day
18 173-5577 Screw M6-1 x 15mm hex head $2.00 4 usually ships 1-5 days
19 173-4756 Bearing $42.90 3 usually ships 7-19 days
20 273-5988 Screw M10-30mm socket head cap $17.05 10 usually ships 1-5 days
21 173-5578 Right hand drive plate $341.00 1 usually ships 1-5 days
22 173-5593 Drive motor assembly (OBSOLETE) $2,464.00 1 (includes 3-9, 11-21) (wheel not included) usually ships 7-19 days
N/S 273-6270 Carbon brush set (OBSOLETE) $184.80 1 usually ships 7-19 days
