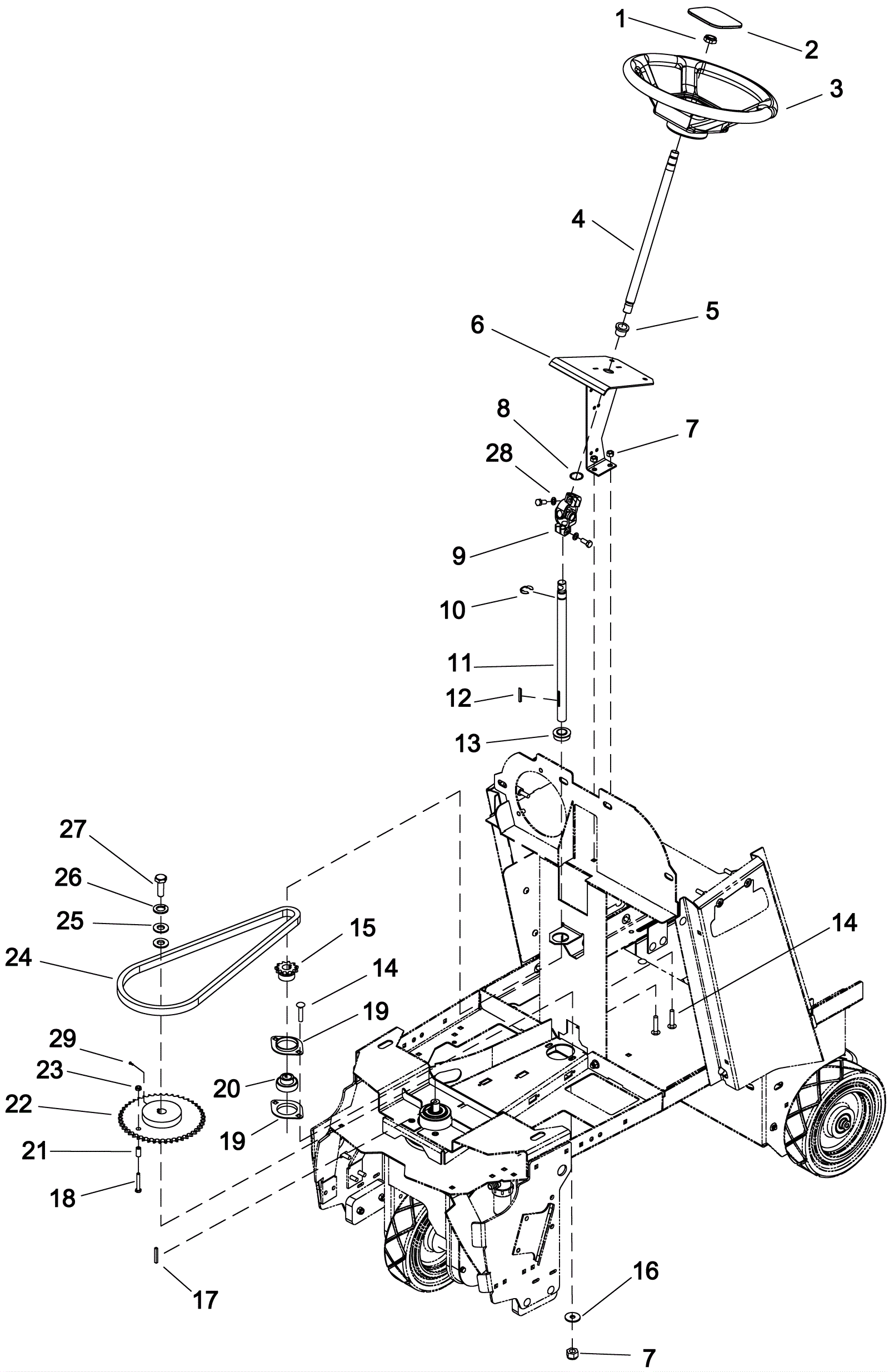

CHARIOT ISCRUB SERIES 1 Steering Assembly - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-5057 Nut 5/8-16 elastic stop $0.99 1 usually ships 7-19 days
2 173-5550 Steering wheel cover $18.70 1 usually ships 7-19 days
3 173-5551 Steering wheel $328.90 1 usually ships 7-19 days
4 173-5552 Upper steering shaft (OBSOLETE) $91.85 1 usually ships 7-19 days
5 173-7161 Flanged bearing $15.07 1 usually ships 7-19 days
6 173-5553 Upper steering bracket $108.90 1 usually ships 1-5 days
7 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 4 ships same day
8 173-0928 Nut 7/8 pushlock $5.06 1 usually ships 1-5 days
9 173-5554 Universal female joint $183.70 1 usually ships 7-19 days
10 173-3445 Ring clip $20.57 1 usually ships 7-19 days
11 173-5555 Lower steering shaft $84.70 1 ships same day
12 173-5556 Square keyway $5.50 1 usually ships 7-19 days
13 173-3446 Flanged bearing $70.40 1 usually ships 7-19 days
14 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 4 ships same day
15 173-5557 Sprocket $51.15 2 usually ships 7-19 days
16 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
17 173-9111 Square keyway $5.03 1 usually ships 7-19 days
18 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
19 173-3536 Flanged bearing $13.42 2 usually ships 7-19 days
20 173-5558 3/4 inch ball bearing $16.06 1 ships same day
21 173-5559 Spacer $48.73 1 usually ships 1-5 days
22 173-5560 Steering sprocket $134.20 1 usually ships 7-19 days
23 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
24a 273-5964 Pitch chain $70.40 1 usually ships 1-5 days
24b 173-5565 Master link $22.33 1 usually ships 7-19 days
25 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
26 999-1049 Washer 1/4 split lock zinc plated $0.99 1 ships same day
27 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 1 ships same day
28 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
29 173-5563 Screw M6 x 25mm set nickel plated $34.32 1 usually ships 1-5 days
