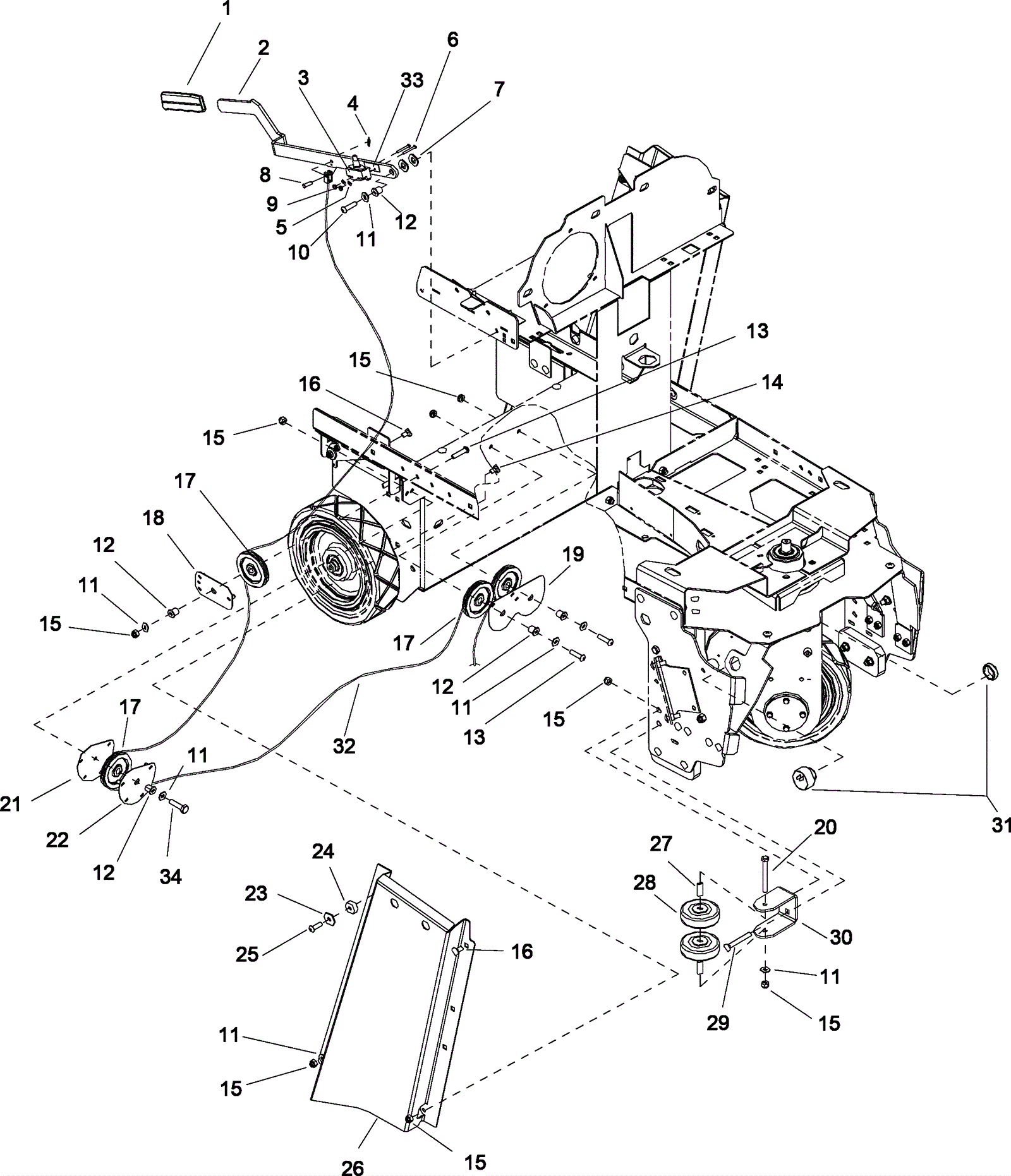

CHARIOT ISCRUB SERIES 1 Squeegee Lift Assembly - Cylindrical - External - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-8253 Handle grip (orange) $8.91 1 usually ships 7-19 days
2 173-6083 Squeegee lifting handle $130.90 1 usually ships 7-19 days
3 173-2000 Switch $242.00 1 usually ships 1-5 days
4 173-1130 Cotter ring $2.42 1 ships same day
5 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
6 999-0974 Screw 6-32 x 1 1/4 pan head phillips stainless steel $7.92 2 ships same day
7 173-2815 Washer 33/64 x 1 thrust $7.81 2 usually ships 7-19 days
8 173-3153 Clevis pin $6.38 1 usually ships 7-19 days
9 173-5037 Nut 6-32 elastic stop (OBSOLETE) $1.25 2 usually ships 7-19 days
10 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 1 ships same day
11 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 8 ships same day
12 273-0024 Flanged bearing $9.02 5 usually ships 7-19 days
13 173-3969 Bolt 5/16-18 x 1 1/4 shoulder bolt cap (OBSOLETE) $6.38 3 usually ships 7-19 days
14 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 1 ships same day
15 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 12 ships same day
16 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
17 273-0021 Plastic pulley $52.80 4 usually ships 7-19 days
18 273-5945 Pulley retainer bracket $40.70 1 usually ships 1-5 days
19 273-0025 Pulley mounting plate $42.24 1 usually ships 1-5 days
20 999-0911 Screw 5/16-18 x 3 hex head stainless steel $4.75 2 ships same day
21 273-0028 Pulley retainer plate $16.39 1 usually ships 1-5 days
22 273-0016 Mounting plate $53.13 1 usually ships 1-5 days
23 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 1 ships same day
24 173-5480 Spacer $3.63 1 usually ships 1-5 days
25 999-0225 Screw 5/16-18 x 1 button head socket plain finish $0.99 1 ships same day
26 173-6087 Right hand channel bracket $251.90 1 usually ships 1-5 days
27 173-1634 Bushing $11.55 4 usually ships 7-19 days
28a 173-1630 3 inch rubber wheel $5.50 4 ships same day
29 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 4 ships same day
30 173-6093 Wheel mounting bracket $37.73 2 usually ships 1-5 days
31 173-5602 Horn $147.40 1 usually ships 7-19 days
32 173-6094 Lifting cable $51.59 1 usually ships 7-19 days
33 273-6266 Insulator switch $4.07 1 (after SN 10060140000045) usually ships 1-5 days
34 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 1 ships same day
