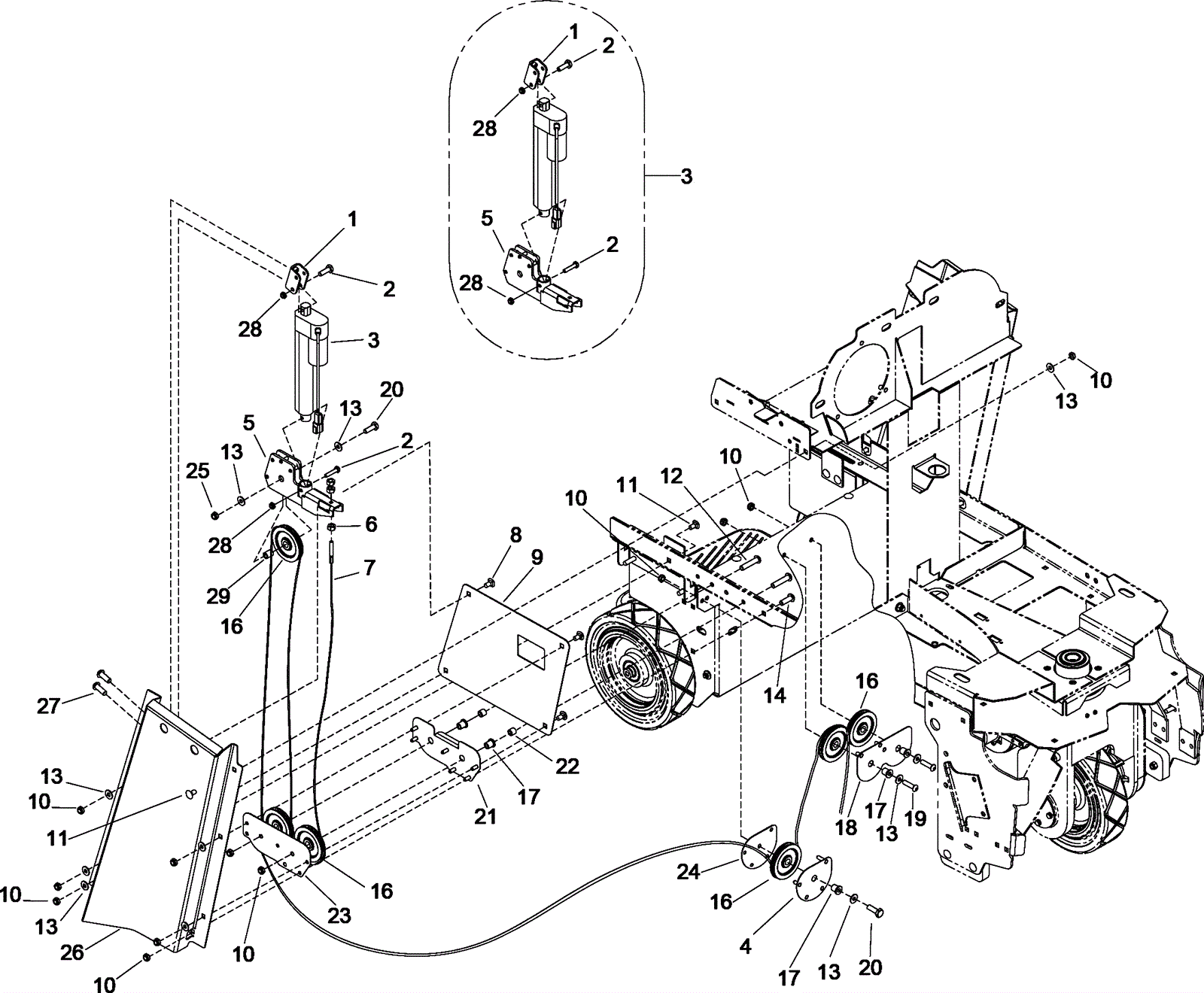

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
273-0014
|
Actuator mounting bracket |
$64.90
|
1 |
|
usually ships 1-5 days |
2 |
999-0136
|
Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated |
$0.99
|
1 |
|
ships same day |
3 |
273-0015
|
Stroke actuator with mounting bracket |
$580.80
|
1 |
(includes 1-2, 5, 28) (CSX24 after SN 10060270000836) (CSXE24 after SN 10060290000027) (CSXE024 after SN 10060300000000) |
usually ships 7-19 days |
4 |
273-0016
|
Mounting plate |
$53.13
|
1 |
(after SN 1000143905) |
usually ships 1-5 days |
5 |
273-0017
|
Pulley mounting bracket |
$216.70
|
1 |
(after SN 1000143905) |
usually ships 1-5 days |
6 |
999-0952
|
Nut 1/4-28 hex stainless steel |
$0.99
|
3 |
|
ships same day |
7 |
273-0018
|
Squeegee lifting cable |
$37.40
|
1 |
|
usually ships 7-19 days |
8 |
273-0019
|
Screw 5/16-18 x 5/8 carriage stainless steel |
$4.82
|
4 |
|
usually ships 7-19 days |
9 |
273-0020
|
Cover |
$48.40
|
1 |
|
usually ships 7-19 days |
10 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
15 |
|
ships same day |
11 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
$2.16
|
3 |
|
ships same day |
12 |
273-0022
|
Screw 5/16-8 x 1 3/4 hex cap stainless steel |
$9.24
|
2 |
|
usually ships 7-19 days |
13 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
10 |
|
ships same day |
14 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
$1.25
|
1 |
|
ships same day |
16 |
273-0021
|
Plastic pulley |
$52.80
|
6 |
|
usually ships 7-19 days |
17 |
273-0024
|
Flanged bearing |
$9.02
|
5 |
|
usually ships 7-19 days |
18 |
273-0025
|
Pulley mounting plate |
$42.24
|
1 |
|
usually ships 1-5 days |
19 |
173-3969
|
Bolt 5/16-18 x 1 1/4 shoulder bolt cap (OBSOLETE) |
$6.38
|
2 |
|
usually ships 7-19 days |
20 |
999-0552
|
Bolt 5/16-18 x 1 1/2 hex head stainless steel |
$1.45
|
2 |
|
ships same day |
21 |
273-0026
|
Pulley retainer bracket |
$89.10
|
1 |
(after SN 1000143905) |
usually ships 1-5 days |
22 |
173-4095
|
Spacer (OBSOLETE) |
$0.99
|
2 |
|
usually ships 7-19 days |
23 |
273-0027
|
Pulley retainer bracket |
$21.89
|
1 |
(after SN 1000143905) |
usually ships 1-5 days |
24 |
273-0028
|
Pulley retainer plate |
$16.39
|
1 |
(after SN 1000143905) |
usually ships 1-5 days |
25 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
1 |
|
ships same day |
26 |
273-0029
|
Right hand channel bracket |
$226.60
|
1 |
|
usually ships 1-5 days |
27 |
999-1342
|
Screw 5/16-18 x 1/2 truss head slotted zinc |
$0.99
|
2 |
|
ships same day |
28 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
$0.99
|
2 |
|
ships same day |
29 |
173-3117
|
Bearing |
$8.75
|
1 |
|
usually ships 1-5 days |
