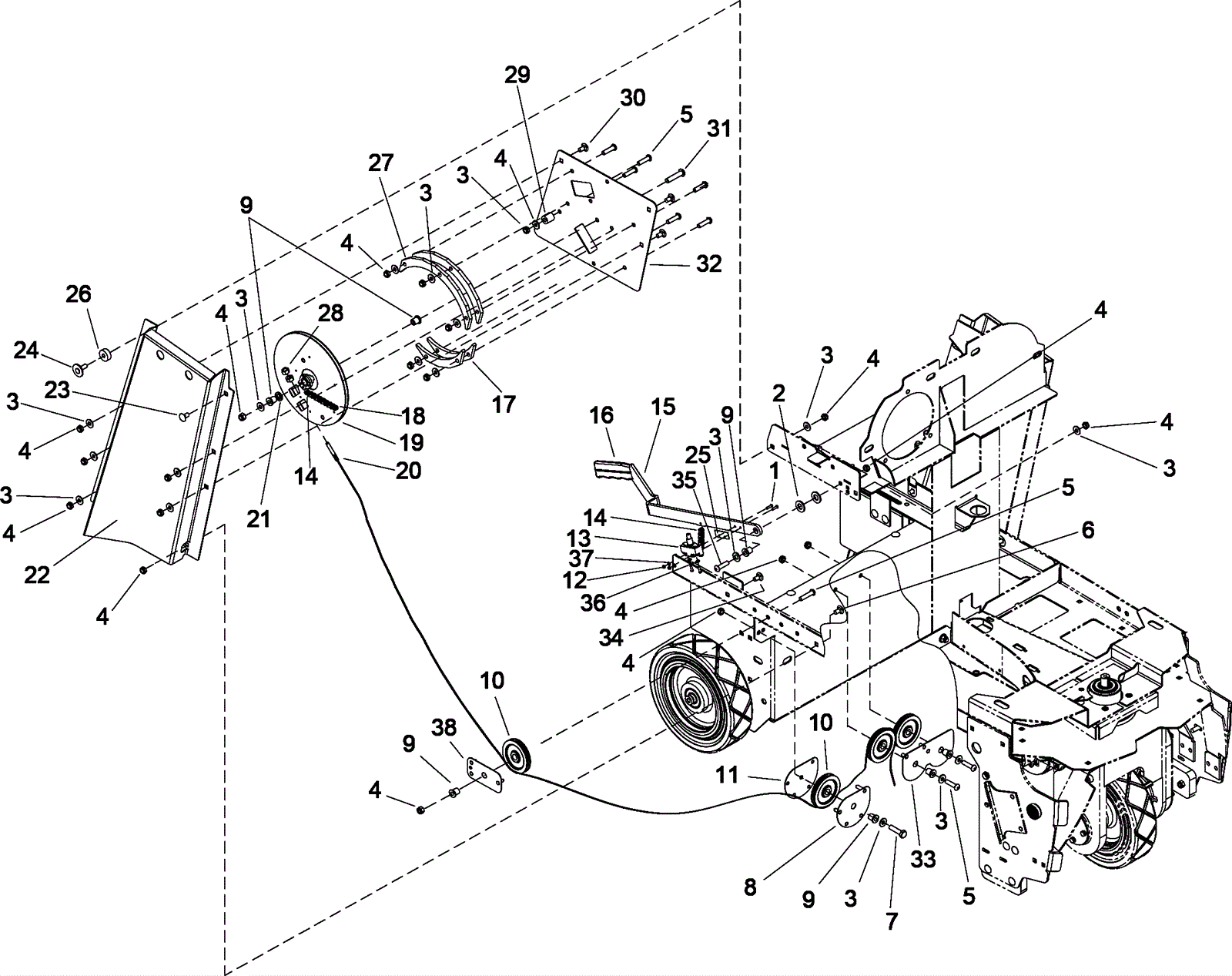

CHARIOT ISCRUB SERIES 1 Squeegee Lift Assembly - Disk Standard - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 999-1945 Screw 6-32 x 1 1/2 pan head phillips $0.99 2 usually ships 12-18 days
2 173-2815 Washer 33/64 x 1 thrust $7.81 2 usually ships 14-22 days
3 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 19 ships same day
4 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 21 ships same day
5 173-3969 Bolt 5/16-18 x 1 1/4 shoulder bolt cap (OBSOLETE) $6.38 9 usually ships 14-22 days
6 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 1 ships same day
7 999-0552 Bolt 5/16-18 x 1 1/2 hex head stainless steel $1.45 1 ships same day
8 273-0016 Mounting plate $53.13 1 (after SN 1000143905) usually ships 1-5 days
9 273-0024 Flanged bearing $9.02 7 usually ships 14-22 days
10 273-0021 Plastic pulley $52.80 4 usually ships 14-22 days
11 273-0028 Pulley retainer plate $16.39 1 (after SN 1000143905) usually ships 1-5 days
12 173-5037 Nut 6-32 elastic stop (OBSOLETE) $1.25 2 usually ships 14-22 days
13 173-2000 Switch $242.00 1 (vacuum) usually ships 1-5 days
14 173-4920 Master link #35 $5.57 2 usually ships 1-5 days
15 173-6083 Squeegee lifting handle $130.90 1 usually ships 14-22 days
16 173-8253 Handle grip (orange) $8.91 1 usually ships 14-22 days
17 173-6084 Bottom plate $28.60 2 usually ships 1-5 days
18 173-6085 Chain #35 $27.39 1 usually ships 14-22 days
19 173-6086 Lifting cam $253.00 1 usually ships 1-5 days
20 173-8607 Squeegee lifting cable $63.80 1 usually ships 14-22 days
21 173-2571 Washer 1/2 x .125 wave $3.82 1 usually ships 14-22 days
22 173-6087 Right hand channel bracket $251.90 1 usually ships 1-5 days
23 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 1 ships same day
24 173-6088 Handle retainer $33.66 1 (after SN 1000157498) usually ships 1-5 days
25 273-6266 Insulator switch $4.07 1 usually ships 1-5 days
26 173-5480 Spacer $3.63 1 usually ships 1-5 days
27 173-6089 Top plate $39.82 2 usually ships 1-5 days
28 999-0952 Nut 1/4-28 hex stainless steel $0.99 2 ships same day
29 173-9238 Spacer $2.97 1 usually ships 1-5 days
30 273-0019 Screw 5/16-18 x 5/8 carriage stainless steel $4.82 4 usually ships 14-22 days
31 273-0022 Screw 5/16-8 x 1 3/4 hex cap stainless steel $9.24 1 usually ships 14-22 days
32 173-6090 Cam mounting plate $56.65 1 usually ships 1-5 days
33 273-0025 Pulley mounting plate $42.24 1 usually ships 1-5 days
34 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 1 ships same day
35 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 1 ships same day
36 999-0092 Washer #8 internal star lock zinc plated $0.99 2 ships same day
37 999-1158 Washer #6 flat stainless steel $0.99 4 ships same day
38 273-5945 Pulley retainer bracket $40.70 1 (after SN 1000143905) usually ships 1-5 days
