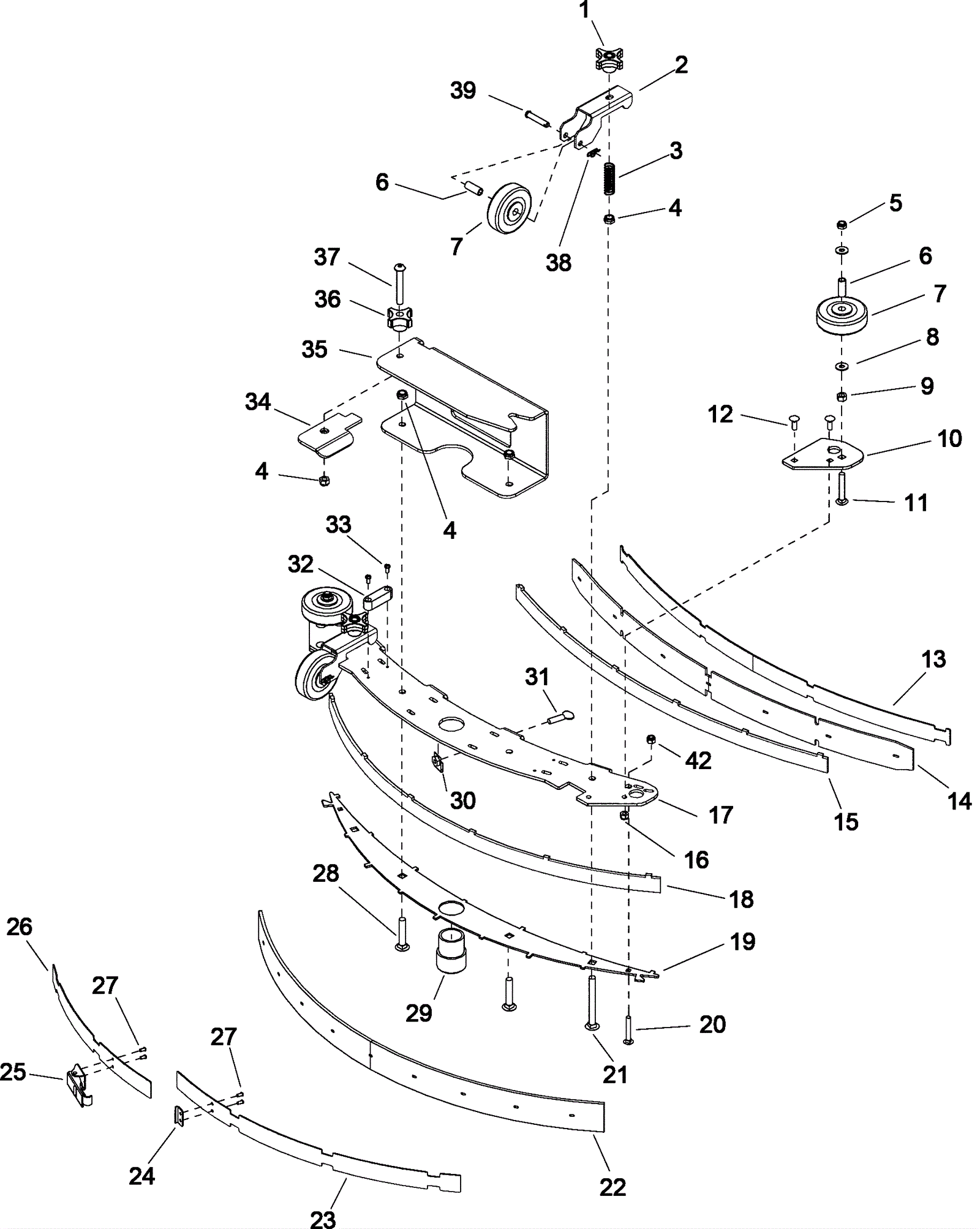

CHARIOT ISCRUB SERIES 1 Squeegee Assembly - Cylindrical - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-4119 Knob $92.40 2 usually ships 11-16 days
2 173-8333 Squeegee wheel bracket $40.02 2 usually ships 11-16 days
3 189-0353 Compression spring $9.82 2 usually ships 11-16 days
4 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 6 ships same day
5 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
6 173-1634 Bushing $12.36 2 usually ships 11-16 days
7a 173-1630 3 inch rubber wheel $5.89 4 ships same day
8 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
9 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
10 173-6071 Bumper wheel mounting plate $47.19 2 usually ships 1-5 days
11 999-0476 Screw 5/16-18 x 2 carriage head grade 5 zinc $0.99 2 ships same day
12 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 4 ships same day
13 173-6072 Front squeegee strap $72.39 1 usually ships 11-16 days
14a 273-0950 Squeegee blade front gum rubber red $61.80 1 usually ships 11-16 days
14b 173-6073 Squeegee blade front urethane $127.12 1 usually ships 1-5 days
15 173-6074 Front squeegee vertical filler plate $30.95 1 usually ships 1-5 days
16 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
17 173-6075 Top squeegee plate $152.90 1 usually ships 1-5 days
18 173-6076 Rear squeegee vertical filler plate $36.72 1 usually ships 1-5 days
19 173-6077 Bottom squeegee plate $142.42 1 usually ships 11-16 days
20 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel $5.50 2 ships same day
21 999-1399 Screw 3/8-16 x 3 1/2 carriage head stainless steel $7.84 2 ships same day
22a 273-0951 Squeegee blade rear linatex $94.16 1 usually ships 11-16 days
22b 173-6078 Squeegee blade rear urethane $127.12 1 usually ships 11-16 days
23 173-6079 Left rear squeegee strap $55.20 1 usually ships 11-16 days
24 170-7029 Keeper $4.38 1 ships same day
25 173-0412 Squeegee strap latch $47.20 1 usually ships 7-12 days
26 173-6080 Right rear squeegee strap $44.37 1 usually ships 1-5 days
27 173-2797 Rivet $1.84 4 usually ships 11-16 days
28 999-1149 Bolt 3/8-16 x 2 carriage head stainless steel $6.57 2 ships same day
29 173-8331 Vacuum hose intake tube $58.73 1 usually ships 11-16 days
30 173-3935 Nut 5/16-18 captive jam (OBSOLETE) $5.50 4 usually ships 11-16 days
31 173-3940 Screw 5/16-18 x 1 thumb type p stainless steel $17.53 4 usually ships 11-16 days
32 164-1136 Squeegee level $15.33 1 usually ships 17-22 days
33 173-2824 Screw 8-32 x 3/8 phillips head thread cutting F plated $1.47 2 usually ships 11-16 days
34 273-5919 Locking bracket $83.57 1 usually ships 11-16 days
35 173-6081 Mounting bracket $124.30 1 usually ships 11-16 days
36 173-1025 Knob $22.59 1 usually ships 11-16 days
37 273-5921 Screw 3/8-16 x 2 1/2 button head stainless steel $10.45 1 usually ships 1-5 days
38 173-1480 Cotter ring $2.46 2 ships same day
39 173-3181 Clevis pin $7.01 2 ships same day
40 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 1 (after SN 1000144784) ships same day
41 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 1 (after SN 1000144784) ships same day
42 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 2 ships same day
