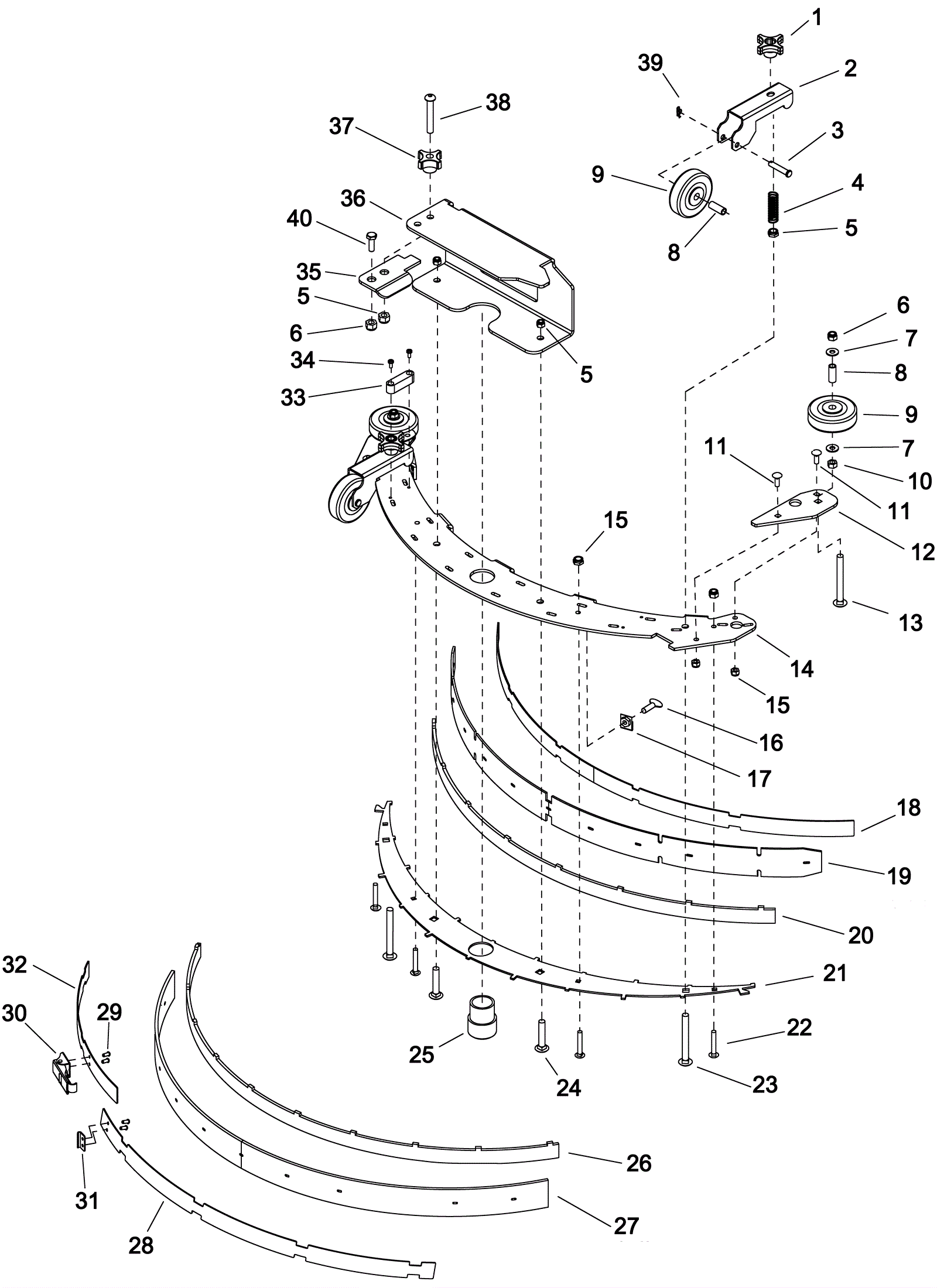

CHARIOT ISCRUB SERIES 1 Squeegee Assembly - Disk - Before 01.2009

#PartDescriptionPriceReqNotesAvailability
1 173-4119 Knob $92.40 2 usually ships 11-16 days
2 273-5912 Squeegee wheel bracket $90.05 2 usually ships 11-16 days
3 173-3181 Clevis pin $7.01 2 ships same day
4 189-0353 Compression spring $9.82 2 usually ships 11-16 days
5 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
6 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
7 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
8 173-1634 Bushing $12.36 2 usually ships 11-16 days
9a 173-1630 3 inch rubber wheel $5.89 4 ships same day
10 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
11 999-0963 Bolt 1/4-20 x 3/4 carriage head stainless steel $1.50 4 ships same day
12 273-6288 Squeegee wheel bumper plate $41.90 2 usually ships 11-16 days
13 999-0476 Screw 5/16-18 x 2 carriage head grade 5 zinc $0.99 2 ships same day
14 273-5914 Top plate $253.06 1 usually ships 1-5 days
15 999-0304 Nut 1/4-20 nylon lock jam stainless steel $0.99 4 ships same day
16 173-3940 Screw 5/16-18 x 1 thumb type p stainless steel $17.53 5 usually ships 11-16 days
17 173-3935 Nut 5/16-18 captive jam (OBSOLETE) $5.50 5 usually ships 11-16 days
18 173-7417 Front squeegee strap $106.52 1 usually ships 11-16 days
19a 173-8460 Squeegee blade 36 inch gum rubber front $38.49 1 ships same day
19b 173-8462 Squeegee blade 36 inch urethane front $94.16 1 usually ships 11-16 days
20 273-5915 Front squeegee vertical filler plate $32.60 1 usually ships 11-16 days
21 173-7400 33 inch bottom squeegee plate (OBSOLETE) $163.90 1 usually ships 11-16 days
22 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel $5.50 4 ships same day
23 999-1399 Screw 3/8-16 x 3 1/2 carriage head stainless steel $7.84 2 ships same day
24 999-1149 Bolt 3/8-16 x 2 carriage head stainless steel $6.57 2 ships same day
25 173-8331 Vacuum hose intake tube $58.73 1 usually ships 11-16 days
26 273-5917 Rear squeegee vertical filler plate (OBSOLETE) $41.36 1 usually ships 11-16 days
27a 173-8459 Squeegee blade 40 inch linatex rear (red) $60.03 1 ships same day
27b 173-8461 Squeegee blade 40 inch urethane rear (OBSOLETE) $137.50 1 usually ships 11-16 days
28 173-7418 Right rear squeegee strap (OBSOLETE) $66.55 1 usually ships 11-16 days
29 173-2797 Rivet $1.84 4 usually ships 11-16 days
30 173-0412 Squeegee strap latch $47.20 1 usually ships 7-12 days
31 170-7029 Keeper $4.38 1 ships same day
32 273-5918 Left rear squeegee strap $48.38 1 usually ships 11-16 days
33 164-1136 Squeegee level $15.33 1 usually ships 17-22 days
34 173-2824 Screw 8-32 x 3/8 phillips head thread cutting F plated $1.47 2 usually ships 11-16 days
35 273-5919 Locking bracket $83.57 1 usually ships 11-16 days
36 273-5920 Mounting bracket $175.37 1 usually ships 11-16 days
37 173-1025 Knob $22.59 1 usually ships 11-16 days
38 273-5921 Screw 3/8-16 x 2 1/2 button head stainless steel $10.45 1 usually ships 1-5 days
39 173-1480 Cotter ring $2.46 2 ships same day
40 999-1343 Screw 5/16-18 x 5/8 hex head stainless steel $1.25 1 ships same day
