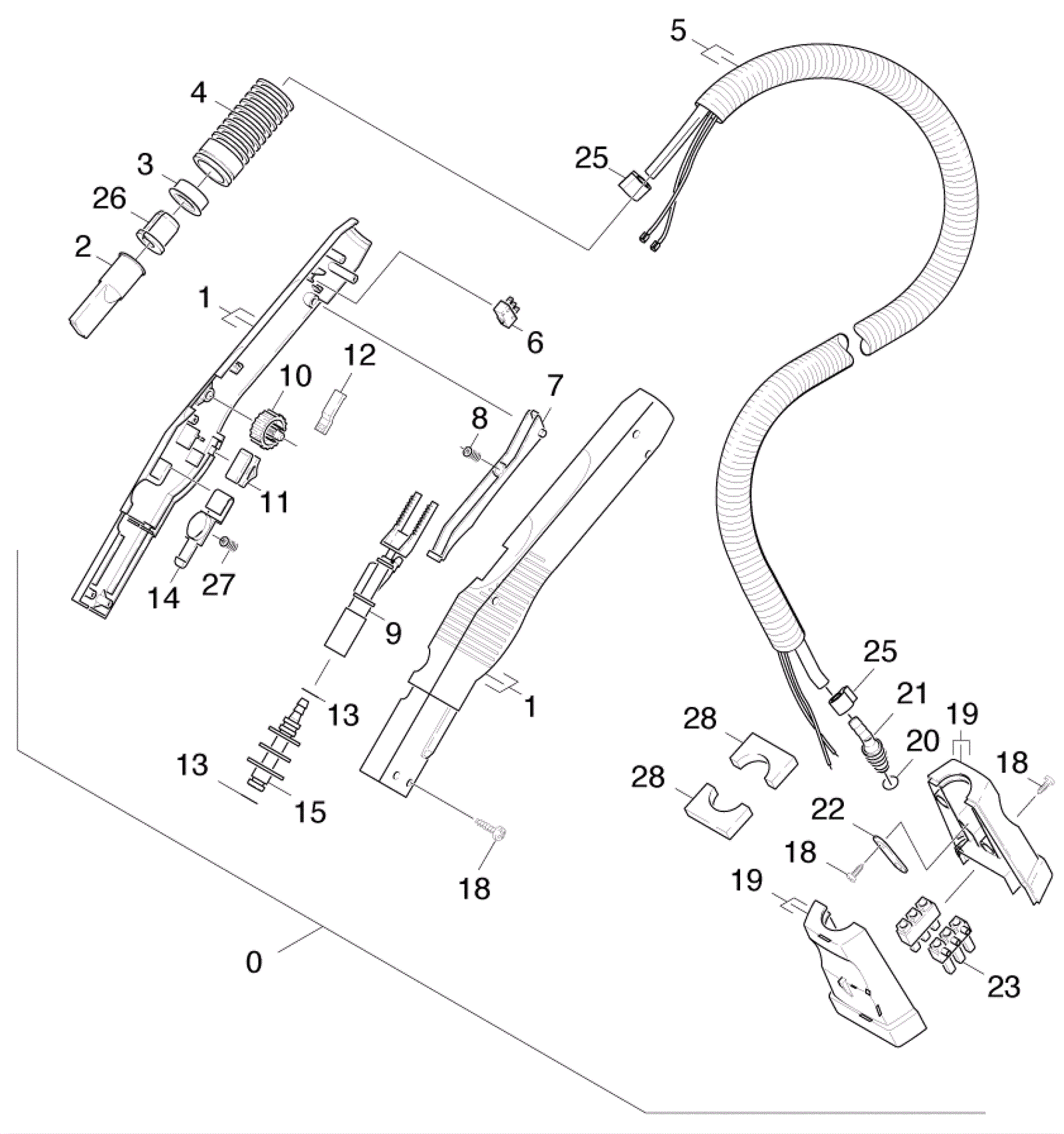

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
173-2902
|
Steam hose (black) (OBSOLETE) |
1 |
(includes 1 thru 28) |
|
1 |
173-2980
|
Handle (black) |
1 |
|
|
2 |
173-2981
|
Diaphragm |
1 |
|
|
3 |
173-2982
|
Diaphragm ring |
1 |
|
|
4 |
173-2983
|
Spring |
2 |
|
|
5 |
173-2984
|
Hose |
1 |
|
|
6 |
173-2985
|
Short-stroke button |
1 |
|
|
7 |
173-2986
|
Clip |
1 |
|
|
8 |
173-2987
|
Pressure spring |
1 |
|
|
9 |
173-2988
|
Valve assembly |
1 |
|
|
10 |
173-2989
|
Knob (yellow) |
1 |
|
|
11 |
173-2990
|
Slider |
1 |
|
|
12 |
173-2991
|
Notch |
1 |
|
|
13 |
173-2903
|
O-ring |
2 |
|
|
14 |
173-2992
|
Hook (yellow) |
1 |
|
|
15 |
173-2993
|
Coupling |
1 |
|
|
18 |
273-9982
|
Screw 3 x 12 |
10 |
|
|
19 |
173-2995
|
Plug shell |
1 |
|
|
20 |
173-2996
|
Gasket |
1 |
|
|
21 |
173-2997
|
Nipple |
1 |
|
|
22 |
173-2998
|
Pull relief |
1 |
|
|
23 |
173-2999
|
Plug |
2 |
|
|
25 |
173-6001
|
Hose clamp |
2 |
|
|
26 |
173-6002
|
Strain relief |
1 |
|
|
27 |
173-6003
|
Helical spring |
1 |
|
|
28 |
173-6004
|
Flat gasket |
2 |
|
|
