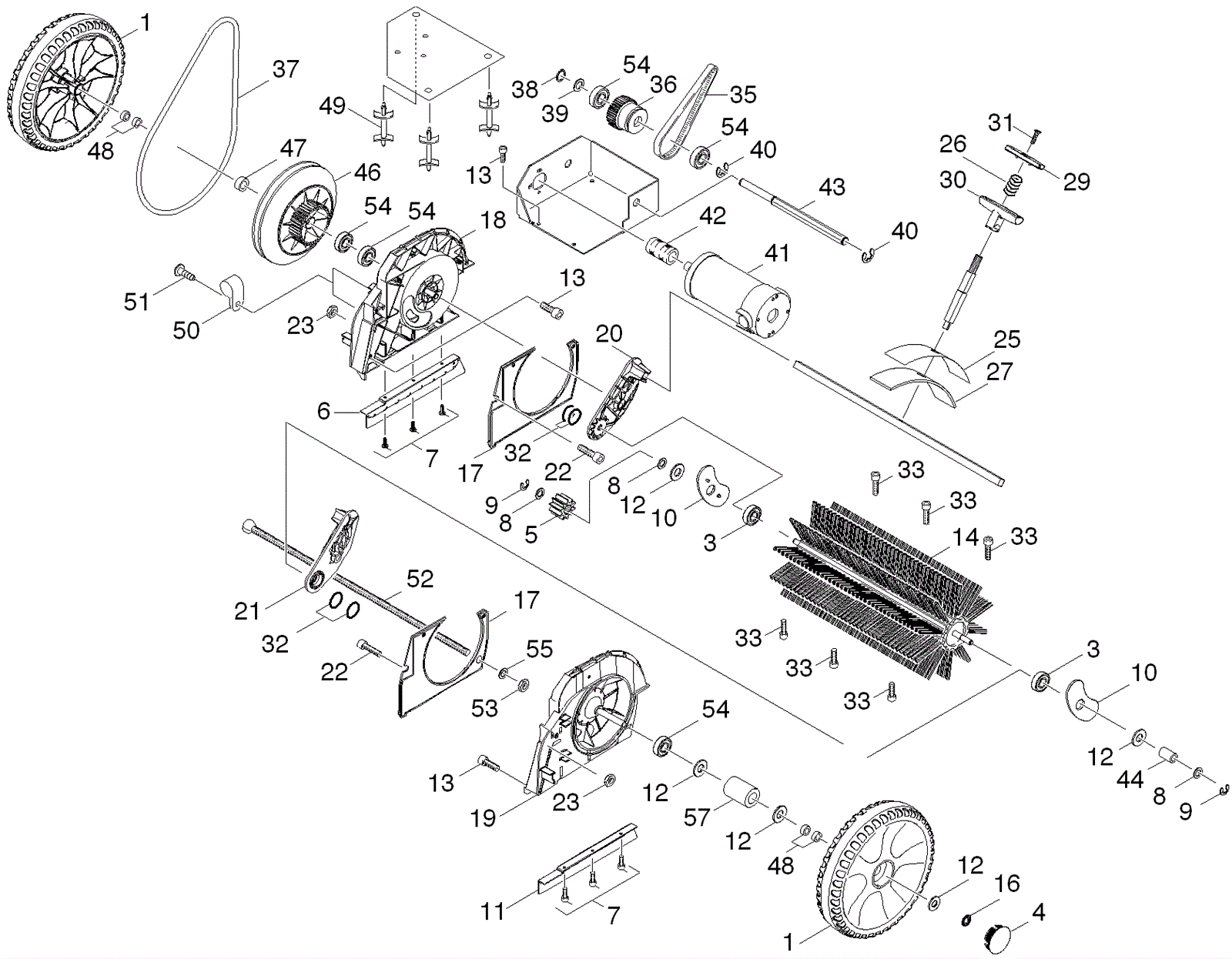

RADIUS 28 Brush and Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6040 Wheel $183.00 2 usually ships 7-19 days
3 273-6041 Ball bearing $23.60 2 usually ships 7-19 days
4 273-6042 Hub cap $13.10 2 usually ships 7-19 days
5 273-6043 Pinion with clutch $90.20 1 usually ships 7-19 days
6 273-6044 Right skirt $20.20 1 usually ships 1-5 days
7 183-0075 Screw 5-16 x 10.9mm $0.90 14 usually ships 8-21 days
8 183-4209 Washer lock $1.66 2 usually ships 1-5 days
9 273-6045 Shim ring $2.56 4 usually ships 7-19 days
10 273-6046 Gasket $11.20 2 usually ships 7-19 days
11 273-6047 Left skirt $22.00 1 usually ships 1-5 days
12 273-6048 Washer $15.70 4 usually ships 7-19 days
13 273-6049 Screw 6-10.9 x 25mm $3.08 6 usually ships 1-5 days
14 173-5383 Center brush - CYLINDRICAL $234.04 1 usually ships 7-19 days
16 N/A Not available Call for price 2 (Ring) usually ships 3-26 days
17 273-6052 Cap $11.90 2 usually ships 1-5 days
18 273-6053 Right axle drum $131.00 1 usually ships 7-19 days
19 273-6054 Left axle drum $131.00 1 usually ships 7-19 days
20 273-6055 Right axle stub $26.30 1 usually ships 7-19 days
21 273-6056 Left axle stub $26.20 1 usually ships 7-19 days
22 273-6057 Screw M6-8.8 x 35mm (OBSOLETE) $1.54 4 usually ships 1-5 days
23 273-6058 Nut M6-1 hex $1.10 4 usually ships 1-5 days
25 273-6059 Plate stainless steel $6.15 1 usually ships 1-5 days
26 273-6060 Spring $3.91 1 usually ships 7-19 days
27 273-6061 Seal $11.20 1 usually ships 1-5 days
29 273-6062 Plate $7.35 1 usually ships 7-19 days
30 273-6063 Tee handle $7.70 1 usually ships 1-5 days
31 273-6064 Screw M5-.8 x 20mm $1.43 1 usually ships 7-19 days
32 273-6065 O-ring $4.10 4 usually ships 1-5 days
33 273-6066 Screw 5-10.9 x 30mm $4.29 6 usually ships 1-5 days
35 273-6067 Toothed belt $43.10 1 usually ships 7-19 days
36 273-6068 Belt pulley $155.39 1 usually ships 1-5 days
37 273-6069 Belt $81.00 1 usually ships 7-19 days
38 183-4072 Washer lock $1.23 1 usually ships 1-5 days
39 183-0226 Washer (Obsolete) $4.18 1 usually ships 8-21 days
40 273-6070 Locking ring $1.27 2 usually ships 7-19 days
41 273-6071 12V brush motor $689.00 1 usually ships 7-19 days
42 273-6072 Toothed belt pulley $192.00 1 usually ships 7-19 days
43 273-6073 Hexagon shaft $86.50 1 usually ships 1-5 days
44 273-6074 Sleeve $33.90 1 usually ships 7-19 days
46 273-6075 Belt pulley $71.00 1 usually ships 7-19 days
47 273-6076 Sleeve $52.50 1 usually ships 1-5 days
48 273-6077 Bearing $24.10 4 usually ships 1-5 days
49 273-6078 Hopper $1.32 3 usually ships 1-5 days
50 273-6079 Cable clip $2.86 2 usually ships 1-5 days
51 183-0108 Screw M4-10.9 x 16mm oval head $1.23 2 usually ships 1-5 days
52 273-6080 Axle $56.50 1 usually ships 7-19 days
53 273-6081 Nut M6-4 hex $1.70 1 usually ships 7-19 days
54 183-0375 Ball bearing $4.74 5 usually ships 8-21 days
55 183-0237 Washer $1.91 1 usually ships 1-5 days
57 273-6082 Sleeve $60.00 1 usually ships 1-5 days
