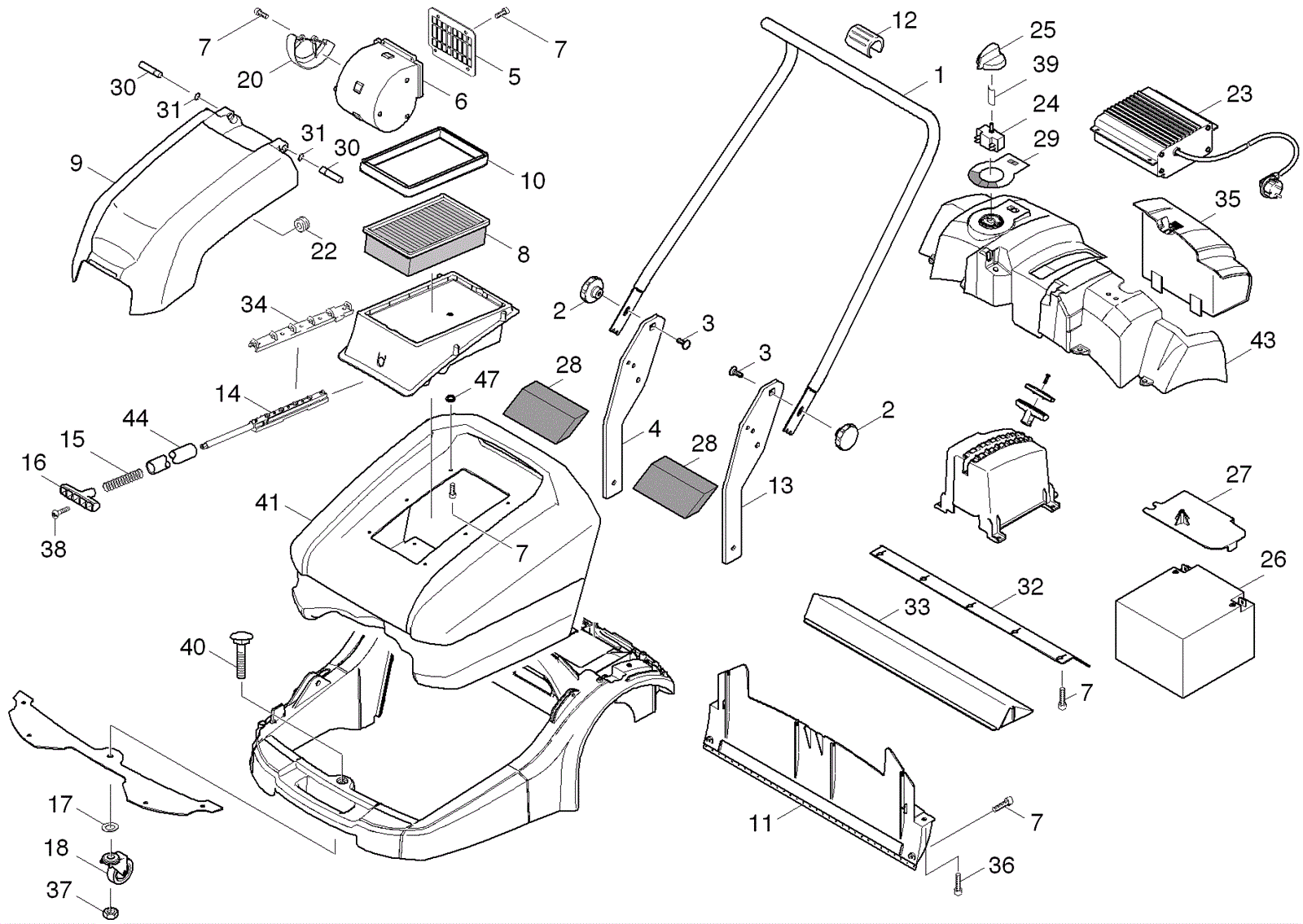

RADIUS 28 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-5377 Handle $184.79 1 usually ships 1-5 days
2 273-6004 Knob $24.72 2 usually ships 14-22 days
3 273-6005 Screw M8-1.25 x 25mm saucer head $3.75 2 usually ships 14-22 days
4 273-6006 Bracket $27.42 1 usually ships 1-5 days
5 173-5379 Filter grill $19.89 1 usually ships 14-22 days
6 273-6007 Blower $420.29 1 usually ships 14-22 days
7 183-0075 Screw 5-16 x 10.9mm $4.62 11 usually ships 15-28 days
8 273-0980 Filter $86.52 1 usually ships 14-22 days
9 173-6322 Tank lid $258.50 1 usually ships 1-5 days
10 273-6009 Gasket $154.19 1 usually ships 1-5 days
11 273-6010 Rear skirt $74.15 1 usually ships 14-22 days
12 173-5382 Handle clamp $5.50 1 usually ships 1-5 days
13 273-6012 Bracket $27.42 1 usually ships 1-5 days
14 273-6013 Filter shaker $32.60 1 usually ships 14-22 days
15 273-6014 Spring $5.50 1 usually ships 14-22 days
16 273-6015 Filter shaker handle $41.69 1 usually ships 14-22 days
17 273-6016 Washer $2.26 2 usually ships 1-5 days
18 173-5376 Caster wheel $80.63 1 usually ships 14-22 days
20 273-6018 Blower cover $19.54 1 usually ships 1-5 days
22 273-6019 Wiring protection sleeve $3.63 1 usually ships 1-5 days
23 173-5374 Battery charger $1,155.81 1 usually ships 14-22 days
24 273-6021 Dust protection switch kit $209.51 1 usually ships 14-22 days
25a 273-6022 Knob $4.30 1 (also need to order 25b) ships same day
25b 273-9368 Knob w/ spring clip $8.06 1 (goes into 25a) ships same day
26 162-0114 12V 50Ah AGM battery $250.48 1 ships same day
27 273-6023 Battery covering cap $34.13 1 usually ships 14-22 days
28 273-6024 Filter cartridge $50.14 2 usually ships 14-22 days
29 273-6025 Control panel foil $83.57 1 usually ships 1-5 days
30 273-6026 Grooved bolt $27.42 2 usually ships 1-5 days
31 183-4209 Washer lock $1.98 2 usually ships 1-5 days
32 273-6028 Skirt $35.08 1 usually ships 14-22 days
33 173-5378 Skirt holder $42.72 1 usually ships 1-5 days
34 183-4206 Filter shaker cover (Obsolete) $8.60 1 usually ships 1-5 days
35 273-6030 Battery cover $64.15 1 usually ships 14-22 days
36 273-0977 Screw M5-10.9 x 30mm $3.96 6 usually ships 14-22 days
37 273-6031 Nut M10-8 hex $3.25 1 usually ships 14-22 days
38 183-0108 Screw M4-10.9 x 16mm oval head $1.54 1 usually ships 1-5 days
39 273-9368 Knob w/ spring clip $8.06 1 ships same day
40 273-6033 Screw M10 x 80mm saucer head $6.24 1 usually ships 1-5 days
41 273-6035 Tank assembly (blue) $347.19 1 usually ships 1-5 days
43a 273-6036 Cover with hinge $175.37 1 usually ships 1-5 days
43b 273-6037 Cover without hinge $141.90 1 usually ships 1-5 days
44 273-6038 Filter shaker tube $33.19 1 ships same day
47 273-6039 Joint ring $1.20 6 usually ships 1-5 days
