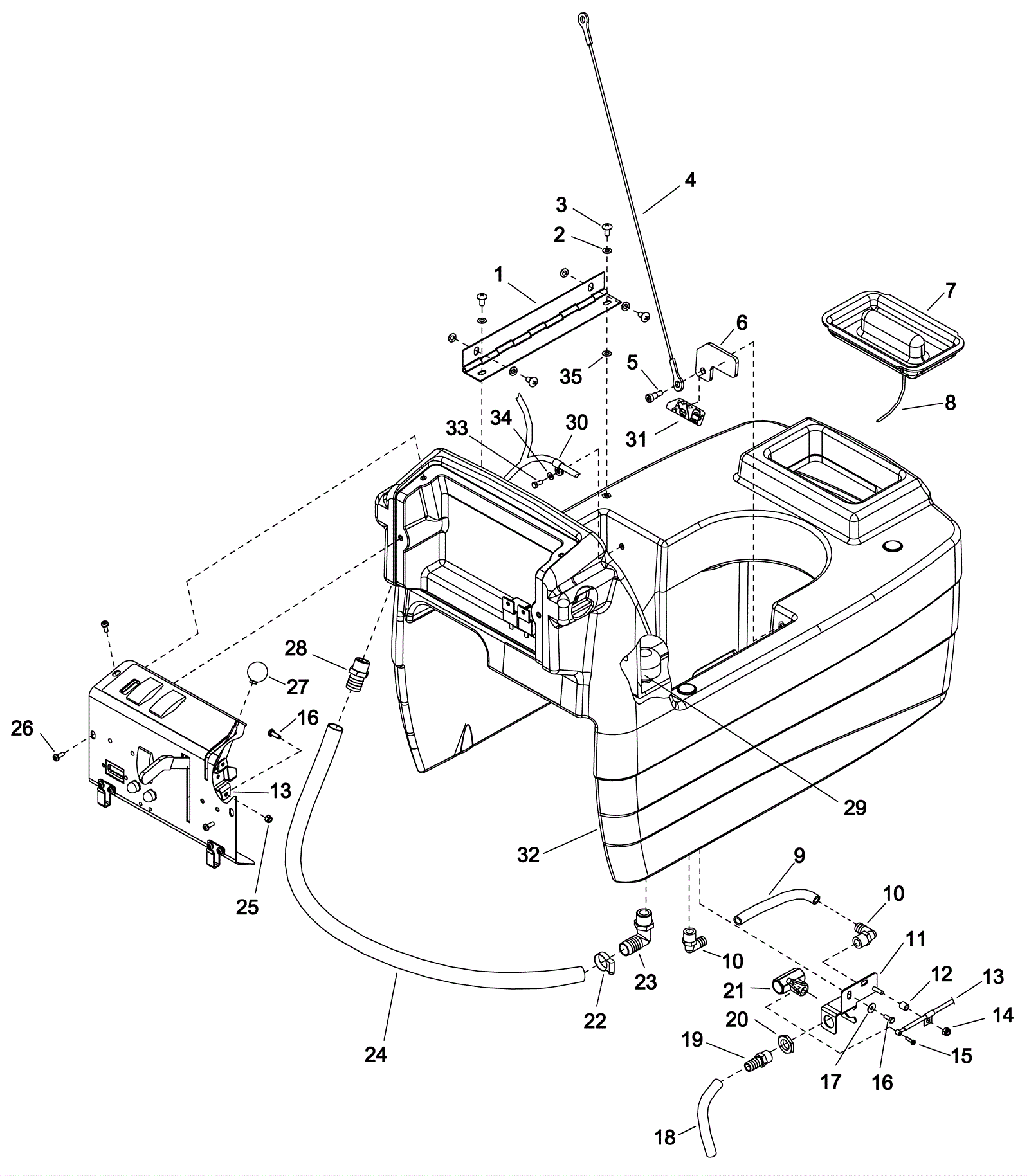

CHAMPION17 Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-7445 17 inch scrubber hinge (OBSOLETE) $48.51 1 usually ships 7-19 days
2 999-0017 Washer 1/4 external star lock $0.99 6 ships same day
3 999-1172 Screw 1/4-20 x 1/2 truss head phillips zinc $0.99 4 ships same day
4 173-7129 Tank cable $101.75 1 usually ships 1-5 days
5 173-5107 Bolt 5/16 x 3/8 shoulder $10.01 2 usually ships 1-5 days
6 173-7446 Tank support bracket $21.12 1 usually ships 1-5 days
7 173-2248 Solution cover $39.82 1 usually ships 7-19 days
8 173-1679 Solution cover cord $6.66 1 usually ships 7-19 days
9 173-8578 Wire bound hose 1/2 x 5 1/2 inch $6.49 1 usually ships 7-19 days
10 173-1072 Hosebarb 3/8 x 1/2 inch $9.24 2 usually ships 7-19 days
11 173-8579 Valve mount bracket $61.60 1 usually ships 7-19 days
12 173-7447 Spacer $7.21 1 usually ships 1-5 days
13 273-0041 Solution cable lever (OBSOLETE) $172.70 1 usually ships 7-19 days
14 273-5681 Nut 10-32 hex nylon lock stainless steel $11.55 1 usually ships 1-5 days
15 173-3906 Screw 10-32 x 1/2 pan head type b stainless steel $4.72 1 usually ships 7-19 days
16 999-1212 Screw 10-32 x 1/2 hex head stainless steel $0.99 3 ships same day
17 999-0998 Washer #10 flat stainless steel $0.99 1 ships same day
18a 173-5330 Hose 3/8 x 1/2 x 12 inch $4.29 1 (all models except SCHC172) usually ships 7-19 days
18b 173-7448 Hose 12 x 15 inch vinyl nylon braid $22.66 1 (SCHC172) usually ships 1-5 days
19a 173-9160 Nylon hosebarb $8.36 1 (all models except SCHC172) usually ships 7-19 days
19b 173-5214 Hosebarb 3/8 x 1/2 inch nylon $14.41 1 (SCHC172) usually ships 7-19 days
20 173-3922 Sealed bulkhead nut $13.31 1 usually ships 7-19 days
21 273-0013 3/8 inch ball valve $64.35 1 usually ships 7-19 days
22 173-1079 Hose clamp (OBSOLETE) $2.06 1 usually ships 7-19 days
23 173-7449 90 degree hosebarb 1/2 x 3/4 $14.63 1 usually ships 7-19 days
24 173-7456 Hose 3/4 ID x .12 x 36 (OBSOLETE) $14.41 1 usually ships 7-19 days
25 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 2 ships same day
26 999-1341 Screw 10-32 x 2 1/2 truss head phillips zinc $1.19 6 ships same day
27 173-4167 Solution lever knob $12.54 1 usually ships 7-19 days
28 173-7450 Hosebarb 1/2 x 3/4 $6.82 1 usually ships 1-5 days
29 173-7451 3/8 inch mesh strainer nickel plated thread $21.56 1 usually ships 7-19 days
30 173-1800 5/16 nylon clamp (OBSOLETE) $0.99 1 usually ships 7-19 days
31 173-7452 Vent and drain decal $2.53 1 usually ships 1-5 days
32a 173-7453 Solution tank (gray) $625.90 1 (all models except HCC172) usually ships 7-19 days
32b 173-7453 Solution tank (gray) $625.90 1 (HCC172) usually ships 7-19 days
33 999-0896 Screw 10-32 x 3/8 round head phillips stainless steel $0.99 1 ships same day
34 173-4807 Washer #10 flat pleated (OBSOLETE) $0.99 1 usually ships 7-19 days
35 173-7455 Washer #10 x 9/16 $2.37 1 usually ships 1-5 days
