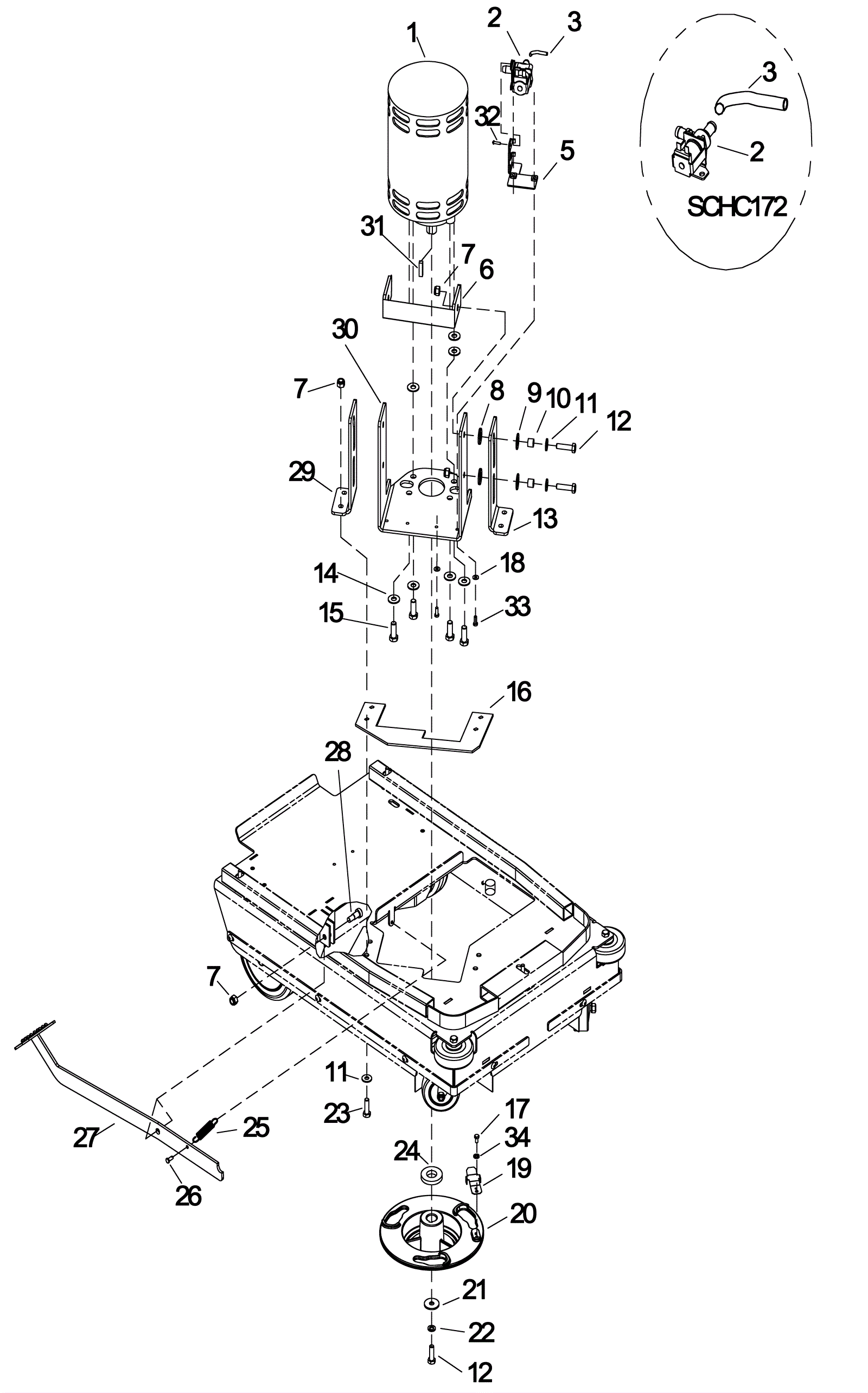

CHAMPION17 Scrub Motor and Lift Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-1574 24V 1HP brush motor assembly $501.50 1 usually ships 1-5 days
2a 273-0040 Solenoid valve $56.10 1 (all models except SCHC172) ships same day
2b 189-0343 24V solenoid valve with hosebarb $120.82 1 (SCHC172) usually ships 1-5 days
3a 173-7355 Hose 3/8 x 3 1/2 nylon braid (OBSOLETE) $1.76 1 (all models except SCHC172) usually ships 7-19 days
3b 173-7356 Hose 1/2 x 4 vinyl $7.26 1 (SCHC172) usually ships 1-5 days
5 173-7357 Solenoid valve bracket $26.18 1 usually ships 1-5 days
6 173-7358 Motor mount stiffener bracket $37.73 1 usually ships 1-5 days
7 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 9 ships same day
8 173-3963 Washer 1/2 thrust $7.32 4 usually ships 7-19 days
9 173-3964 Thrust washer $6.44 4 ships same day
10 173-7359 Bushing $15.51 4 usually ships 7-19 days
11 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 8 ships same day
12 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 5 ships same day
13 173-7360 Motor track bracket $57.20 1 usually ships 1-5 days
14 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 7 ships same day
15 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
16 173-7361 Deck stiffener bracket $23.98 1 usually ships 1-5 days
17 999-1276 Screw 10-32 x 3/8 hex head stainless steel $0.99 1 ships same day
18 999-9100 Washer M5 flat stainless steel $5.83 2 ships same day
19 173-7362 Brush clip spring $14.19 1 usually ships 7-19 days
20 173-9036 Brush assist driver $107.80 1 usually ships 7-19 days
21 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 1 ships same day
22 999-0028 Washer 5/16 split lock plain finish $0.99 1 ships same day
23 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 4 ships same day
24 173-7363 Washer .78 ID 1.63 OD x .197 $17.27 1 usually ships 7-19 days
25 173-5155 Extension spring $12.76 1 usually ships 7-19 days
26 173-1038 Pin Clevis 3/16 x 1/12 $3.87 1 usually ships 1-5 days
27 173-7364 Motor lift lever $93.50 1 usually ships 7-19 days
28 173-7442 Shoulder bolt 3/8 x 1/2 stainless steel $32.89 1 usually ships 1-5 days
29 173-7443 Motor track bracket $56.10 1 usually ships 7-19 days
30 173-7444 Motor mount bracket $163.90 1 usually ships 1-5 days
31 189-0323 Square keyway $35.72 1 ships same day
32 173-4749 Screw M4-.7 x 8mm pan head phillips $1.45 2 usually ships 7-19 days
33 273-5734 Screw M5-.8 x 12mm socket head cap stainless steel $3.41 2 ships same day
34 999-0053 Washer #10 split lock plain finish $0.99 1 ships same day
