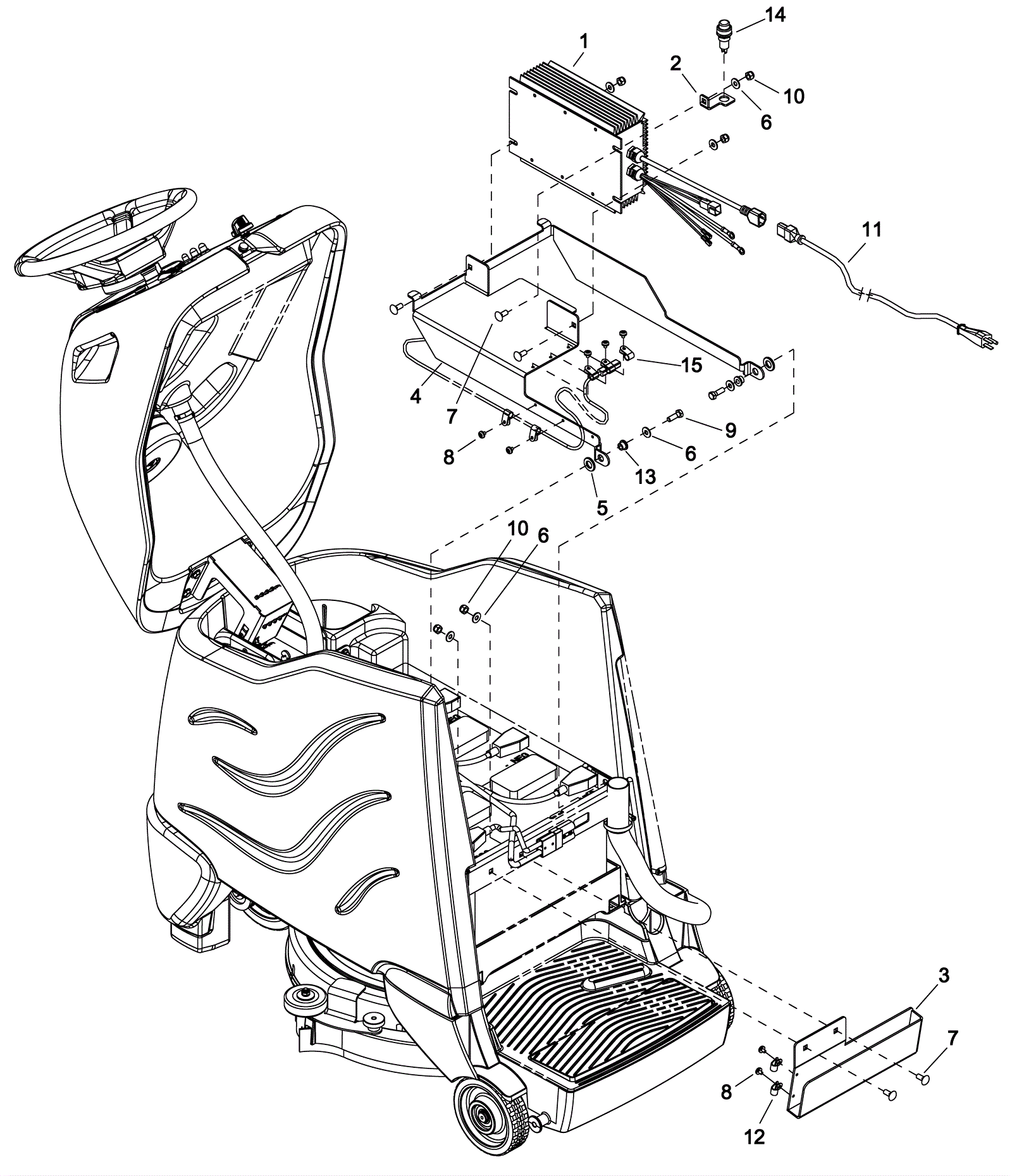

CHARIOT2 ISCRUB22SP Onboard Battery Charger Option Assembly

#PartDescriptionPriceReqNotesAvailability
2 173-7310 Charger meter bracket (OBSOLETE) $31.23 1 usually ships 14-22 days
3 173-7311 Cord wrap bracket $133.10 1 usually ships 14-22 days
4 173-7312 Charger bracket $288.20 1 usually ships 14-22 days
5 173-3963 Washer 1/2 thrust $7.32 2 usually ships 14-22 days
6 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 7 ships same day
7 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 5 ships same day
8 173-8400 Screw 10-32 x 1/4 $1.03 7 usually ships 14-22 days
10 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 5 ships same day
11 173-5940 16/3 onboard charger extension cord $39.16 1 ships same day
12 173-1709 P clamp (OBSOLETE) $2.30 6 usually ships 14-22 days
13 273-5628 Flanged bearing $5.50 2 ships same day
14 173-7313 Battery charge meter (OBSOLETE) $122.10 1 usually ships 14-22 days
15 173-2099 P clamp (OBSOLETE) $1.39 5 usually ships 14-22 days
