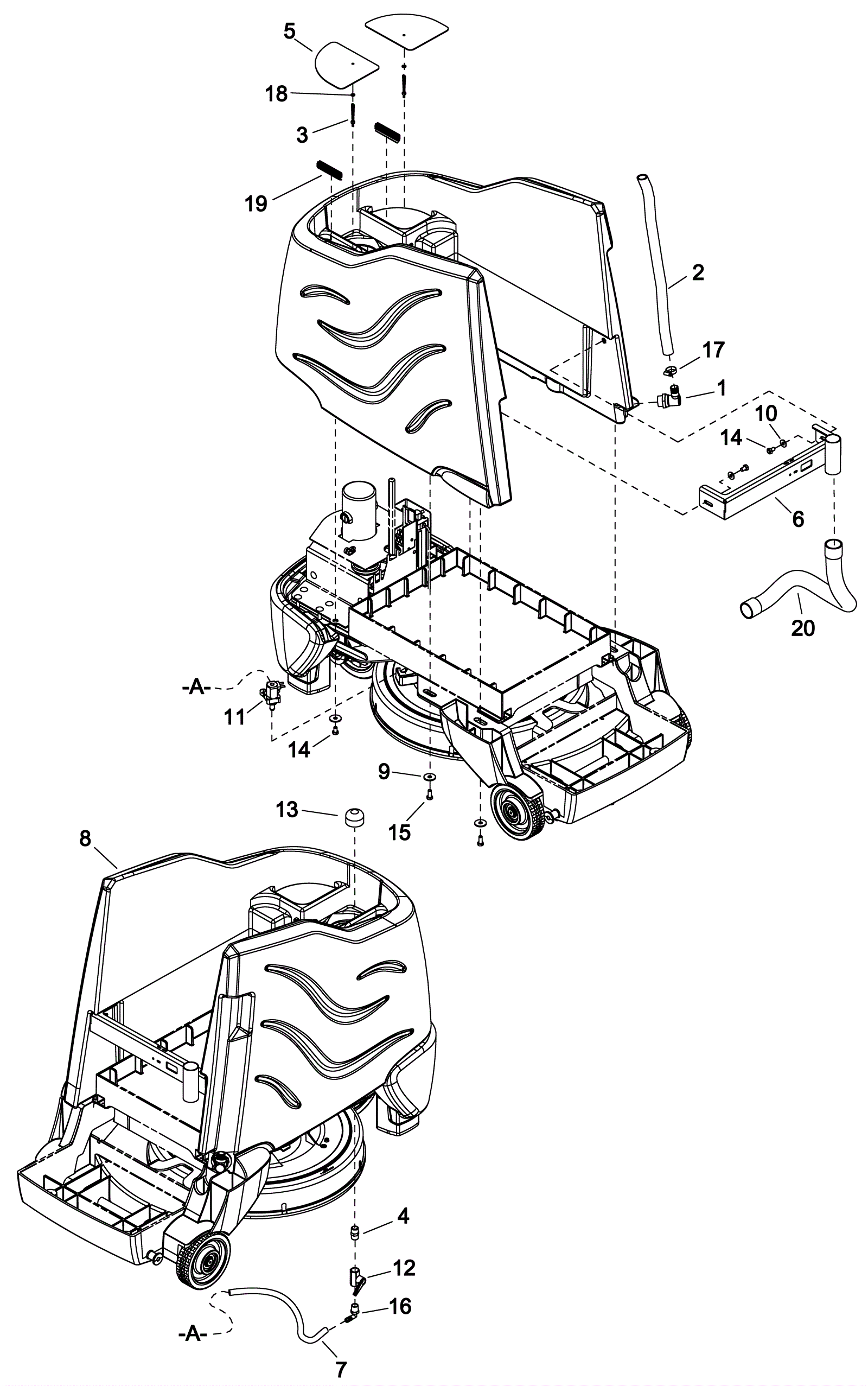

CHARIOT2 ISCRUB20D Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-7266 Elbow $71.21 1 usually ships 11-16 days
2 173-7267 Hose 3/4 x 20 inch (clear) $19.31 1 usually ships 11-16 days
3 173-7268 Elastic lanyard (OBSOLETE) $7.37 2 usually ships 11-16 days
4 173-7269 Nipple 3/8 x 1 1/4 hex (black) $5.50 1 usually ships 11-16 days
5 173-7270 Fill port cover $16.71 2 usually ships 11-16 days
6 173-7271 Tank brace bracket $120.05 1 usually ships 11-16 days
7 173-7272 Hose 3/8 x 18 inch wirebound $25.89 1 usually ships 11-16 days
8 173-7273 Solution tank $508.79 1 usually ships 11-16 days
9 999-1364 Washer 5/16 x 1 fender zinc finish $0.99 5 ships same day
10 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
11 273-0040 Solenoid valve $60.03 1 ships same day
12 273-0013 3/8 inch ball valve $68.86 1 usually ships 11-16 days
13 189-4181 3/8 inch mesh strainer $40.23 1 ships same day
14 173-3962 Bolt 5/16-18 x 1/2 hex head $3.88 4 usually ships 1-5 days
15 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 3 ships same day
16 173-1572 Hosebarb 3/8 x 3/8 inch $10.65 1 usually ships 11-16 days
17 173-2099 P clamp (OBSOLETE) $1.39 1 usually ships 11-16 days
18 999-1158 Washer #6 flat stainless steel $0.99 2 ships same day
19 173-7274 3 inch fill port gasket $4.51 2 usually ships 11-16 days
20 173-7220 Hose assembly 1.25 x 18 inch $92.40 1 ships same day
