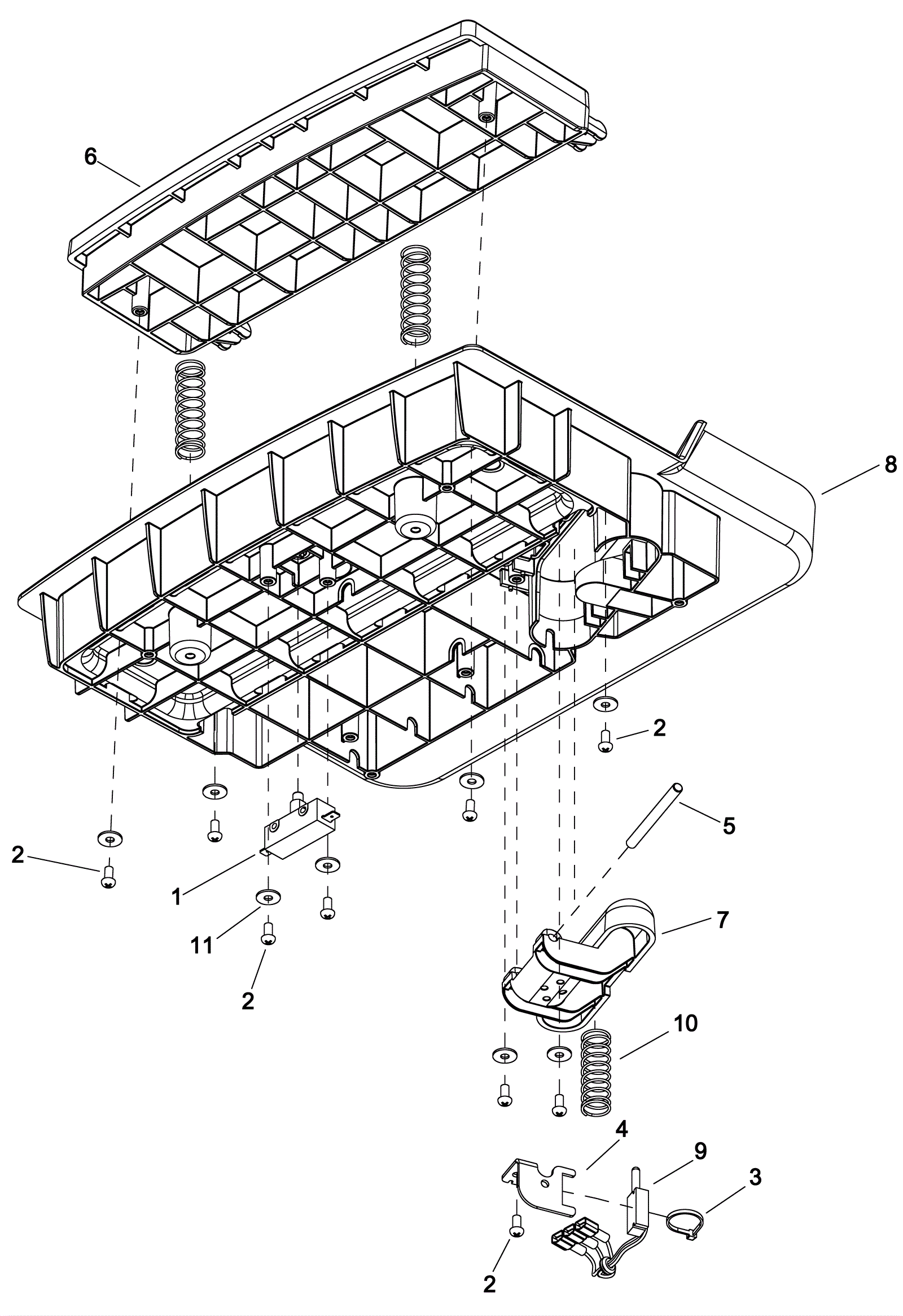

CHARIOT2 ISCRUB22SP Pedal Platform Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-0378 25amp switch replacement $59.50 1 ships same day
2 273-5604 Screw $0.90 9 ships same day
3 173-0822 Wire tie $0.90 1 usually ships 7-19 days
4 173-7212 Linear potentiometer bracket $16.40 1 usually ships 7-19 days
5 173-7213 Steel dowel pin $22.00 1 usually ships 7-19 days
6 173-7214 Heel pedal $70.50 1 usually ships 7-19 days
7 273-7259 Accelerator pedal (yellow) $63.00 1 usually ships 7-19 days
8 173-7216 Operator platform $128.00 1 usually ships 7-19 days
9 173-7217 Linear potentiometer assembly $123.00 1 usually ships 7-19 days
10 173-5493 Spring $9.65 3 usually ships 7-19 days
11 273-5591 Washer M5 flat stainless steel $1.65 8 usually ships 7-19 days
