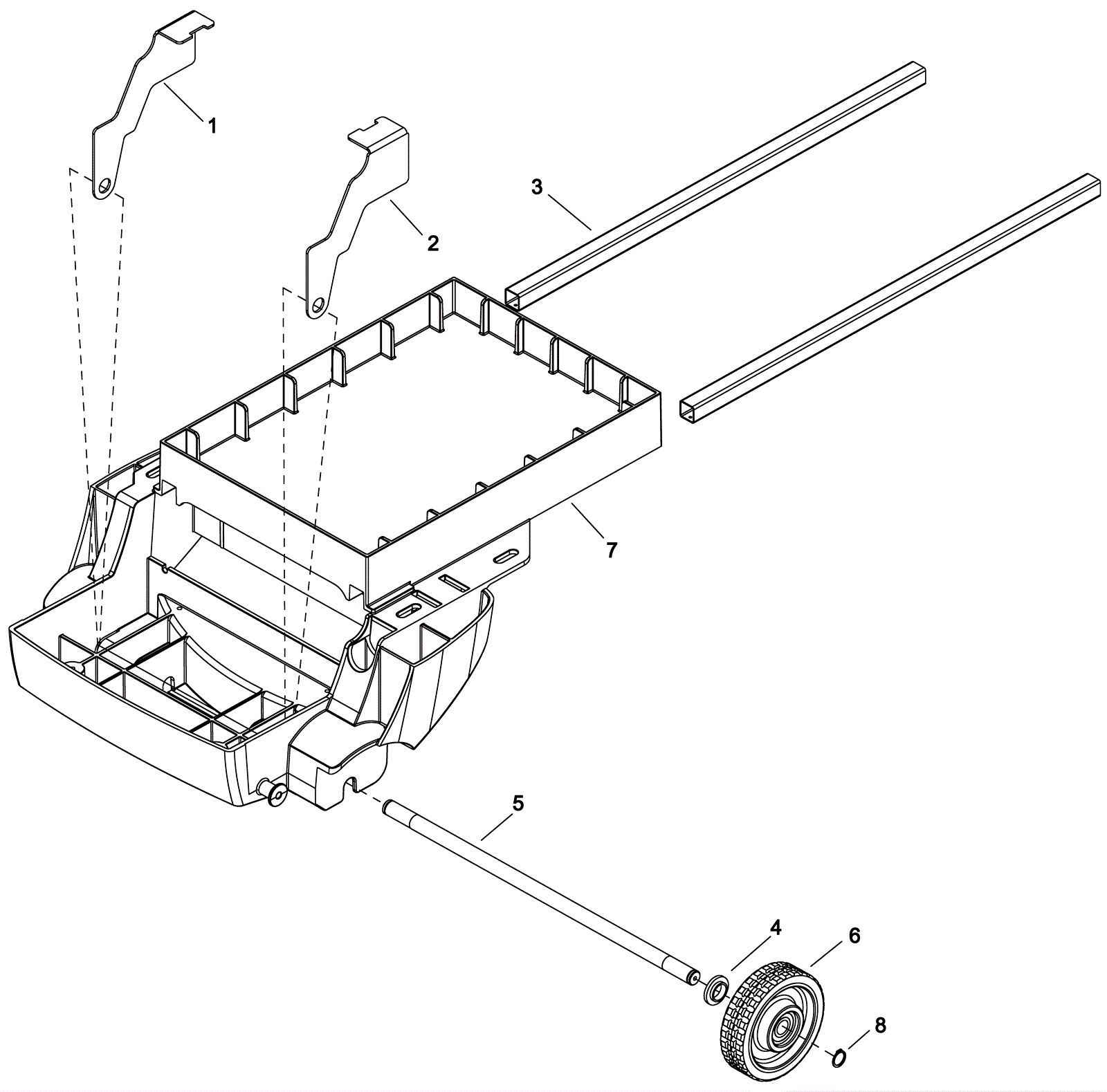

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
173-7205
|
Left hand frame bracket |
$39.67
|
1 |
|
usually ships 11-16 days |
2 |
173-7206
|
Right hand frame bracket |
$43.55
|
1 |
|
usually ships 11-16 days |
3 |
173-7207
|
Frame support tube |
$41.07
|
2 |
|
usually ships 1-5 days |
4 |
173-7208
|
Spacer |
$4.44
|
2 |
|
usually ships 11-16 days |
5 |
173-7209
|
Axle |
$105.35
|
1 |
|
usually ships 11-16 days |
6 |
273-7012
|
Wheel (gray) |
$184.79
|
1 |
|
usually ships 11-16 days |
7 |
173-7211
|
Frame |
$225.15
|
1 |
|
usually ships 11-16 days |
8 |
173-4748
|
External snap ring (OBSOLETE) |
$0.99
|
2 |
|
usually ships 11-16 days |
