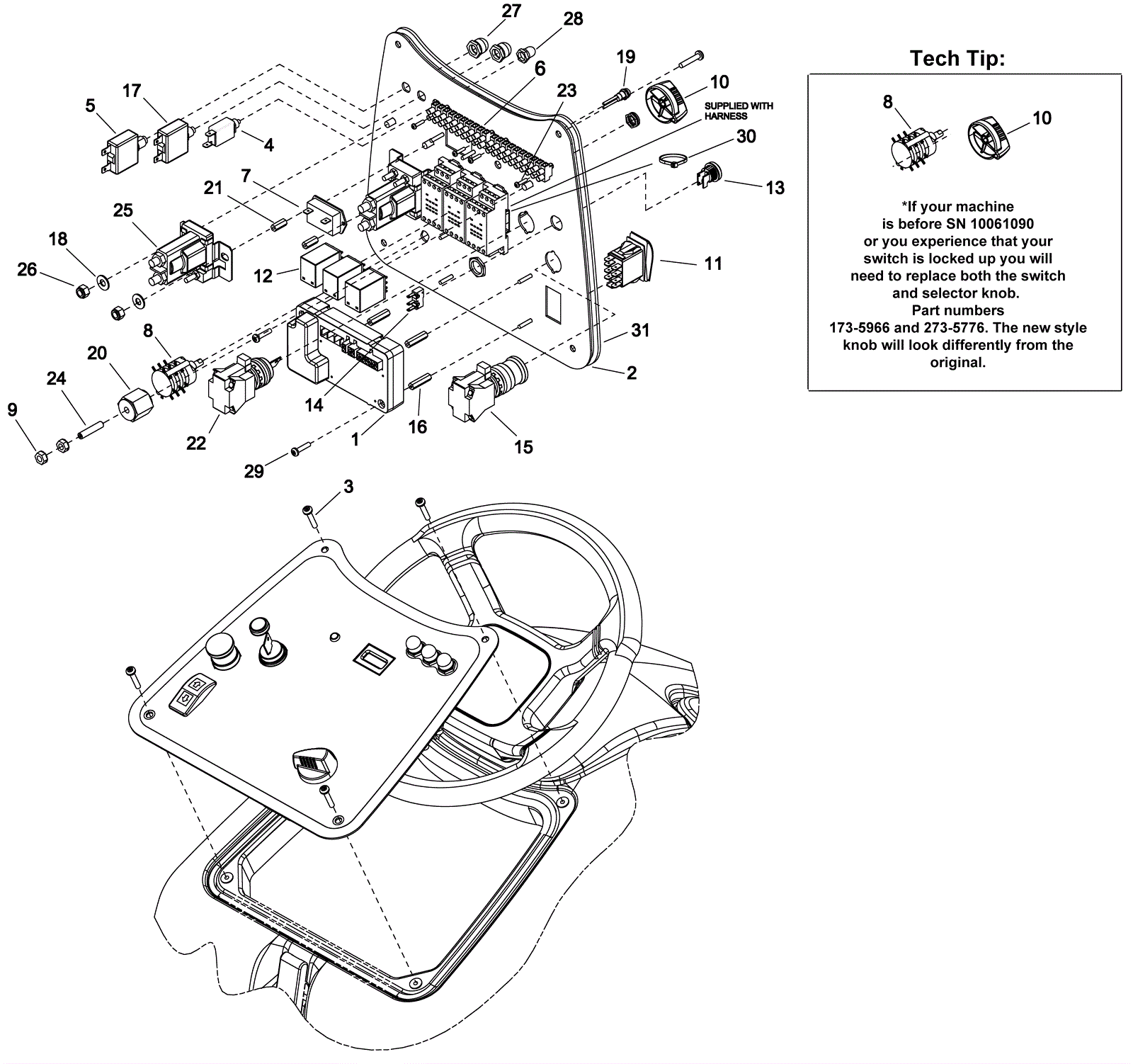

CHARIOT2 ISCRUB22SP Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 273-6472 Controller $626.02 1 ships same day
2 173-5962 Control panel $216.70 1 usually ships 1-5 days
3 173-5963 Screw 10-32 x 1 pan head torx stainless steel $8.80 4 usually ships 14-22 days
4 173-0713 1.5amp circuit breaker $25.74 1 usually ships 14-22 days
5 173-5964 12amp circuit breaker $44.37 1 usually ships 14-22 days
6 173-5965 10 position connector with 8mm pitch $31.13 2 usually ships 1-5 days
7 273-5769 Hour meter $104.71 1 usually ships 14-22 days
9 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 2 ships same day
10 273-5776 Selector knob $17.05 1 (included with 173-7298) (before SN 10061090) (if you experience your switch is locked up you will need to replace both your switch and selector knob - reference 8 and 10) usually ships 14-22 days
11 273-0913 Switch $94.05 1 ships same day
12 273-0912 5amp relay $24.64 3 usually ships 14-22 days
13 273-0914 Button assembly $28.82 1 usually ships 14-22 days
14 273-5780 Micro switch $27.50 1 usually ships 14-22 days
15 273-5774 Emergency stop switch $167.20 1 usually ships 14-22 days
16 173-8248 Spacer $7.81 4 usually ships 14-22 days
17 273-5778 18amp circuit breaker $30.13 1 usually ships 14-22 days
18 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
19 173-5967 Indicator light assembly $87.45 1 (included with 173-7298) usually ships 14-22 days
20 173-1145 Insulated stand-off $22.55 1 usually ships 14-22 days
21 173-1520 Nylon standoff $6.66 2 ships same day
22a 173-8560 Master key switch $328.96 1 usually ships 14-22 days
22b 173-3958 Key (pkg of 2) $29.81 1 ships same day
23 999-1330 Screw 4-40 x 1/2 pan head stainless steel $0.99 4 ships same day
24 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
25 173-1872 100amp relay $90.75 2 usually ships 14-22 days
26 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 4 ships same day
27 273-5770 Push button boot $21.89 2 usually ships 14-22 days
28 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 14-27 days
29 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
30 273-3820 11 inch cable tie $0.41 3 ships same day
31 173-5968 Gasket $8.20 1 usually ships 1-5 days
N/S 273-6472 Controller $626.02 Units built before 05.02.12 ships same day
N/S 273-6473 Controller $731.50 Units built after 05.02.12 ships same day
