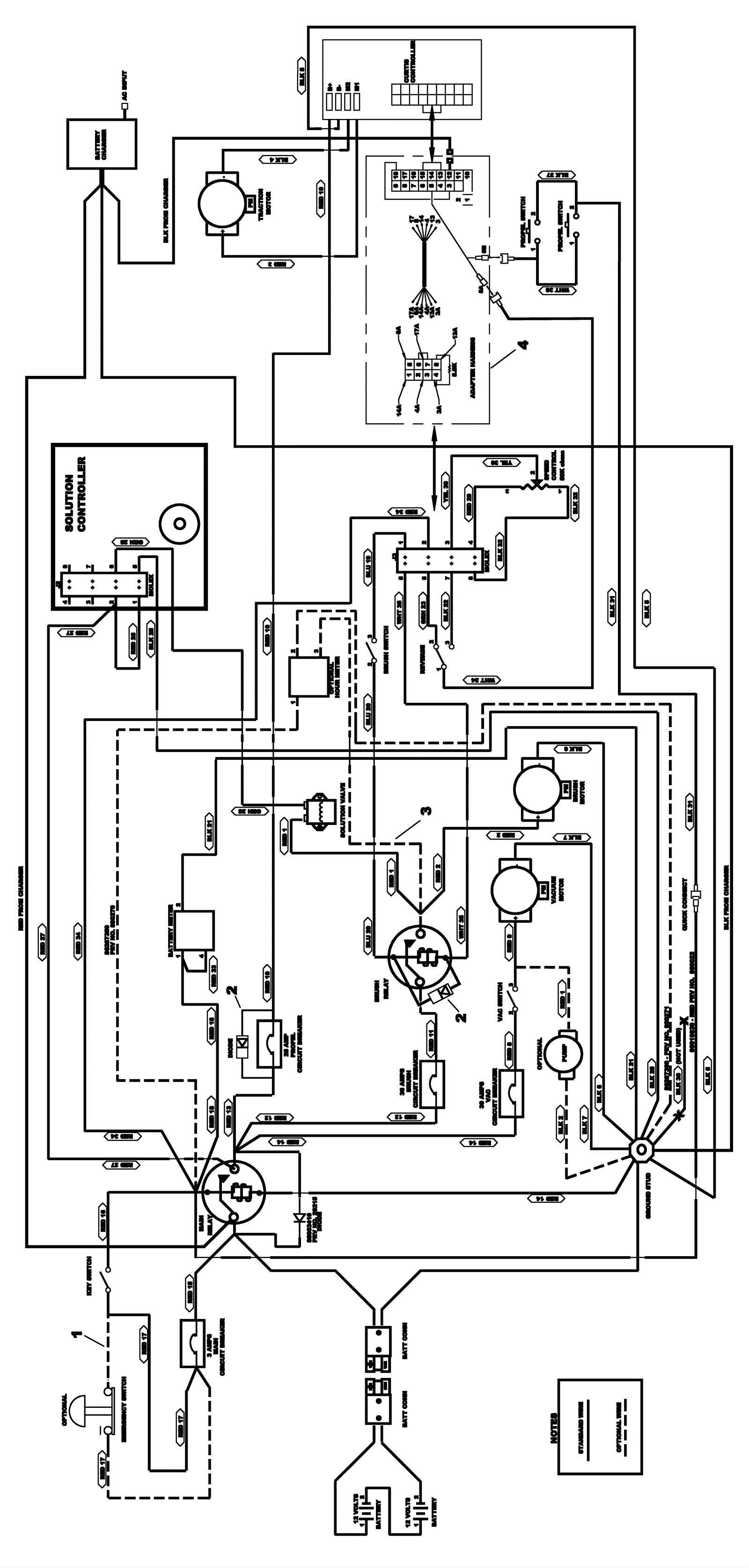

SABER DELUXE 20T Wiring Diagram - Traction with Onboard Charger

#PartDescriptionPriceReqNotesAvailability
173-1532 16 inch strip wire (red) $16.39 1 usually ships 1-5 days
173-1716 Diode assembly $53.79 2 usually ships 7-19 days
173-3132 22 inch wire (red) $14.30 1 usually ships 1-5 days
173-5946 Adapter harness $79.75 1 usually ships 1-5 days
