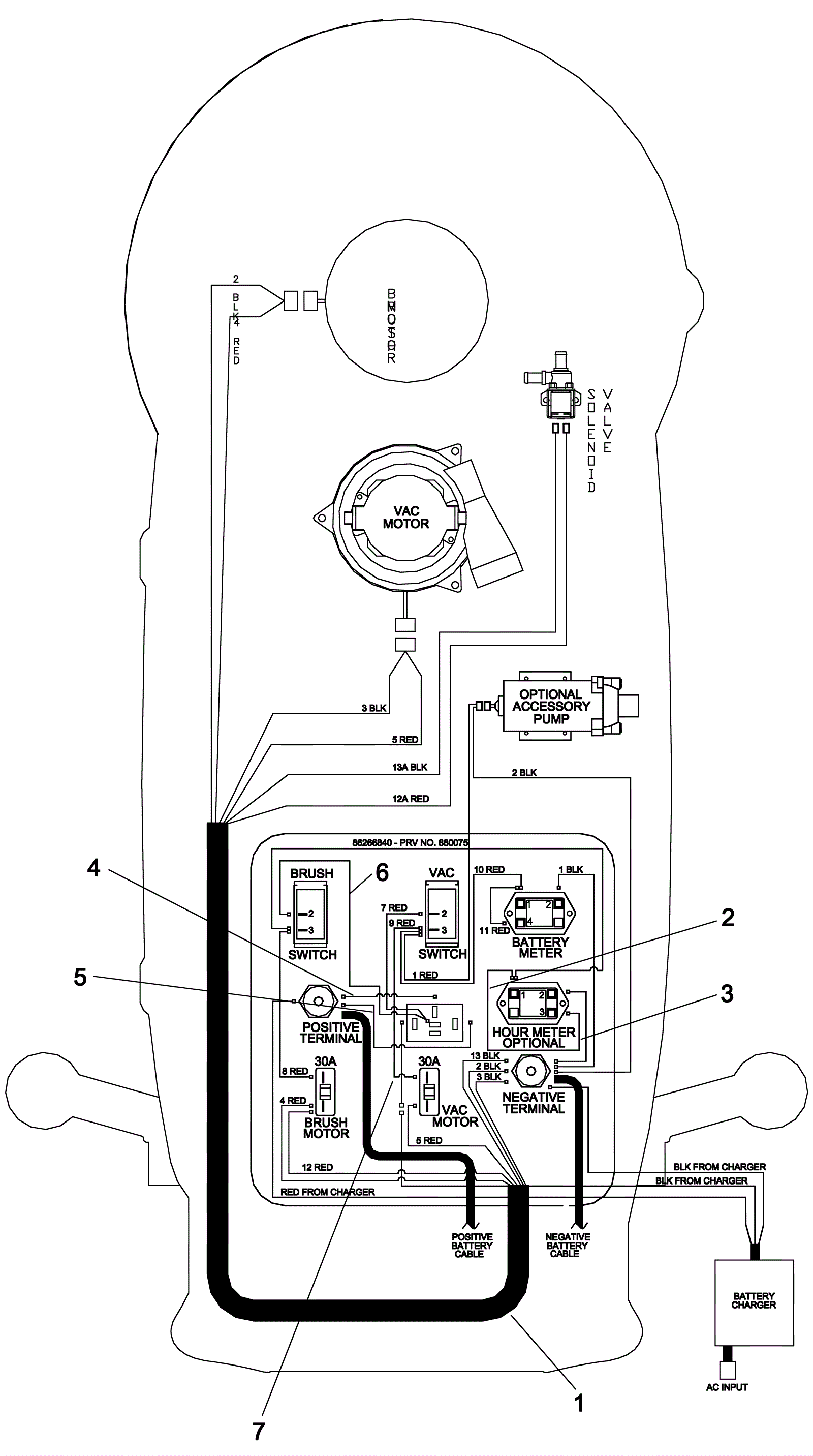

Control Panel Wiring Diagram with Onboard Battery Charger

#PartDescriptionPriceReqNotesAvailability
1 173-3203 Main harness $236.50 1 usually ships 1-5 days
2 173-3131 4 inch wire (red) $11.11 1 usually ships 1-5 days
3 173-3135 6 inch wire (black) $11.99 1 usually ships 1-5 days
4 173-5942 14 inch wire 76081 x 76064 (red) $26.73 1 usually ships 1-5 days
5 173-5943 14 inch wire (red) $21.89 1 usually ships 1-5 days
6 173-5944 14 inch wire (red) $29.59 1 usually ships 1-5 days
7 173-5945 2 inch wire (yellow) $31.13 1 usually ships 1-5 days
