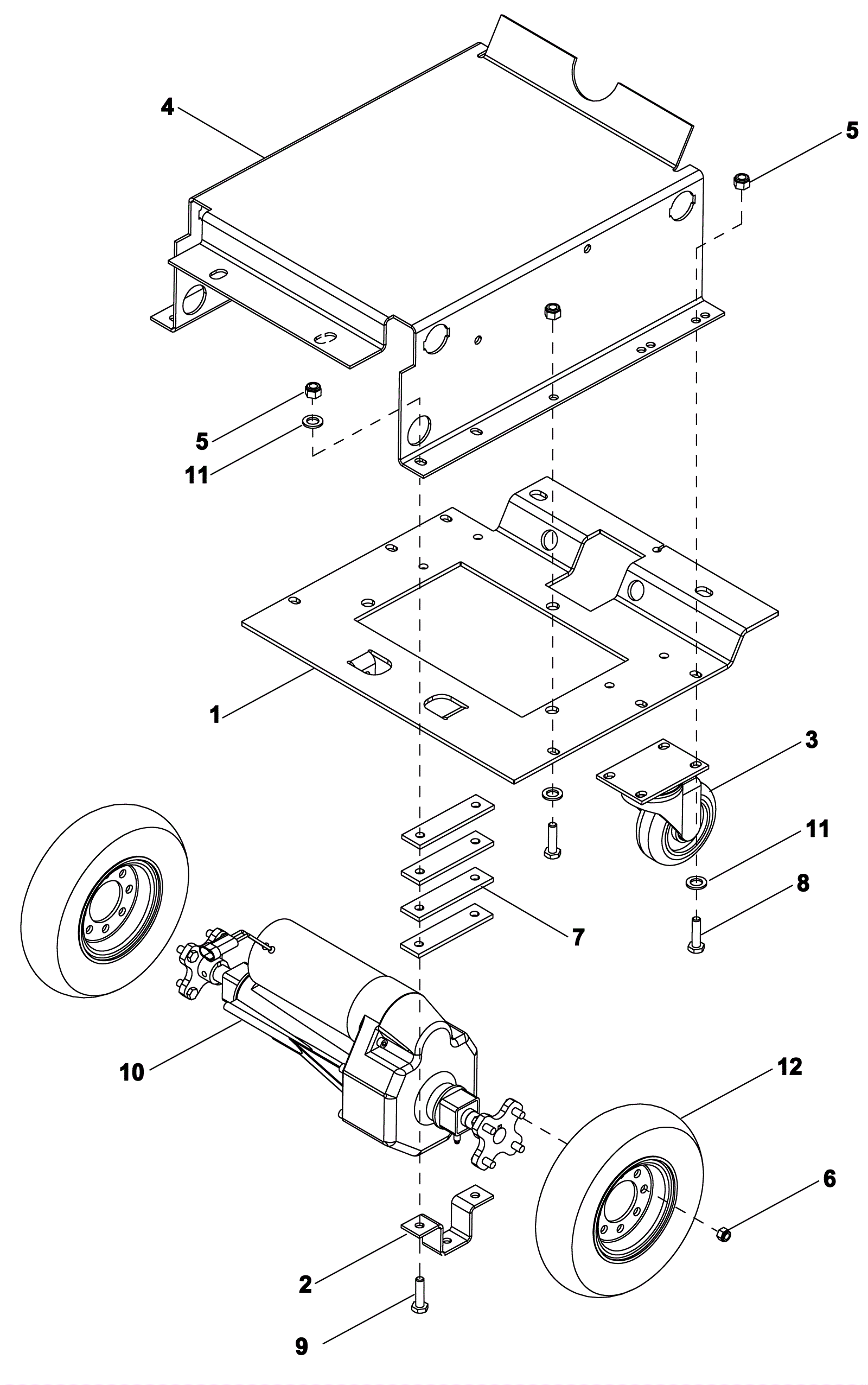

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
173-3194
|
Frame bracket |
$149.60
|
1 |
|
usually ships 1-5 days |
2 |
173-8343
|
Transaxle mounting bracket (OBSOLETE) |
$49.83
|
2 |
|
usually ships 7-19 days |
3 |
173-3195
|
Swivel caster wheel |
$124.30
|
2 |
|
ships same day |
4 |
173-4123
|
Main frame |
$504.90
|
1 |
|
usually ships 1-5 days |
5 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
14 |
|
ships same day |
6 |
999-1142
|
Nut 5/16-24 nylock insert lock zinc plated |
$0.99
|
8 |
|
ships same day |
7 |
173-3198
|
Spacer plate |
$32.12
|
8 |
|
usually ships 1-5 days |
8 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
$0.99
|
10 |
|
ships same day |
9 |
999-0162
|
Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated |
$0.99
|
4 |
|
ships same day |
10a |
173-5936
|
24V transaxle |
$2,150.50
|
1 |
|
usually ships 1-5 days |
10b |
173-8344
|
24V transaxle brush set |
$159.50
|
1 |
|
usually ships 7-19 days |
10c |
173-5280
|
Transaxle wheel hub |
$96.80
|
1 |
|
usually ships 1-5 days |
10d |
173-8346
|
Woodruff key |
$13.64
|
1 |
|
usually ships 7-19 days |
11 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
14 |
|
ships same day |
12 |
273-0953
|
Foam filled wheel |
$228.80
|
2 |
|
usually ships 7-19 days |
