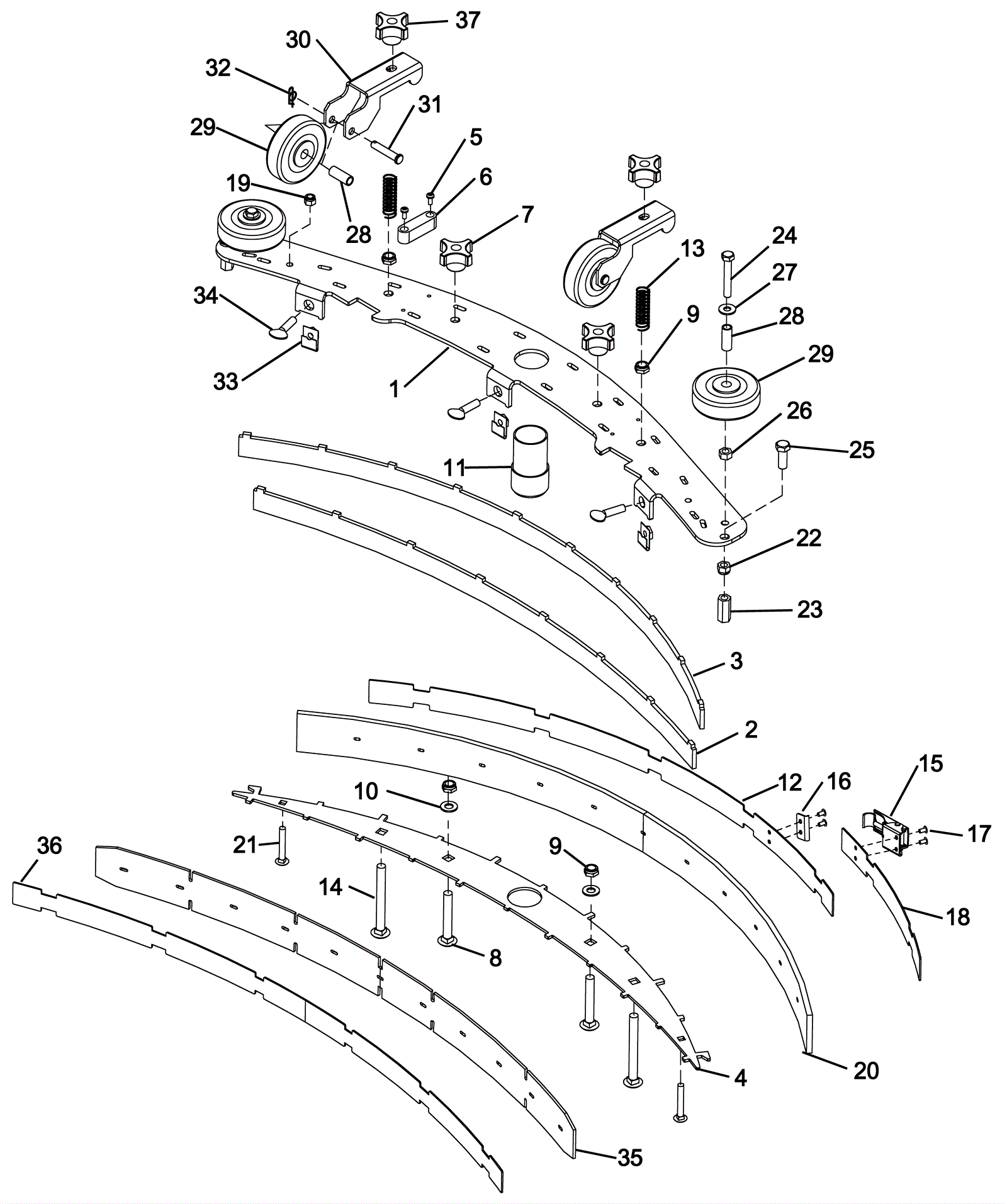

SABER DELUXE 20T Squeegee Assembly - Deluxe - After SN 1000121942

#PartDescriptionPriceReqNotesAvailability
1 173-5932 32 inch top squeegee plate $188.10 1 usually ships 7-19 days
2 173-5933 Front squeegee plate $39.93 1 usually ships 7-19 days
3 173-5934 Rear squeegee plate $62.70 1 usually ships 7-19 days
4 173-5935 32 inch bottom squeegee plate $122.10 1 usually ships 7-19 days
5 173-2824 Screw 8-32 x 3/8 phillips head thread cutting F plated $1.28 2 usually ships 7-19 days
6 164-1136 Squeegee level $13.15 1 usually ships 8-23 days
7 173-1025 Knob $21.12 2 usually ships 7-19 days
8 999-0894 Screw 3/8-16 x 2 1/2 carriage head stainless steel $3.61 2 ships same day
9 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 4 ships same day
10 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 2 ships same day
11 173-8331 Vacuum hose intake tube $54.89 1 usually ships 7-19 days
12 173-3143 Rear squeegee band $75.35 1 usually ships 7-19 days
13 189-0353 Compression spring $15.65 2 usually ships 7-19 days
14 999-1399 Screw 3/8-16 x 3 1/2 carriage head stainless steel $7.84 2 ships same day
15 173-0412 Squeegee strap latch $47.20 1 usually ships 7-12 days
16 170-7029 Keeper $3.75 1 ships same day
17 173-2797 Rivet $1.57 4 usually ships 7-19 days
18 173-3144 Rear squeegee band $50.71 1 usually ships 7-19 days
19 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
20 173-3146 Squeegee blade 35 inch linatex rear $128.70 1 usually ships 7-19 days
21 999-1400 Screw 1/4-20 x 1 3/4 carriage head stainless steel $5.50 2 ships same day
22 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 2 ships same day
23 173-3934 Nut 3/8-16 hex coupling stainless steel $23.98 2 usually ships 7-19 days
24 999-0893 Screw 5/16-18 x 2 hex head stainless steel $0.99 2 ships same day
25 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
26 999-0069 Nut 5/16-18 hex $0.99 2 ships same day
27 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
28 173-1634 Bushing $11.55 4 usually ships 7-19 days
29a 173-1630 3 inch rubber wheel $5.50 4 ships same day
30 173-8333 Squeegee wheel bracket $37.40 2 usually ships 7-19 days
31 173-3181 Clevis pin $7.10 2 ships same day
32 173-1480 Cotter ring $2.12 2 ships same day
33 173-3935 Nut 5/16-18 captive jam (OBSOLETE) $5.50 3 usually ships 7-19 days
34 173-3940 Screw 5/16-18 x 1 thumb type p stainless steel $16.39 3 usually ships 7-19 days
35 173-3145 Squeegee blade 31 inch linatex front (3 slots) $92.40 1 usually ships 7-19 days
36 173-3142 Front squeegee band $79.20 1 usually ships 7-19 days
37 173-4119 Knob $86.35 2 usually ships 7-19 days
