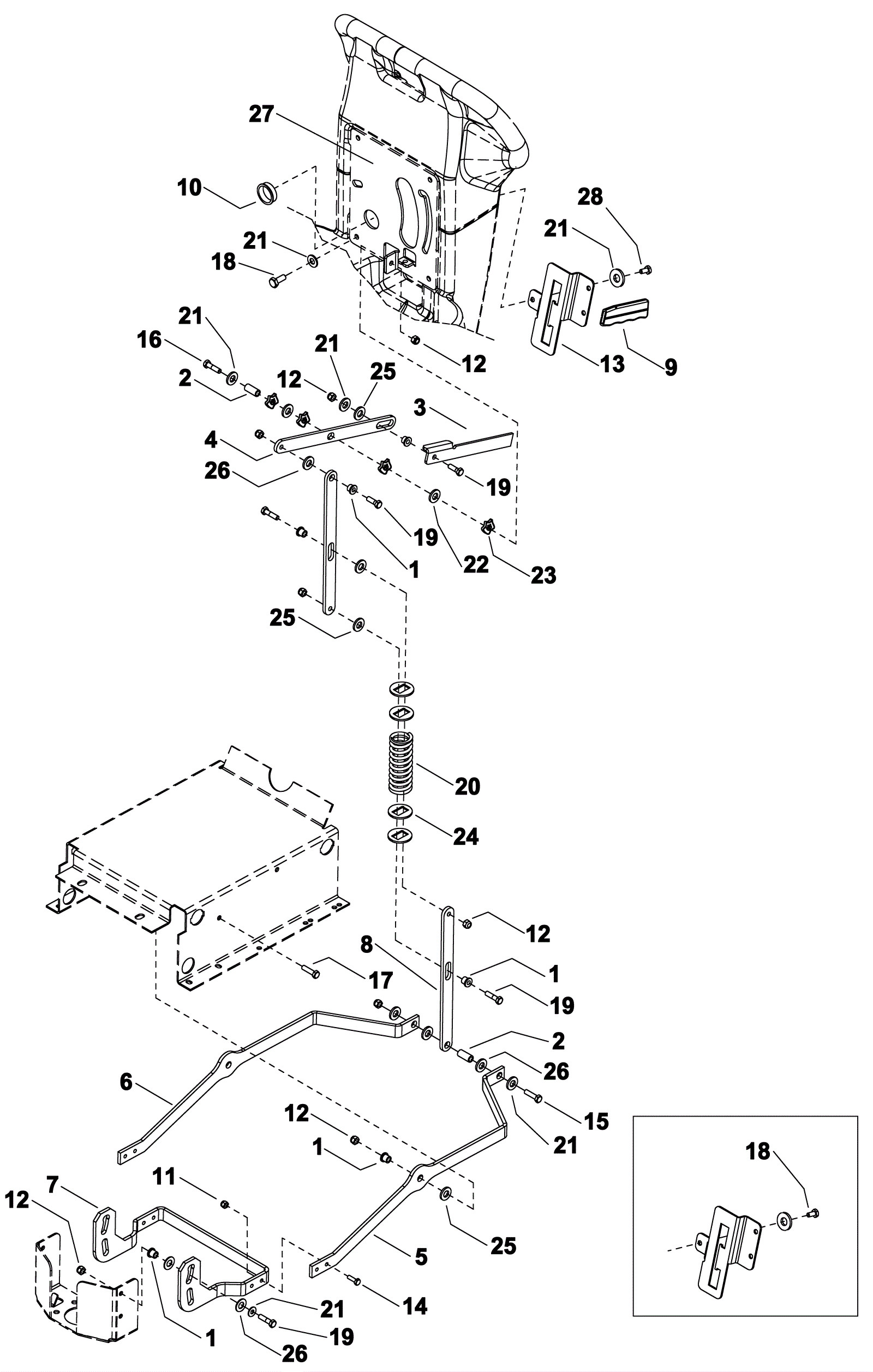

SABER DELUXE 20T Scrub Head Lift Assembly - Traction

#PartDescriptionPriceReqNotesAvailability
1 173-3116 Flanged bearing $8.47 10 usually ships 7-19 days
2 173-3117 Bearing $8.75 2 usually ships 1-5 days
3 173-3118 Lift lever bracket $48.07 1 usually ships 1-5 days
4 173-3120 Lift lever bracket $51.59 1 usually ships 1-5 days
5 173-3119 Left lifting bracket $130.90 1 usually ships 1-5 days
6 173-3121 Right lifting bracket $132.00 1 usually ships 1-5 days
7 173-5918 Mounting bracket $249.70 1 usually ships 1-5 days
8 173-5919 Tensioner bar $66.00 2 usually ships 1-5 days
9 173-1169 Flat bar grip 3/16 x 1 inch $9.08 1 usually ships 1-5 days
10 173-1681 Grommet $0.99 1 usually ships 7-19 days
11 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
12 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 12 ships same day
13 173-5920 Position plate $93.50 1 usually ships 1-5 days
14 999-9072 Bolt 1/4-20 x 1 hex head cap $7.32 4 ships same day
15 999-0591 Bolt 5/16-18 x 1 1/2 hex full thread grade 5 zinc plated $0.99 1 ships same day
18 999-1052 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated $0.99 2 ships same day
19 999-0162 Bolt 5/16-18 x 1 1/4 hex head grade 5 zinc plated $0.99 8 ships same day
20 173-8308 Compression spring $55.55 1 usually ships 7-19 days
21 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 13 ships same day
22 173-2581 Washer flat $1.03 2 usually ships 7-19 days
23 173-2571 Washer 1/2 x .125 wave $3.82 4 usually ships 7-19 days
24 173-8307 Rectangular hole washer $15.73 4 usually ships 1-5 days
25 173-3963 Washer 1/2 thrust $7.32 5 usually ships 7-19 days
26 173-3964 Thrust washer $6.44 11 ships same day
27 173-3125 Tower bracket $172.70 1 usually ships 1-5 days
28 173-3962 Bolt 5/16-18 x 1/2 hex head $3.33 3 usually ships 1-5 days
