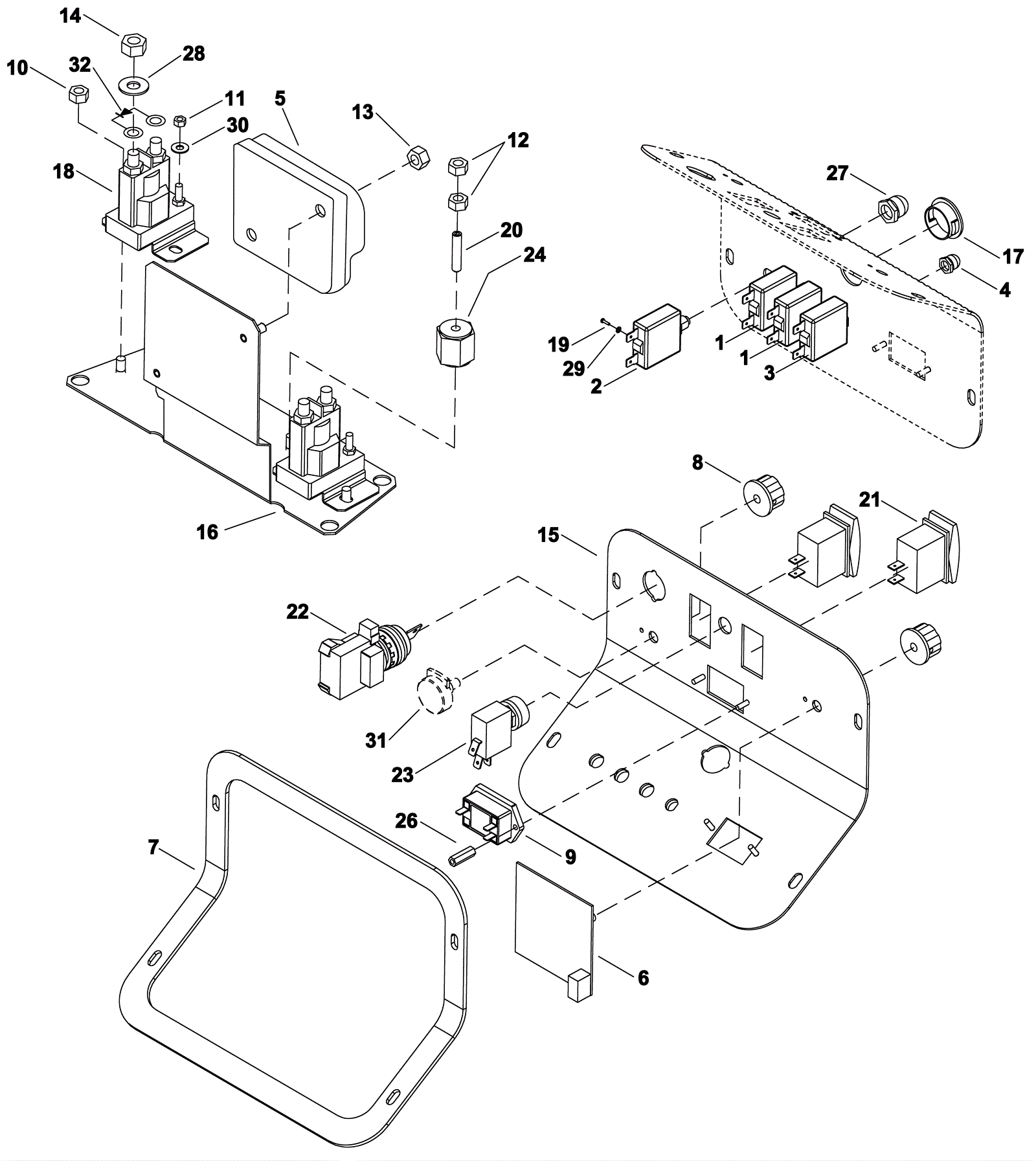

SABER DELUXE 20T Electrical Panel Assembly - Traction

#PartDescriptionPriceReqNotesAvailability
1 991-1629 35amp circuit breaker $11.54 2 ships same day
2 991-1632 25amp circuit breaker $7.91 1 usually ships 14-30 days
3 991-1624 3amp circuit breaker $15.51 1 ships same day
4 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 11-24 days
5 173-2847 24V curtis controller $602.80 1 usually ships 7-19 days
6 173-1507 Circuit board $222.20 1 ships same day
7 173-3139 Electrical panel gasket $28.93 1 usually ships 1-5 days
8 189-0315 Knob with set screw $69.54 2 usually ships 11-24 days
9 189-0316 24V battery charger meter $336.88 1 usually ships 11-24 days
10 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
11 173-2472 Nut 10-32 with star washer $0.99 4 usually ships 1-5 days
12 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 2 ships same day
14 999-0430 Nut 5/16-18 hex jam plain finish $0.99 4 ships same day
15 173-5915 Electrical panel plate $134.20 1 usually ships 1-5 days
16 173-5916 Electrical mounting plate $55.00 1 usually ships 1-5 days
17 173-1514 Hole plug $4.66 1 usually ships 1-5 days
18 173-4578 24V solenoid relay $132.00 2 usually ships 7-19 days
19 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 6 ships same day
20 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
21 189-0319 2 position rocker switch $59.42 2 usually ships 1-5 days
22a 189-0320 Key switch $51.92 1 usually ships 7-19 days
22b 173-3958 Key (pkg of 2) $29.81 1 ships same day
23 173-0471 Switch $47.52 1 usually ships 7-19 days
24 173-1145 Insulated stand-off $22.55 1 usually ships 7-19 days
26 173-1786 1/2 inch standoff $6.60 2 usually ships 1-5 days
27a 173-1522 3/8 inch circuit breaker boot $25.30 3 ships same day
27b 991-5157 3/8 inch circuit breaker boot $2.11 3 (NON-OEM) ships same day
28 999-0028 Washer 5/16 split lock plain finish $0.99 4 ships same day
29 999-0051 Washer #6 medium split lock $0.99 6 ships same day
30 999-0053 Washer #10 split lock plain finish $0.99 4 ships same day
31 173-1523 Potentiometer $73.76 1 usually ships 7-19 days
32 189-0372 Diode assembly $148.58 1 usually ships 11-24 days
