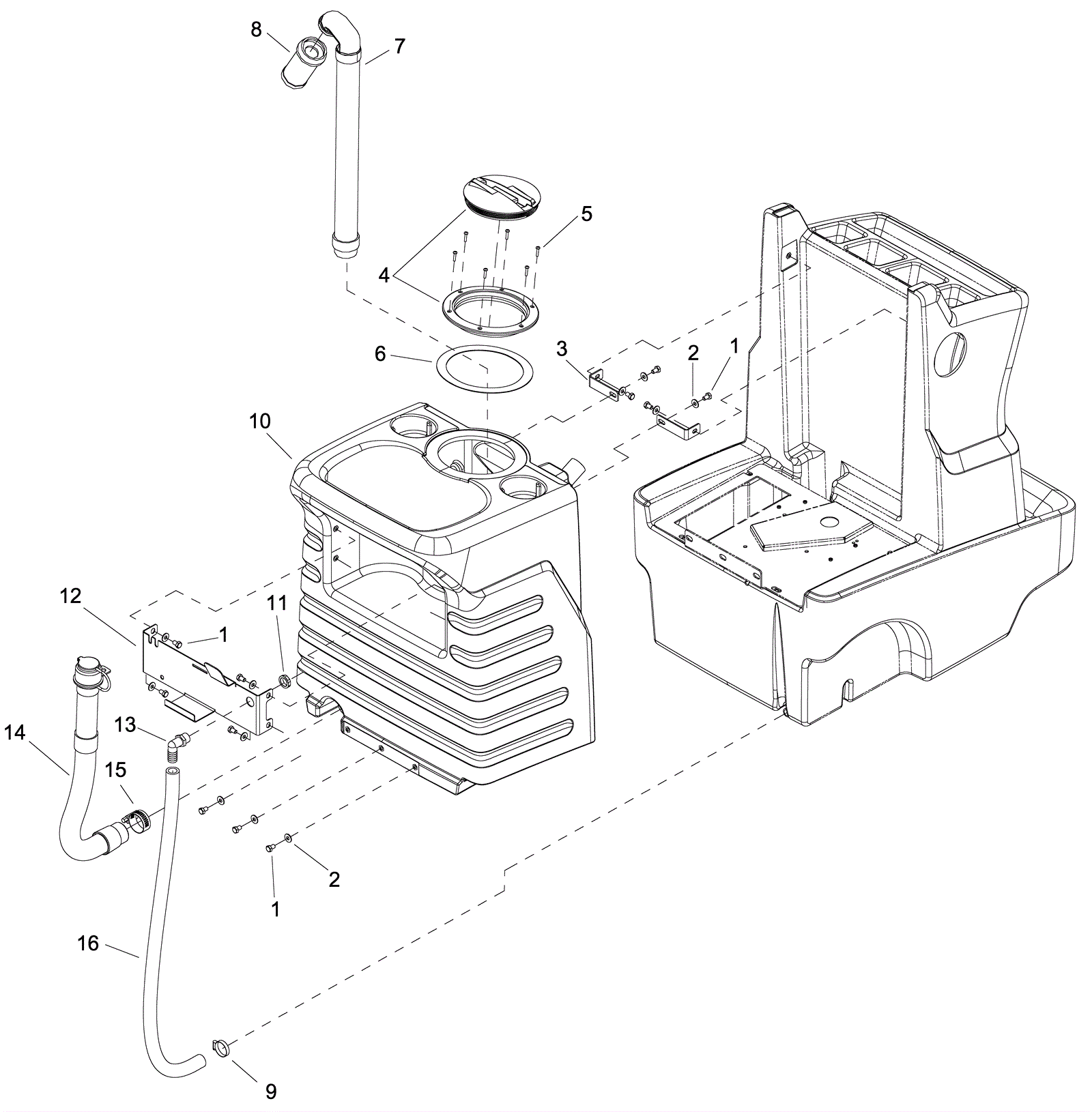

COMPASS II Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1207 Screw 5/16-18 x 2 1/2 hex head stainless steel $2.42 11 ships same day
2 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 11 ships same day
3 173-5688 Tank mount bracket $27.28 1 usually ships 1-5 days
4 173-8584 Tank lid (OBSOLETE) $133.10 1 usually ships 7-19 days
5 999-1141 Screw 8 x 3/4 pan head phillips zinc plated $0.99 6 ships same day
6 173-8585 Tank lid gasket $13.64 1 usually ships 7-19 days
7 173-5689 Stand pipe assembly $203.50 1 usually ships 7-19 days
8 173-5336 Float cage assembly $44.33 1 usually ships 9-15 days
9 173-1079 Hose clamp (OBSOLETE) $2.06 1 usually ships 7-19 days
10 173-5690 Recovery tank $782.10 1 usually ships 1-5 days
11 173-5691 Nut 1/2 nickel plated thread plastic $15.29 1 usually ships 1-5 days
12 173-5692 Utility mounting bracket $78.65 1 usually ships 1-5 days
13 173-5693 90 degree hosebarb 1/2 MPT x 3/4 $10.84 1 usually ships 1-5 days
14 173-5309 Drain hose with plug $125.40 1 usually ships 16-25 days
15 997-2007 Hose clamp $2.07 1 ships same day
16 173-5660 Clear hose 3/4 ID x 30 inch $19.58 1 usually ships 7-19 days
N/S 173-9162 Stainless steel bead chain #10 x 10 inch $25.08 1 usually ships 7-19 days
N/S 173-6099 Screw 6 x 1/2 sheet metal stainless steel $1.40 1 usually ships 7-19 days
N/S 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 1 ships same day
