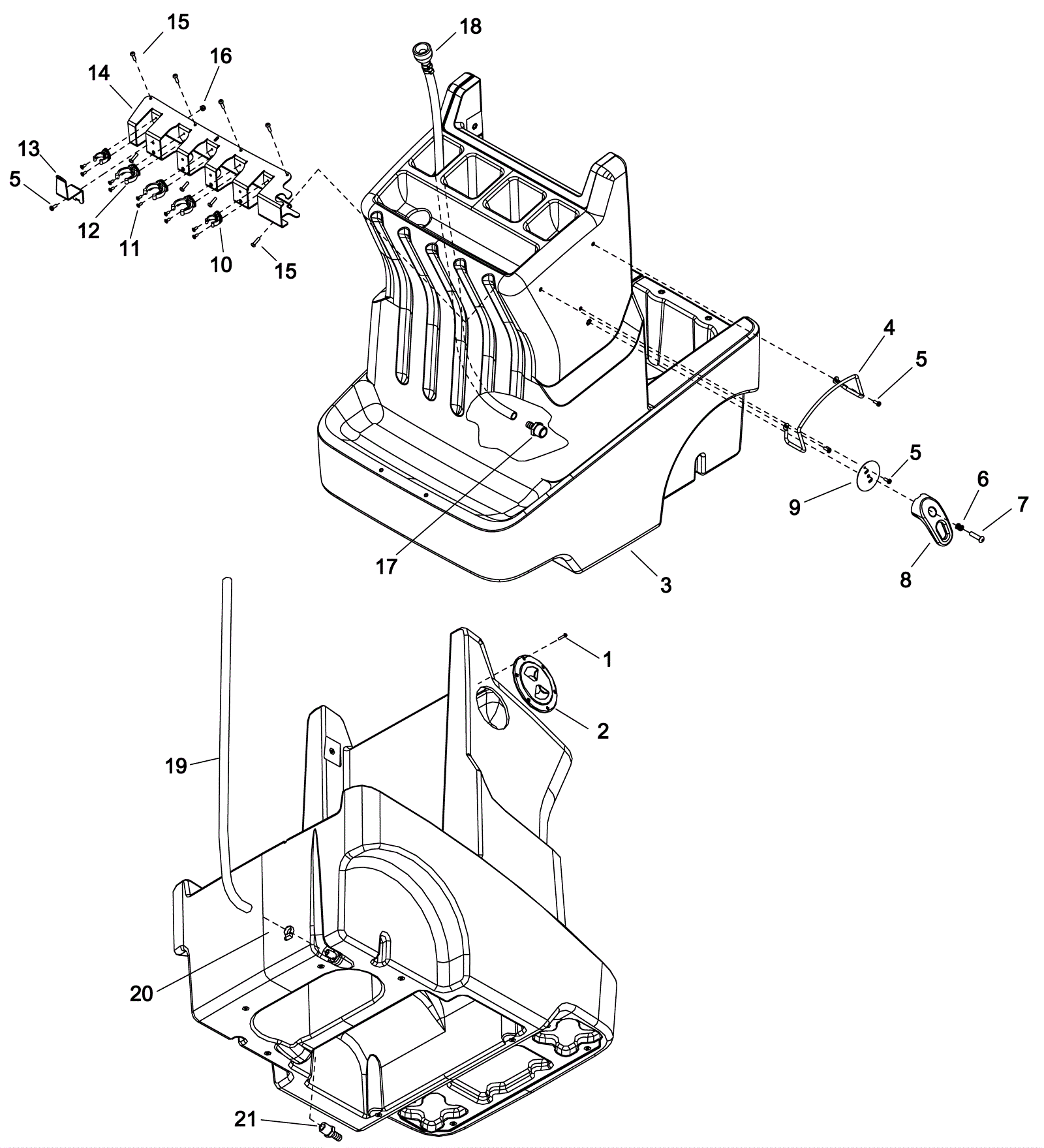

COMPASS II Solution Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1141 Screw 8 x 3/4 pan head phillips zinc plated $0.99 6 ships same day
2a 173-8611 Tank cover (OBSOLETE) $21.12 1 (model CMPS2 before SN 10070560000748) (model CMPS2E before SN 10070570000033) usually ships 7-19 days
2b 273-6525 Tank cover $84.16 1 (model CMPS2 after SN 10070560000747) (model CMPS2E after SN 10070570000032) usually ships 7-19 days
3 173-5654 Solution tank $906.40 1 usually ships 7-19 days
4 173-5655 Hose storage hook $50.05 1 ships same day
5 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated $0.99 4 ships same day
6 273-5640 Compression spring $3.96 1 usually ships 7-19 days
7 173-3967 Bolt 5/16-18 x 1 1/2 shoulder cap $7.92 1 usually ships 7-19 days
8 273-5652 Upper cord hook $35.20 1 usually ships 7-19 days
9 173-5656 Cord hook detention plate $47.85 1 usually ships 7-19 days
10 173-5657 5/8 inch plastic clip $12.76 2 usually ships 1-5 days
11 173-5662 Screw 8-32 x 7/16 flat head thread cutting phillips $0.59 10 ships same day
12 173-9990 Clip $29.81 3 usually ships 7-19 days
13 173-5658 Tool holder hose hook $30.47 1 usually ships 7-19 days
14 173-5659 Tool holder $102.85 1 usually ships 1-5 days
15 173-2807 Screw 10-32 x 3/4 pan head phillips hi-lo $1.87 8 usually ships 7-19 days
16 999-0086 Nut 10-32 nylon insert lock zinc plated $0.99 1 ships same day
17 173-2247 Hosebarb 1/2 x 3/8 inch $8.47 1 usually ships 7-19 days
18 173-2246 Fill hose assembly $133.10 1 usually ships 7-19 days
19 173-5660 Clear hose 3/4 ID x 30 inch $19.58 1 Solution drain hose usually ships 7-19 days
20 173-5661 Hose clamp $10.45 1 usually ships 1-5 days
21 173-3396 Hosebarb $7.92 1 usually ships 7-19 days
