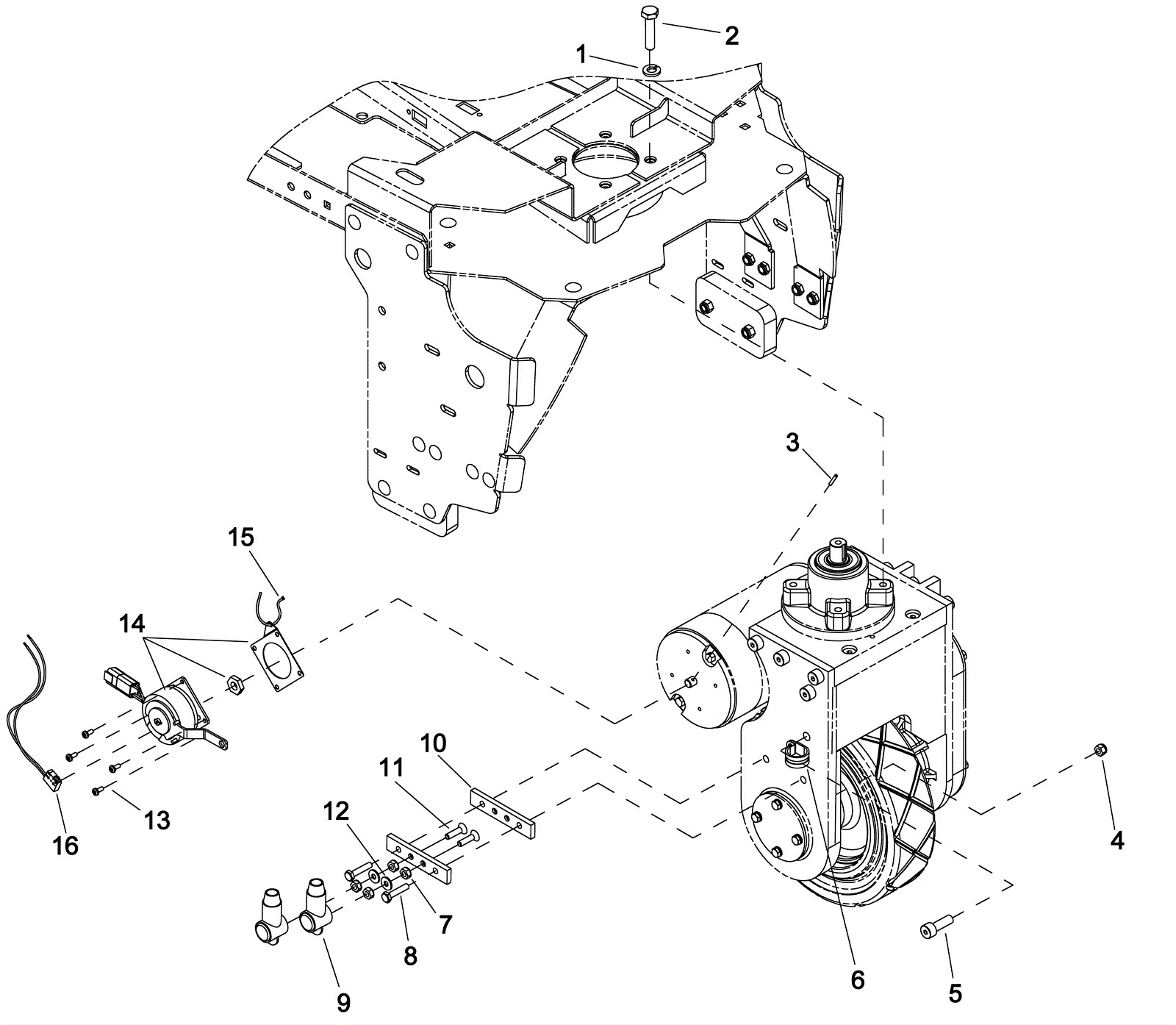

CHARIOT IGLOSS 20 Front Wheel Brake Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
2 999-0039 Bolt 3/8-16 x 1 1/4 hex head grade 5 zinc plated $0.99 4 ships same day
3 173-2019 Roll pin $0.99 1 usually ships 1-5 days
4 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
5 999-1302 Screw M10-1.5 x 30mm hex head $1.38 1 ships same day
6 173-3112 P clamp $9.74 1 usually ships 7-19 days
7 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 4 ships same day
8 999-0506 Bolt 1/4-20 x 1 1/2 hex head stainless steel $1.28 2 ships same day
9 173-3311 Insulated rubber terminal boot $3.70 2 usually ships 7-19 days
10 173-5584 Terminal mount $33.77 2 usually ships 1-5 days
11 999-1345 Screw 1/4-20 x 1 flat head phillips stainless steel $0.99 2 ships same day
12 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
13 173-5585 Screw 8-32 x 3/8 socket head stainless steel $1.52 4 usually ships 7-19 days
14 173-8594 36V brake with connector $507.10 1 usually ships 7-19 days
15 173-0822 Wire tie $0.99 1 usually ships 7-19 days
16 273-5989 36V brake switch (OBSOLETE) $27.06 1 usually ships 7-19 days
