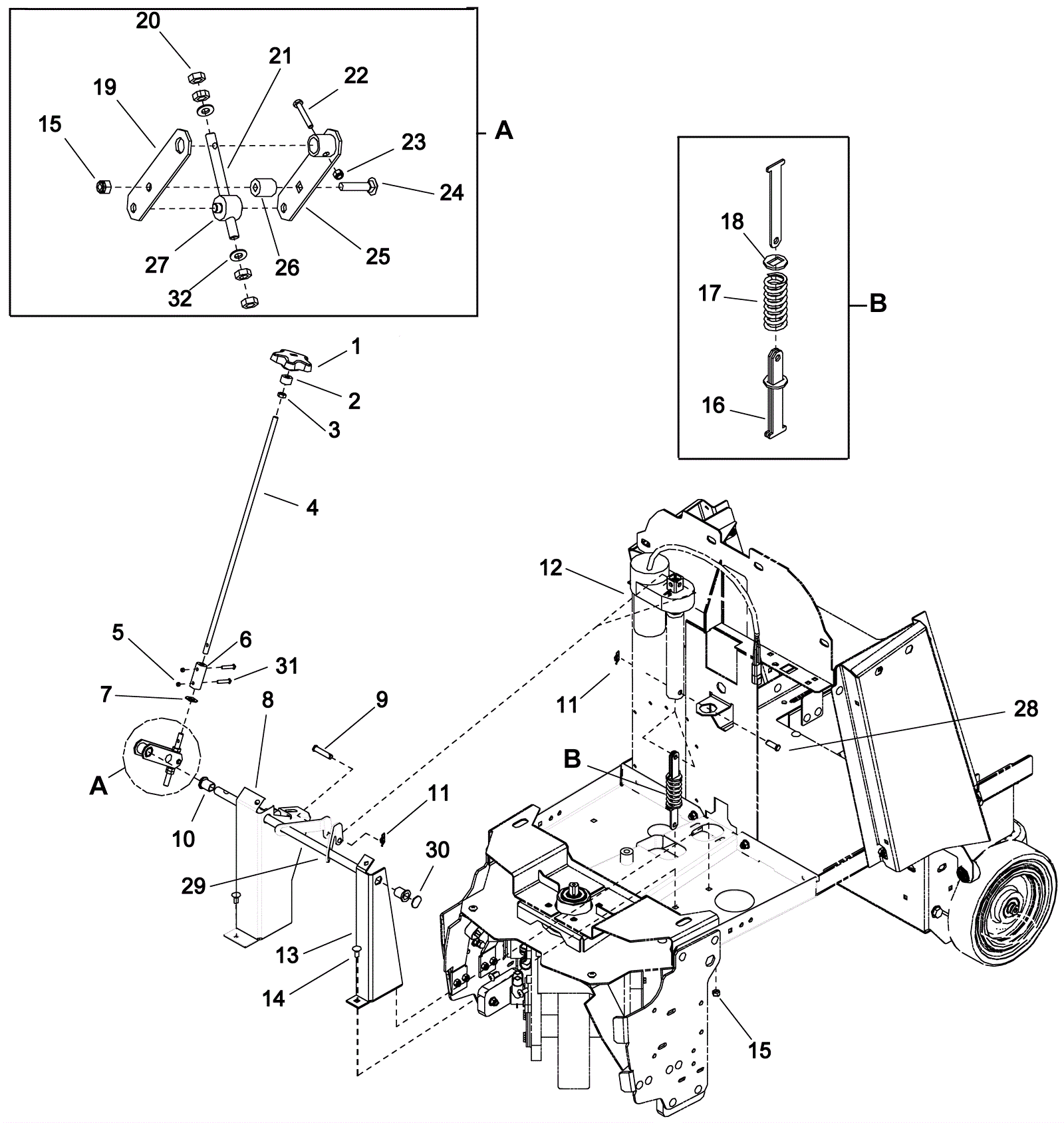

CHARIOT IGLOSS 20 Deck Lift Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-1661 Knob $37.18 1 usually ships 1-5 days
2 173-1611 Spacer $35.20 1 usually ships 1-5 days
3 999-0247 Nut 3/8-16 hex jam plain finish $0.99 1 ships same day
4 173-5537 Adjustment shaft $105.05 1 usually ships 1-5 days
5 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
6 173-5538 Pad adjustment coupler $119.90 1 usually ships 1-5 days
7 173-3964 Thrust washer $6.44 1 ships same day
8 173-5539 Right arm support bracket $70.52 1 usually ships 1-5 days
9 173-1106 Terminal boot $3.19 1 usually ships 1-5 days
10 173-5134 Flanged bushing $11.88 2 usually ships 1-5 days
11 173-1593 Cotter ring (OBSOLETE) $0.99 1 usually ships 7-19 days
12 173-5540 36V double speed actuator $797.50 1 usually ships 7-19 days
13 173-5541 Left arm support bracket $55.55 1 usually ships 1-5 days
14 999-0967 Bolt 5/16-18 x 3/4 carriage head stainless steel $2.16 2 ships same day
15 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 5 ships same day
16 173-5542 Spring retainer bar $14.74 3 usually ships 1-5 days
17 173-9106 Spring $41.30 1 usually ships 7-19 days
18 173-5543 Washer $10.84 2 usually ships 1-5 days
19 173-5544 Adjustment rod plate $16.50 1 usually ships 1-5 days
20 173-5545 Nut 3/8-24 hex thin stainless steel $8.03 4 usually ships 7-19 days
21 173-5546 Adjustment shaft $199.10 1 usually ships 7-19 days
22 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 1 ships same day
23 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
24 173-5464 Screw 5/16-18 x 1 1/2 carriage head stainless steel $5.08 1 usually ships 1-5 days
25 173-5547 Adjustment arm bracket $67.10 1 usually ships 1-5 days
26 173-9238 Spacer $2.97 1 usually ships 1-5 days
27 173-5548 Pad adjustment pivot $96.80 1 usually ships 1-5 days
28 173-1106 Terminal boot $3.19 1 usually ships 1-5 days
29 173-5549 Actuator control arm link $109.75 1 usually ships 1-5 days
30 173-2064 Axle cap $4.95 1 usually ships 7-19 days
31 999-0359 Screw 10-32 x 1 1/4 pan head phillips zinc plated $0.99 2 ships same day
32 999-1007 Washer 3/8 x 1/16 flat nylon $0.99 2 ships same day
