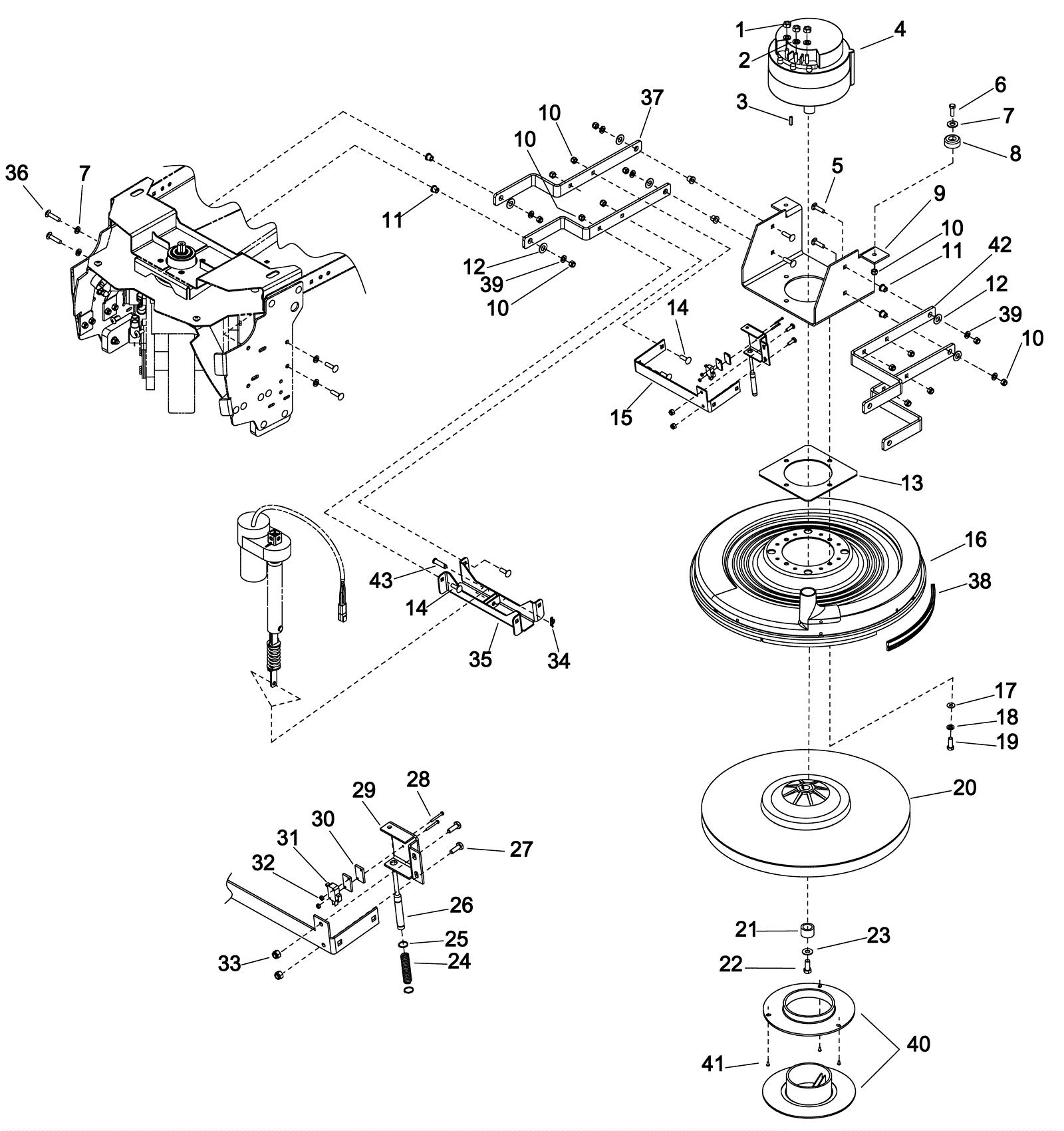

CHARIOT IGLOSS 20 Deck Lift Mechanism Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
2 999-0028 Washer 5/16 split lock plain finish $0.99 3 ships same day
3 173-9111 Square keyway $5.03 1 usually ships 7-19 days
4a 173-5524 36V 4HP 2000RPM motor $1,705.00 1 (before SN 10020080000651, see 4b and 4c for retro fit kit options) usually ships 7-19 days
4b 273-2029 Motor retro fit kit $1,418.85 (before SN 10020080000118) usually ships 1-5 days
4c 273-6744 Motor retro fit kit $2,865.50 (between SN 10020080000118 and 10020080000650) usually ships 7-19 days
4d 273-1133 36V 2600RPM motor $2,601.50 1 (after SN 10020080000649) usually ships 1-5 days
4e 273-6604 Motor brush set $371.44 (for motor 4d) usually ships 7-19 days
5 999-0919 Bolt 5/16-18 x 1 1/4 carriage head stainless steel $1.39 4 ships same day
6 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 2 ships same day
7 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
8 173-3703 Rubber bumper $18.04 2 usually ships 1-5 days
9 173-5526 Motor mount bracket $157.30 1 usually ships 1-5 days
10 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 14 ships same day
11 173-3116 Flanged bearing $8.47 8 usually ships 7-19 days
12 173-3963 Washer 1/2 thrust $7.32 8 usually ships 7-19 days
13 173-5572 Motor spacer plate $30.47 1 usually ships 1-5 days
14 999-0252 Screw 5/16-18 x 1 carriage head grade 5 zinc $0.99 8 ships same day
15 173-5528 Switch mount bracket (OBSOLETE) $46.20 1 usually ships 7-19 days
16 173-5529 20 inch burnisher shroud $236.50 1 (includes 38) usually ships 7-19 days
17 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
18 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
19 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 4 ships same day
20a 173-8637 Pad driver assembly $390.58 1 (includes 40 and 41) usually ships 7-19 days
20b 273-2033 Metal ring $29.48 1 usually ships 7-19 days
20c 273-2034 Spacer (OBSOLETE) $50.60 1 usually ships 7-19 days
21 173-5530 Burnisher hub spacer (OBSOLETE) $62.70 1 usually ships 7-19 days
23 999-0187 Washer 1/2 flat plain finish $0.99 1 ships same day
24 189-0353 Compression spring $15.65 1 usually ships 7-19 days
25 173-0494 Retaining clip $0.99 2 usually ships 1-5 days
26 173-5532 Micro switch plunger $8.44 1 usually ships 1-5 days
27 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 2 ships same day
28 999-0983 Screw 4-40 x 1 pan head phillips zinc plated $0.99 2 ships same day
29 173-0491 Micro switch mounting bracket $30.25 1 usually ships 1-5 days
30 173-0492 Spacer $6.01 2 usually ships 1-5 days
31 173-2332 Mini roller switch $50.05 1 usually ships 7-19 days
32 173-2579 Nut 4-40 hex star lock $0.99 2 usually ships 1-5 days
33 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
34 173-1593 Cotter ring (OBSOLETE) $0.99 2 usually ships 7-19 days
35 173-5534 Head attachment bracket $86.35 1 usually ships 1-5 days
36 999-0688 Bolt 5/16-18 x 1 1/4 hex head stainless steel $0.99 4 ships same day
37 173-5535 Right hand head attachment bracket $42.46 2 usually ships 1-5 days
38 173-2799 Bristle strip (pkg of 6) $99.01 1 usually ships 7-19 days
39 999-1094 Washer 5/16 bonded sealing stainless steel $0.99 8 ships same day
40a 991-2202 Big mouth pad holder set (blue) $14.20 1 usually ships 6-18 days
40b 991-2201 Center-Lok II pad holder - right hand thread (black) $22.90 1 (NON-OEM) ships same day
40c 991-2205 Deep lock ring and pad grip ring $21.53 1 (NON-OEM) ships same day
40d 991-2214 Center-Lok II pad holder - left hand thread (red) $17.35 1 (NON-OEM) ships same day
41 173-5434 Screw 8-32 x 1/2 pan head phillips stainless steel $1.32 1 usually ships 8-14 days
42 173-5536 Left hand head attachment bracket $73.15 2 usually ships 1-5 days
43 173-1106 Terminal boot $3.19 2 usually ships 1-5 days
