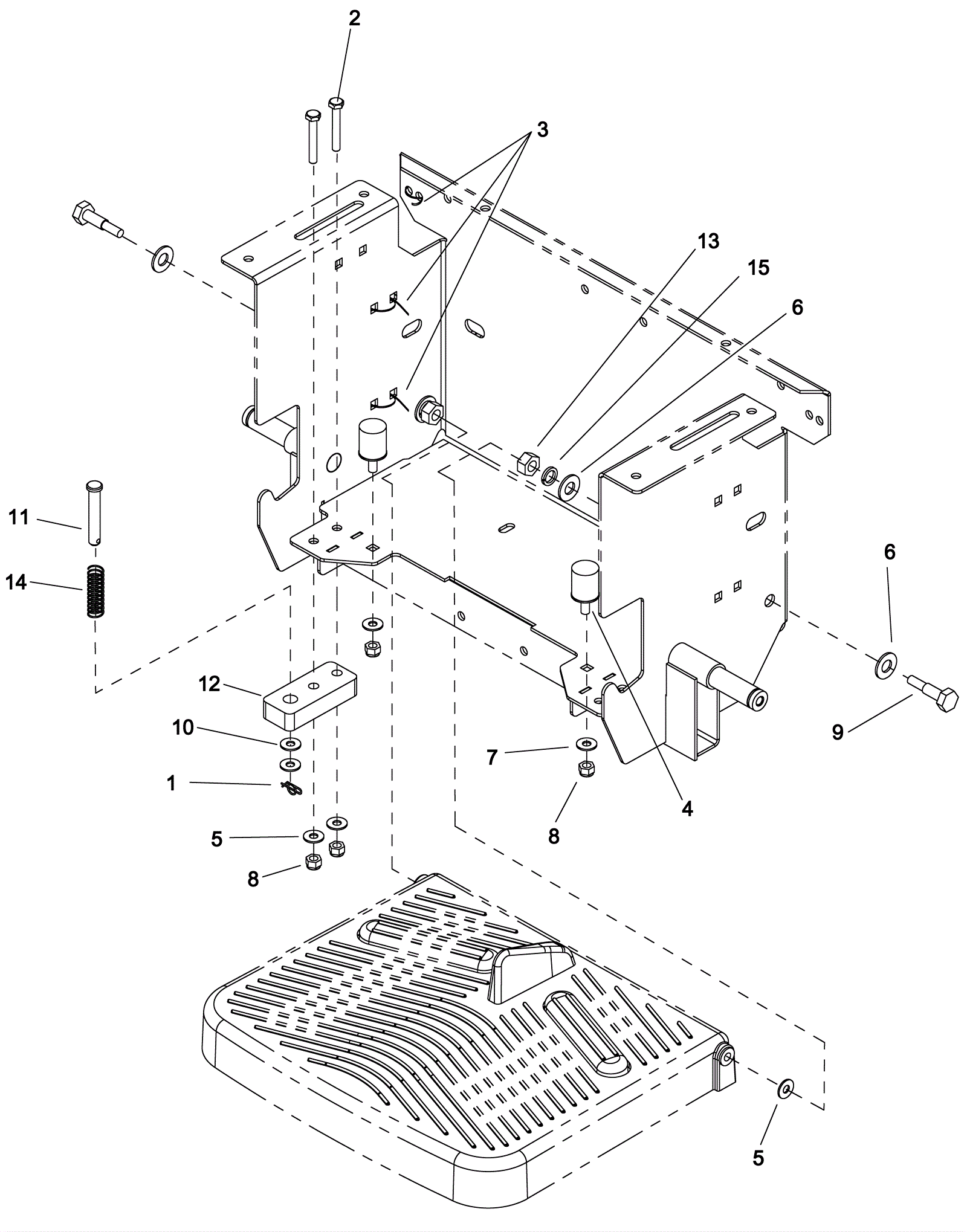

CHARIOT IGLOSS 20 Pedal Platform Assembly - External

#PartDescriptionPriceReqNotesAvailability
1 173-5508 Cotter pin (OBSOLETE) $5.57 1 usually ships 7-19 days
2 999-0591 Bolt 5/16-18 x 1 1/2 hex full thread grade 5 zinc plated $0.99 2 ships same day
3 173-3169 Wire tie $1.03 3 usually ships 1-5 days
4 173-5509 Rubber bumper $41.80 2 usually ships 1-5 days
5 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 5 ships same day
6 999-1346 Washer M12 flat stainless steel $0.99 4 ships same day
7 999-1416 Washer 7/16 flat stainless steel $0.99 2 ships same day
8 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 5 ships same day
9 173-5511 Stub axle $26.18 2 usually ships 1-5 days
10 999-0566 Washer 1/2 flat nylon $0.99 2 ships same day
11 173-5516 Clevis pin (OBSOLETE) $14.74 1 usually ships 7-19 days
12 173-5512 Base plate (OBSOLETE) $43.56 1 usually ships 7-19 days
13 173-3878 Nut M12 x 1.75 hex $3.58 2 usually ships 1-5 days
14 189-0353 Compression spring $15.65 1 usually ships 7-19 days
15 173-5515 Washer M12 spring lock $1.21 2 usually ships 1-5 days
