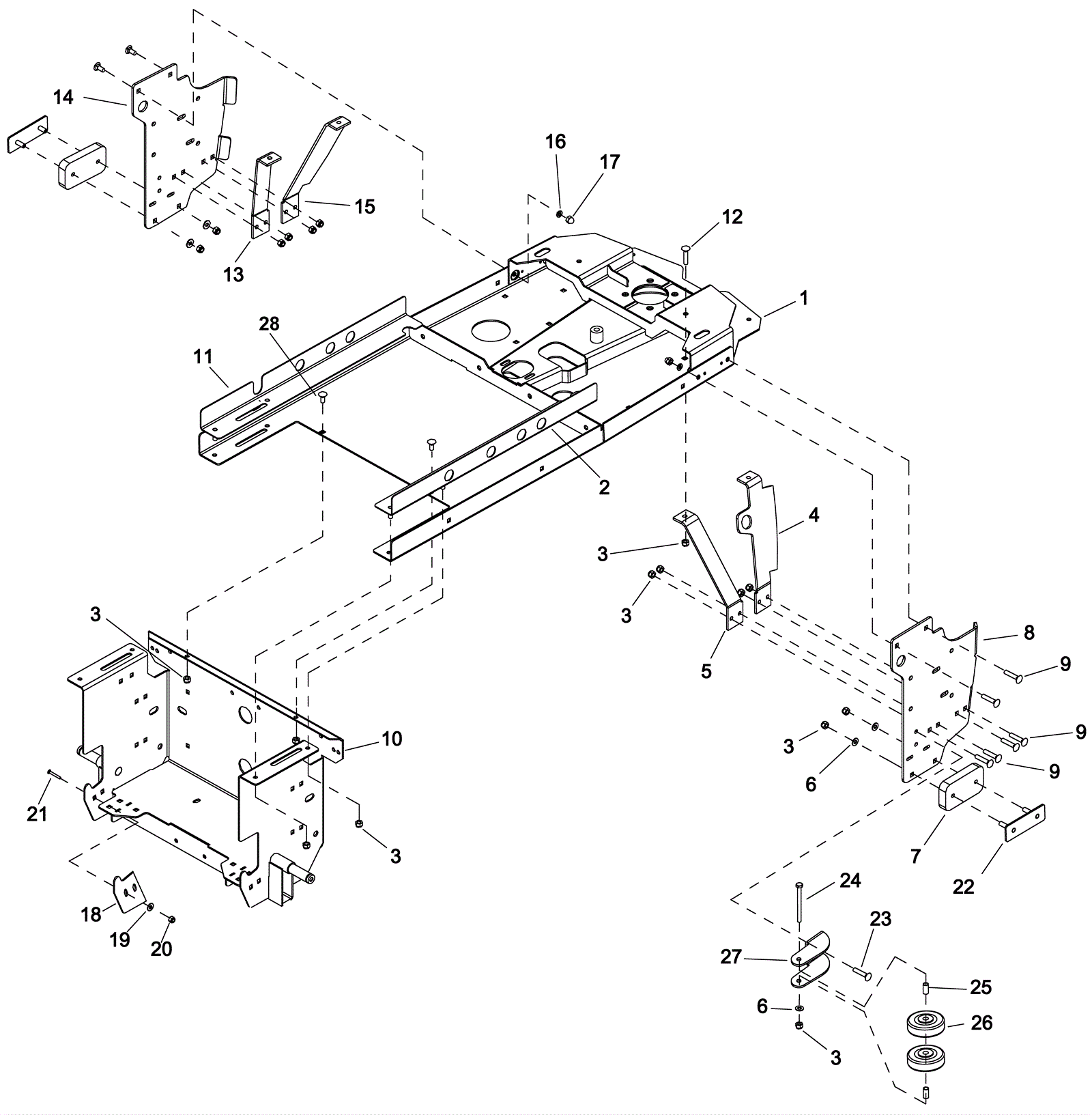

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
173-5456
|
Main frame weldment |
$948.20
|
1 |
|
usually ships 1-5 days |
2 |
173-6037
|
Left hand slide tray |
$139.70
|
1 |
|
usually ships 1-5 days |
3 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
$0.99
|
21 |
|
ships same day |
4 |
173-5458
|
Right hand front brace bracket |
$63.80
|
1 |
|
usually ships 1-5 days |
5 |
173-5459
|
Right hand rear bracket |
$62.70
|
1 |
|
usually ships 1-5 days |
6 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
5 |
|
ships same day |
7 |
173-5460
|
Tipping bar pad |
$64.35
|
2 |
|
usually ships 7-19 days |
8 |
173-5461
|
Right hand linkage bracket |
$117.70
|
1 |
|
usually ships 1-5 days |
9 |
999-0967
|
Bolt 5/16-18 x 3/4 carriage head stainless steel |
$2.16
|
16 |
|
ships same day |
10 |
173-5462
|
Rear axle weldment |
$656.70
|
1 |
|
usually ships 1-5 days |
11 |
173-5463
|
Right hand slide tray |
$139.70
|
1 |
|
usually ships 1-5 days |
12 |
173-5464
|
Screw 5/16-18 x 1 1/2 carriage head stainless steel |
$5.08
|
6 |
|
usually ships 1-5 days |
13 |
173-5465
|
Left hand rear bracket |
$62.70
|
1 |
|
usually ships 1-5 days |
14 |
173-5466
|
Left hand linkage bracket |
$117.70
|
1 |
|
usually ships 1-5 days |
15 |
173-5467
|
Left hand front brace bracket |
$66.55
|
1 |
|
usually ships 1-5 days |
16 |
999-0028
|
Washer 5/16 split lock plain finish |
$0.99
|
4 |
|
ships same day |
17 |
999-1458
|
Nut 5/16-18 acorn nickel plated |
$0.99
|
4 |
|
ships same day |
18 |
173-5468
|
Plate |
$16.61
|
2 |
|
usually ships 1-5 days |
19 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
$0.99
|
4 |
|
ships same day |
20 |
999-0304
|
Nut 1/4-20 nylon lock jam stainless steel |
$0.99
|
4 |
|
ships same day |
21 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
$3.85
|
4 |
|
ships same day |
22 |
173-7193
|
Pad retainer plate |
$35.20
|
2 |
|
usually ships 1-5 days |
23 |
999-0252
|
Screw 5/16-18 x 1 carriage head grade 5 zinc |
$0.99
|
2 |
|
ships same day |
24 |
999-0911
|
Screw 5/16-18 x 3 hex head stainless steel |
$4.75
|
1 |
|
ships same day |
25 |
173-1634
|
Bushing |
$11.55
|
2 |
|
usually ships 7-19 days |
26a |
173-1630
|
3 inch rubber wheel |
$5.50
|
2 |
|
ships same day |
27 |
173-5470
|
Wheel mounting bracket |
$43.89
|
1 |
|
usually ships 1-5 days |
28 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
$1.25
|
2 |
|
ships same day |
