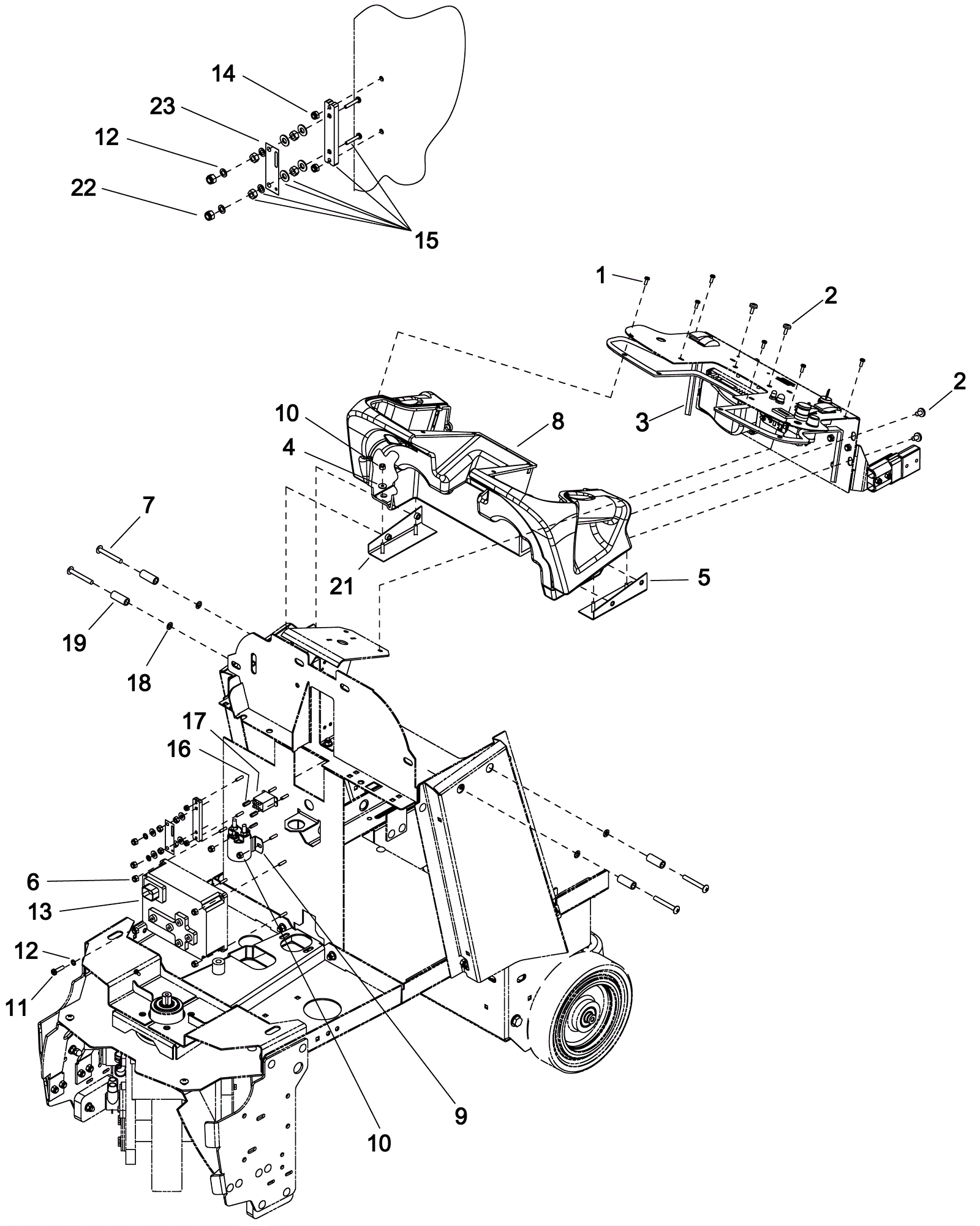

CHARIOT IGLOSS 20 Controls and Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 173-4649 Screw 10-32 x 1/2 torx stainless steel $2.12 6 usually ships 14-22 days
2 999-1342 Screw 5/16-18 x 1/2 truss head slotted zinc $0.99 2 ships same day
3 173-4650 Gasket $8.20 3 usually ships 1-5 days
4 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 4 ships same day
5 173-4651 Left hand console mounting bracket $53.68 1 usually ships 1-5 days
6 999-0151 Nut 8-32 nylon insert lock zinc plated $1.10 2 ships same day
7 999-1340 Screw 5/16-18 x 2 1/2 truss head stainless steel $2.90 4 usually ships 1-5 days
8 173-4653 Console $460.90 1 usually ships 1-5 days
9 991-1227 36V solenoid 4 post (2 large 2 small) $65.49 1 ships same day
10 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 6 ships same day
11 173-4729 Screw M6 x 14mm phillips head $1.03 5 usually ships 1-5 days
12 999-1049 Washer 1/4 split lock zinc plated $0.99 5 ships same day
13 273-5417 36V controller $1,870.00 1 usually ships 1-5 days
14 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 4 ships same day
15 173-4647 Shunt mounting block $29.59 1 usually ships 1-5 days
16 173-1520 Nylon standoff $6.66 2 ships same day
17 273-0032 Relay $71.50 1 usually ships 14-22 days
18 173-4733 Washer 5/16 retension pushnut $2.11 4 usually ships 1-5 days
19 173-4734 Spacer $29.48 4 usually ships 1-5 days
21 173-4735 Right hand console mounting bracket $53.68 1 usually ships 1-5 days
22 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 2 ships same day
23 173-0449 70amp 50MV shunt $136.40 1 usually ships 1-5 days
