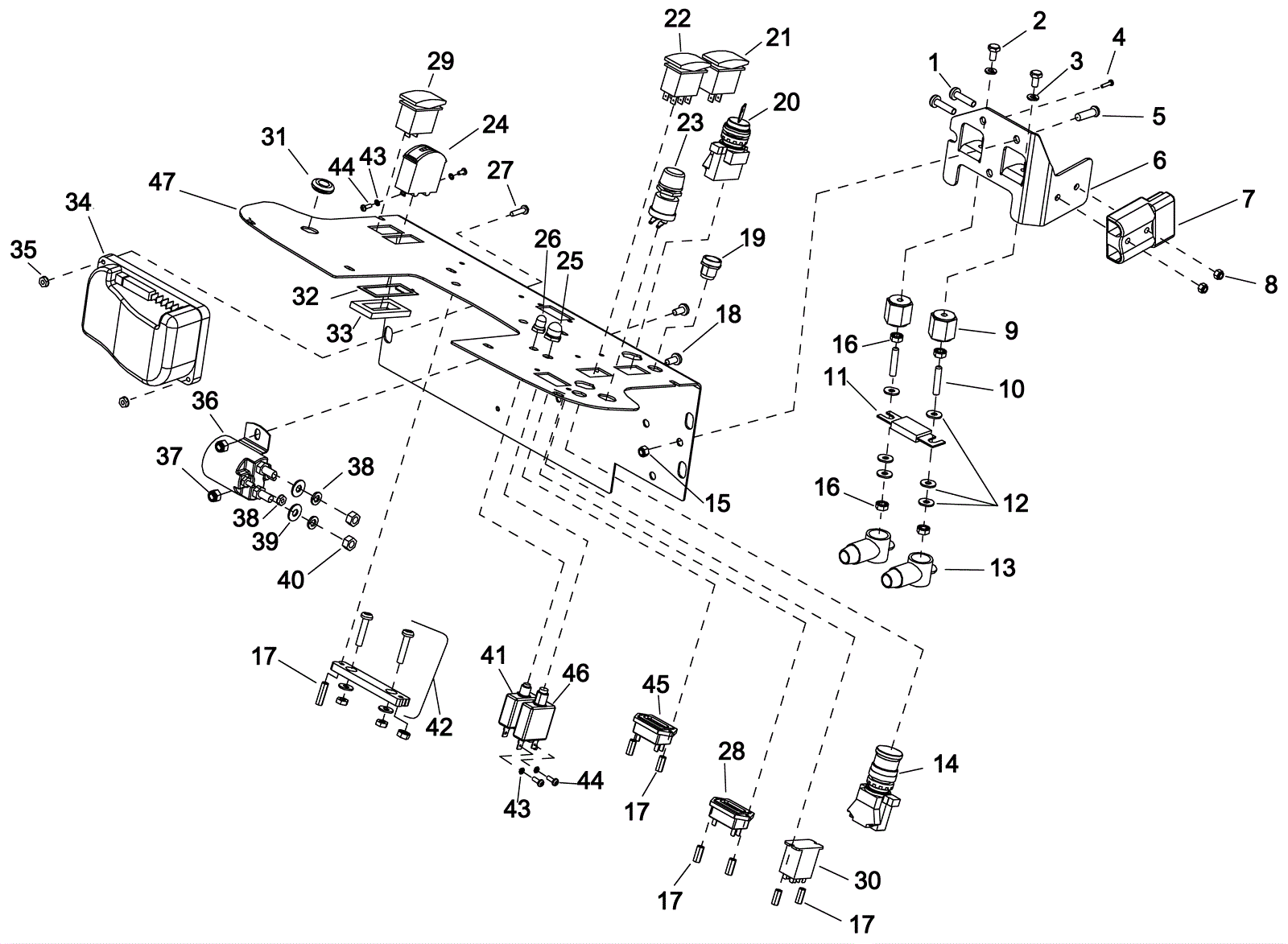

CHARIOT IGLOSS 20 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 2 ships same day
2 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 2 ships same day
3 999-1049 Washer 1/4 split lock zinc plated $0.99 2 ships same day
4 173-4637 Screw M5 x 15mm pan head phillips $0.99 2 usually ships 1-5 days
5 999-1342 Screw 5/16-18 x 1/2 truss head slotted zinc $0.99 3 ships same day
6 173-4638 Battery connector bracket $75.90 1 usually ships 1-5 days
7 991-2112 175amp charger plug with pins (gray) SB175 $12.87 1 ships same day
8 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
9 173-1145 Insulated stand-off $22.55 2 usually ships 7-19 days
10 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
11 173-4639 80amp fuse (OBSOLETE) $106.15 1 usually ships 7-19 days
12 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 ships same day
13 173-3311 Insulated rubber terminal boot $3.70 2 usually ships 7-19 days
14 173-1531 Emergency stop switch $292.60 1 usually ships 1-5 days
15 999-0423 Nut 5/16-18 nylon insert lock stainless steel $0.99 3 ships same day
16 999-1466 Nut 1/4-20 lock with external toothed lockwasher SS $0.99 4 ships same day
17 173-1520 Nylon standoff $6.66 8 ships same day
18 173-4640 Screw 1/4-20 x .59 pan head phillips stainless steel $2.66 2 usually ships 7-19 days
19 173-4641 Push button switch $97.90 1 usually ships 7-19 days
20a 173-8560 Master key switch $328.96 1 usually ships 7-19 days
20b 173-3958 Key (pkg of 2) $29.81 1 ships same day
21 189-0319 2 position rocker switch $59.42 1 usually ships 1-5 days
22 173-4642 Fixed position rocker switch (OBSOLETE) $157.30 1 usually ships 7-19 days
23 173-3502 Momentary switch $77.55 1 usually ships 7-19 days
24 173-4643 36V battery meter $123.20 1 usually ships 7-19 days
25a 173-1522 3/8 inch circuit breaker boot $25.30 1 (OEM) usually ships 7-19 days
25b 991-5157 3/8 inch circuit breaker boot $1.69 1 (NON-OEM) ships same day
26 189-0312 3/8 inch circuit breaker boot $59.75 1 usually ships 11-24 days
27 999-1044 Screw 10-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
28 173-4644 50amp meter $152.90 1 usually ships 7-19 days
29 173-2277 2 position rocker switch $27.45 1 ships same day
30 273-0032 Relay $71.50 1 usually ships 7-19 days
31 173-9761 Groove grommet (OBSOLETE) $6.22 1 usually ships 7-19 days
32 173-1164 Meter retaining plate $4.11 1 usually ships 1-5 days
33 173-4344 Meter gasket $9.41 1 usually ships 1-5 days
34a 273-0064 Drive controller $859.10 1 (Drive chain unit) usually ships 7-19 days
34b 173-4645 Drive controller $773.30 1 (Drive gear unit) usually ships 7-19 days
35 173-2472 Nut 10-32 with star washer $0.99 3 usually ships 1-5 days
36 991-1227 36V solenoid 4 post (2 large 2 small) $52.39 1 ships same day
37 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
38 999-0028 Washer 5/16 split lock plain finish $0.99 2 ships same day
39 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
40 173-5044 Nut 1/4-28 stop elastic $1.96 2 usually ships 1-5 days
41 991-1624 3amp circuit breaker $15.51 1 usually ships 3-12 days
42 173-4647 Shunt mounting block $29.59 1 usually ships 1-5 days
43 999-0051 Washer #6 medium split lock $0.99 4 ships same day
44 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel $0.99 4 ships same day
45 173-1160 LED hour meter $213.40 1 usually ships 7-19 days
46 991-1629 35amp circuit breaker $9.23 1 ships same day
47 173-4648 Control panel weldment $127.60 1 usually ships 1-5 days
